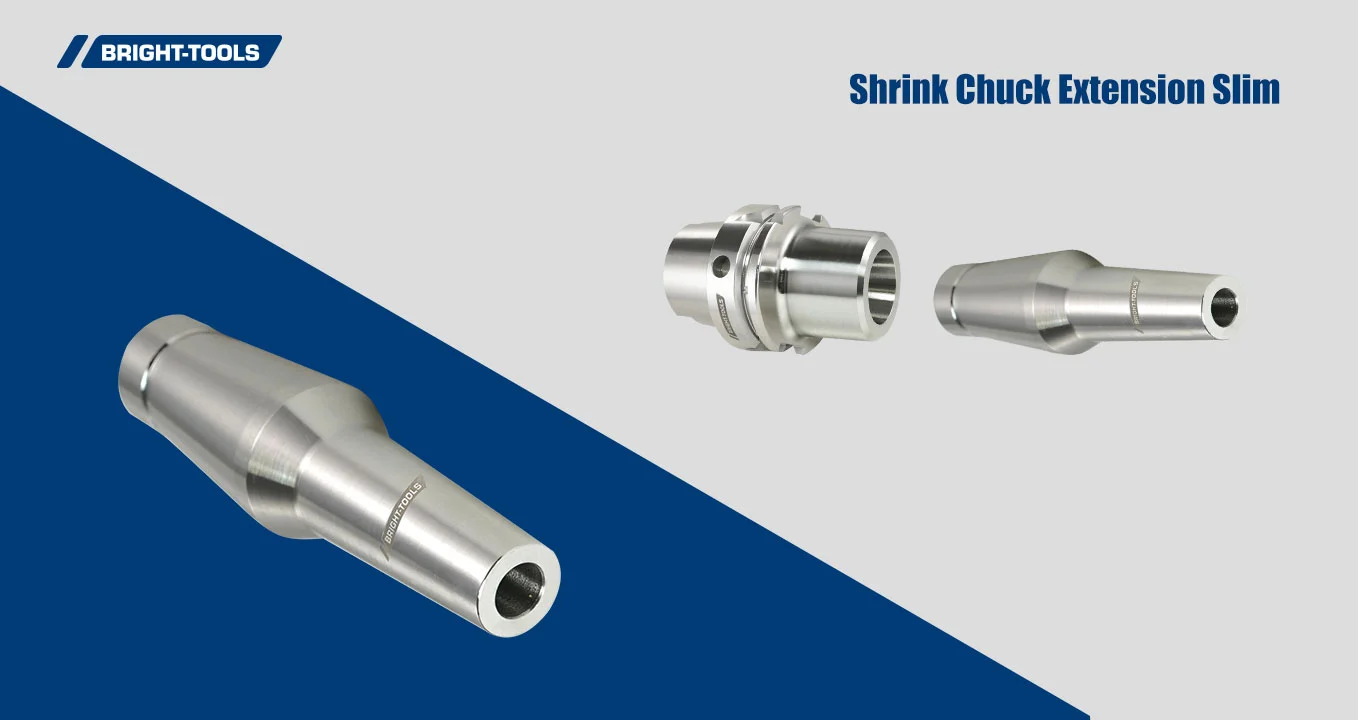

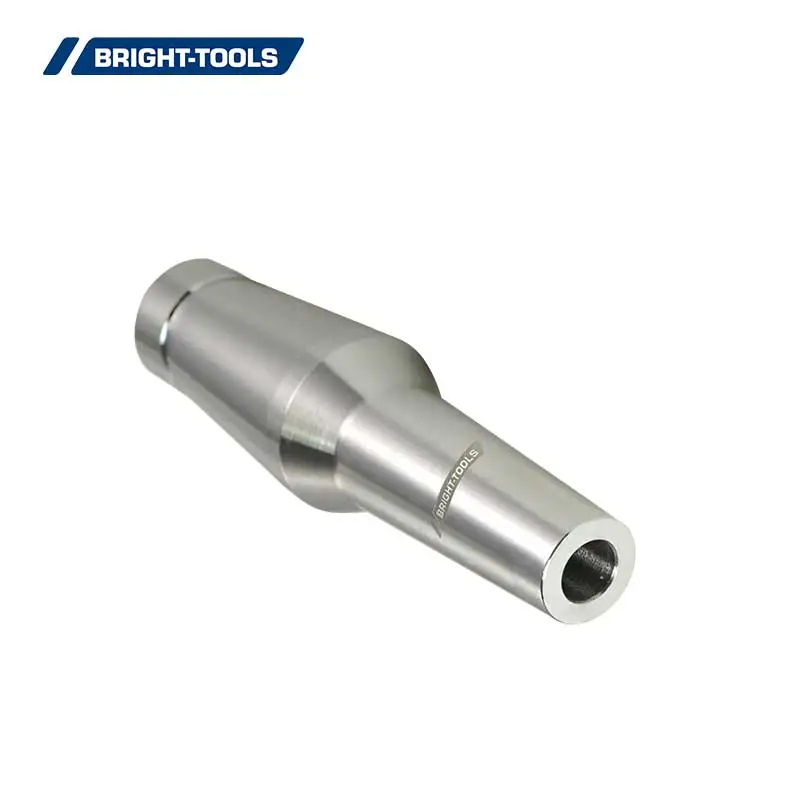

The Shrink Chuck Extension Slim is a tool used in machining processes. It is designed to extend the reach of a shrink fit chuck, allowing for machining in hard-to-reach areas. The slim design reduces any potential interference while maintaining the precision and stability needed for accurate cutting operations.

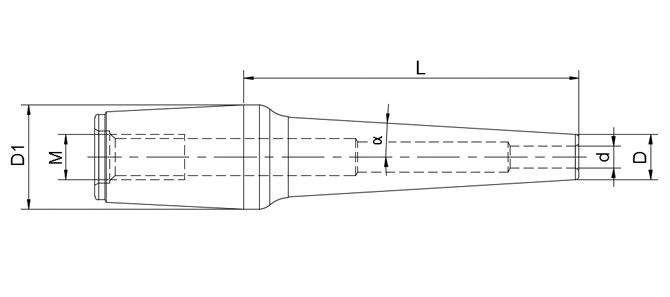

| Size | d | D | D1 | L | M | α |
| 6-SF3-30 | 3 | 7.5 | 14 | 30 | M6 | 4.5 |
| 6-SF3-45 | 3 | 7.5 | 14 | 45 | M6 | 3 |
| 6-SF4-30 | 4 | 10 | 14 | 30 | M6 | 3 |
| 6-SF4-45 | 4 | 10 | 14 | 45 | M6 | 2 |
| 6-SF6-30 | 6 | 12 | 14 | 30 | M6 | 1.5 |
| 6-SF6-45 | 6 | 12 | 14 | 45 | M6 | 1 |
| 8-SF3-45 | 3 | 7.5 | 18 | 45 | M6 | 4.5 |
| 8-SF3-65 | 3 | 7.5 | 18 | 65 | M6 | 3 |
| 8-SF4-45 | 4 | 10 | 18 | 45 | M6 | 3.5 |
| 8-SF4-65 | 4 | 10 | 18 | 65 | M6 | 2.5 |
| 8-SF6-45 | 6 | 12 | 18 | 45 | M6 | 3 |
| 8-SF6-65 | 6 | 12 | 18 | 65 | M6 | 2 |
| 8-SF8-45 | 8 | 14 | 18 | 45 | M6 | 1.8 |
| 12-SF3-35 | 3 | 7.5 | 26 | 35 | M10 | 3 |
| 12-SF3-55 | 3 | 7.5 | 26 | 55 | M10 | 3 |
| 12-SF3-80 | 3 | 7.5 | 26 | 80 | M10 | 3 |
| 12-SF4-35 | 4 | 10 | 26 | 35 | M10 | 3 |
| 12-SF4-55 | 4 | 10 | 26 | 55 | M10 | 3 |
| 12-SF4-80 | 4 | 10 | 26 | 80 | M10 | 3 |
| 12-SF6-35 | 6 | 12 | 26 | 35 | M10 | 3 |
| 12-SF6-55 | 6 | 12 | 26 | 55 | M10 | 3 |
| 12-SF6-80 | 6 | 12 | 26 | 80 | M10 | 3 |
| 12-SF8-35 | 8 | 14 | 26 | 35 | M10 | 3 |
| 12-SF8-55 | 8 | 14 | 26 | 55 | M10 | 3 |
| 12-SF8-80 | 8 | 14 | 26 | 80 | M10 | 3 |
| 12-SF10-35 | 10 | 16 | 26 | 35 | M10 | 3 |
| 12-SF10-55 | 10 | 16 | 26 | 55 | M10 | 3 |
| 12-SF10-80 | 10 | 16 | 26 | 80 | M10 | 3 |
| 12-SF12-35 | 12 | 20 | 26 | 35 | M10 | 3 |
| 12-SF12-55 | 12 | 20 | 26 | 55 | M10 | 3 |
| 12-SF12-80 | 12 | 20 | 26 | 80 | M10 | 3 |
