In the field of modern machining, the accuracy of CNC tool holders directly affects the quality and efficiency of machining. Choosing the right CNC tool holder is crucial for improving machining precision. Today, let's delve into the performance of different types of CNC tool holders in terms of accuracy, providing you with professional reference opinions for your selection.
The accuracy of CNC tool holders directly determines the runout amount of the tool, thereby affecting machining accuracy and surface quality. High-precision CNC tool holders not only improve machining accuracy but also extend tool life, reduce vibration and noise, and enhance machining efficiency. In precision machining fields, such as aerospace and medical devices, the accuracy requirements for CNC tool holders are extremely stringent, typically requiring runout accuracy to be controlled within 0.003mm.

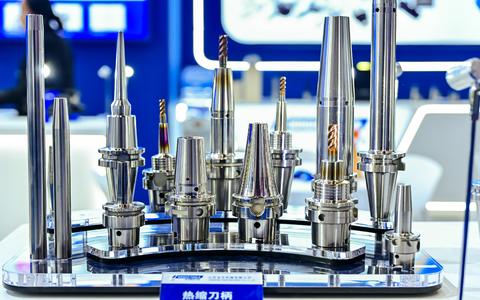

Among various types of CNC tool holders, heat shrink tool holders stand out with their excellent accuracy performance. Heat shrink tool holders utilize the principle of thermal expansion and contraction of metals. By heating the tool holder to expand it and then cooling it to tightly wrap around the tool, they achieve extremely high clamping accuracy and rigidity.
The runout accuracy of heat shrink tool holders can usually reach 0.003mm or better, far superior to traditional mechanical clamping methods.
Heat shrink tool holders exhibit outstanding coaxiality, ensuring tool stability during high-speed rotation.
Due to the absence of complex mechanical structures, heat shrink tool holders have excellent dynamic balance performance, making them suitable for high-speed machining.
Hydraulic holders are another high-precision option, achieving tool clamping through hydraulic principles. The accuracy of hydraulic holders is second only to heat shrink tool holders but offers greater versatility and convenience.
Hydraulic holders typically have a runout accuracy of around 0.005mm, which is superior to most mechanical clamping methods.
Hydraulic holders have excellent vibration damping properties, effectively reducing machining process vibration.
Compared to heat shrink tool holders, hydraulic holders offer easier tool changes, suitable for scenarios with frequent tool replacements.
Precision collets (ER collets) are a widely used type of CNC tool holder. Although their accuracy is slightly lower than heat shrink and hydraulic holders, precision collets remain significant in various machining scenarios due to their versatility and cost-effectiveness.
High-quality precision collets can achieve runout accuracy ranging from 0.008mm to 0.015mm.
Precision collets have a wide range of applications, capable of clamping tools of different diameters.
Compared to heat shrink and hydraulic holders, precision collets are more cost-effective, making them an ideal choice for small and medium-sized machining enterprises.
Integrated spindle tool holders are a new high-precision solution that combines the tool holder and the spindle into one unit. This design eliminates the interface between the traditional tool holder and the spindle, achieving extremely high precision and rigidity.
Integrated spindle tool holders can achieve runout accuracy of 0.001mm or better, making them one of the highest precision solutions available.
By eliminating additional interfaces, integrated spindle tool holders offer exceptional rigidity and stability.
This design is particularly suitable for high-speed, high-precision machining requirements, such as mold machining and precision part manufacturing.
Based on the above analysis, we can see that in terms of accuracy, heat shrink tool holders, hydraulic holders, and integrated spindle tool holders demonstrate excellent performance. However, choosing the most suitable CNC tool holder should not only consider accuracy but also the actual application scenarios, cost-effectiveness, and other factors comprehensively.
