In modern CNC turning, the choice of tool system is crucial, and the VDI tool holder according to German DIN69880 standard is widely used due to its excellent performance and flexibility. This article will explore in depth the composition, advantages, and applications of VDI tool holders in machining.
VDI Tool Holders are designed to meet the needs of efficient and precise machining. They mainly consist of parts such as the turret tool holder, clamping base, pre-adjustable quick-change tool holder, pre-adjustable tool holders, and tools. CNC lathes typically use vertical or horizontal turret tool holders with a tool magazine capacity typically ranging from 4 to 8 tools. This design not only has a simple structure but also allows for extremely fast tool changes, taking only 1 to 2 seconds, greatly improving machining efficiency.

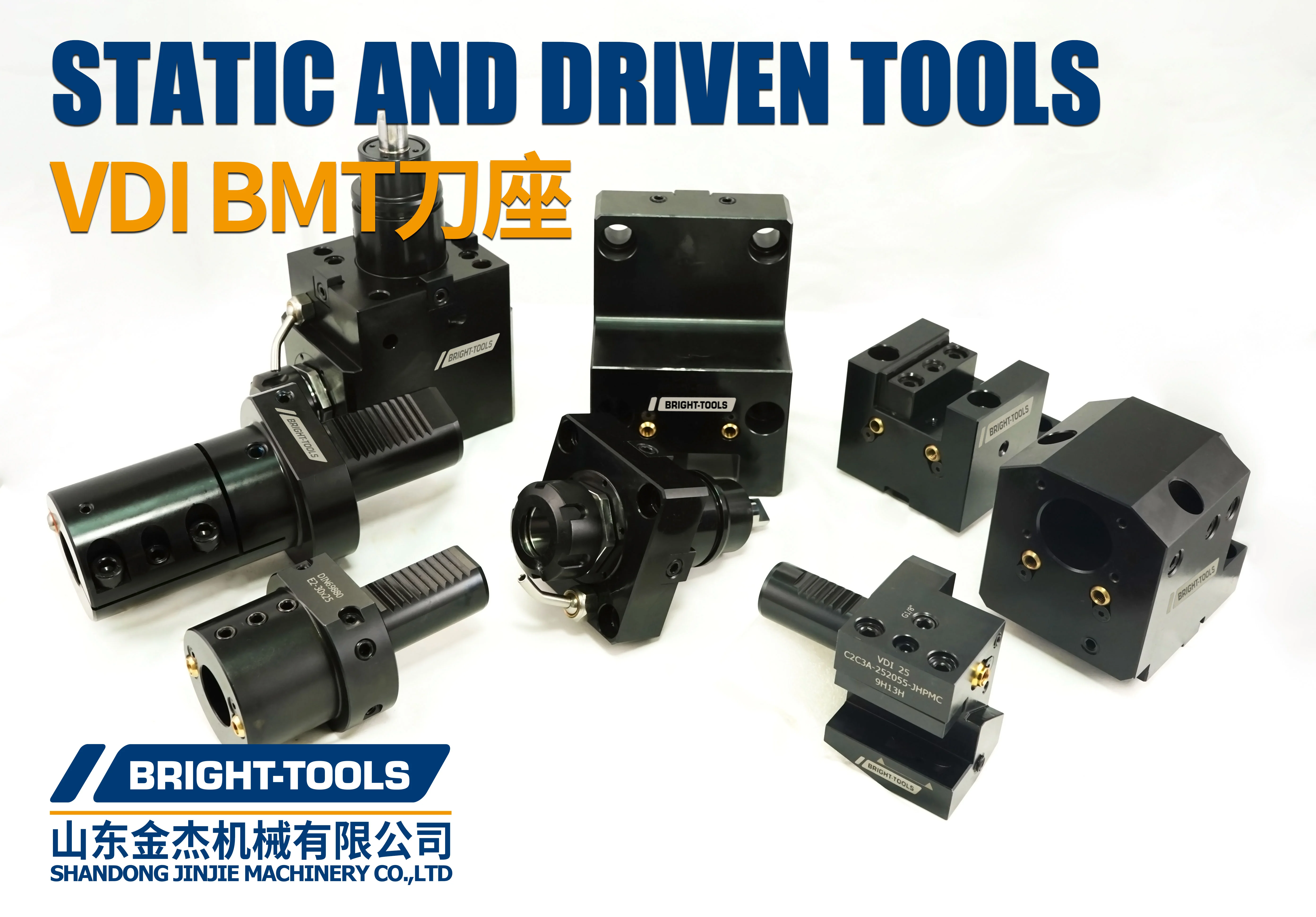

VDI Tool Holders come in various types, including fixed and powered tool holders, suitable for different machining scenarios. Fixed tool holders are suitable for high-precision fixed tools, while powered tool holders provide more flexible tool-changing capabilities to meet more complex machining requirements. This design ensures that VDI tool holders perform excellently in machining different types of parts.
VDI Tool Holders have many advantages that make them a popular choice in the CNC machining industry. First, the VDI interface undergoes special heat treatment and high-precision grinding to ensure clamping rigidity and repeat positioning accuracy. This high precision ensures that machined parts can meet strict tolerance requirements in terms of shape and size.
Secondly, the design of VDI tool holders saves space, making the layout of multi-station tool holders more reasonable. Due to the compact arrangement of the tools, the machine can achieve higher efficiency during operation. In addition, the fast tool-changing speed can significantly reduce downtime, improving production efficiency. For machining tasks that require frequent tool changes, VDI tool holders are undoubtedly the best choice.
In practical applications, the diversity and flexibility of VDI tool holders enable them to meet various machining needs. VDI tool holders can be classified into different types based on tool requirements, such as B-type (lateral tool holder), C-type (longitudinal tool holder), E-type (internal turning tool), etc. These different types of tool holders can be assembled with various turning tools to adapt to different machining processes.
During turning operations, the design of VDI tool holders ensures the stability and precision of the tool, especially suitable for face-mounted tool holders on disc tool racks. This design not only improves the efficiency of tool usage but also reduces machining errors caused by tool looseness.
In conclusion, VDI tool holders, with their superior design and high-efficiency performance, have become an indispensable tool system in CNC turning. By understanding the composition, advantages, and applications of VDI tool holders, engineers and technicians can make better choices and use the tool system more effectively to enhance overall machining efficiency and quality. In the increasingly competitive manufacturing industry, adopting VDI tool holders will help enterprises stand out in the market.
