In modern manufacturers, ER tool holders are widely used. The accuracy and stability are important about guarantee production efficiency and product quality
In the next, we will introduce the inspection method of ER run out from the perspective of right and wrong

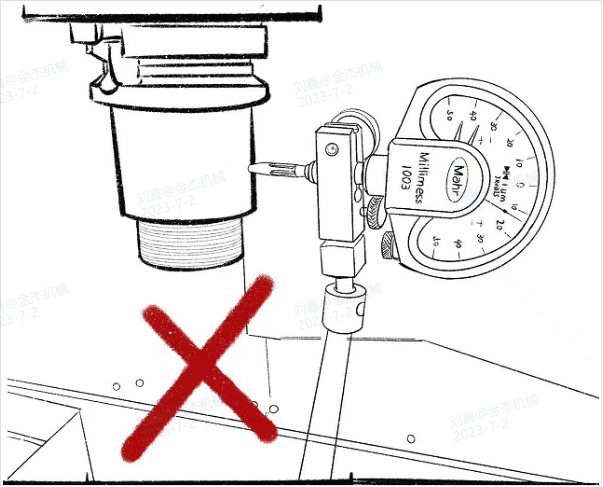

Although this detection method is simple and easy to implement, it cannot accurately reflect the real runout of the chuck. Because the outer circle runout of the tool holder does not affect the cutting accuracy of the tool, and in the production process, the outer circle of the tool holder does not need to be finely ground, so it is wrong to use the outer circle runout to judge the accuracy of a tool holder.

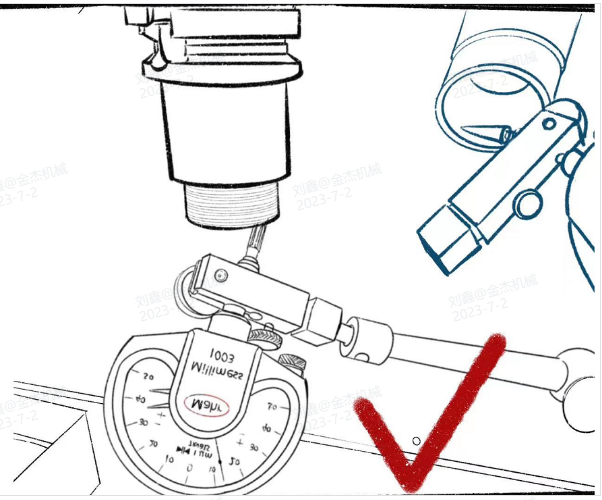

Because the inner hole of the tool holder is the part in direct contact with the collet and the tool, its runout directly affects the cutting accuracy of the tool. When testing, we should use a professional measuring instrument, insert the probe into the inner hole of the tool holder, and then read the measurement result. This can accurately reflect the beating situation of the tool holder body.

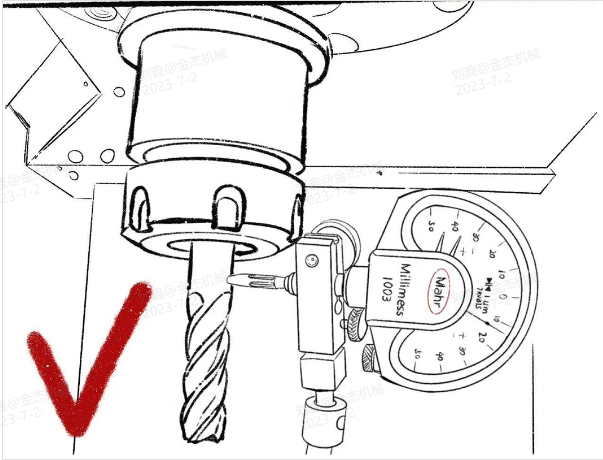

After the tool is loaded into the tool holder body, run out at the 3D-4D multiple diameter of the tool. This detection method can reflect the real working state of the combination of the tool holder and the tool, and is the most accurate detection method. When testing, we should put the tool into the tool holder, and then use the probe to measure at the 3D-4D multiple diameter of the tool, which can accurately reflect the tool holder
