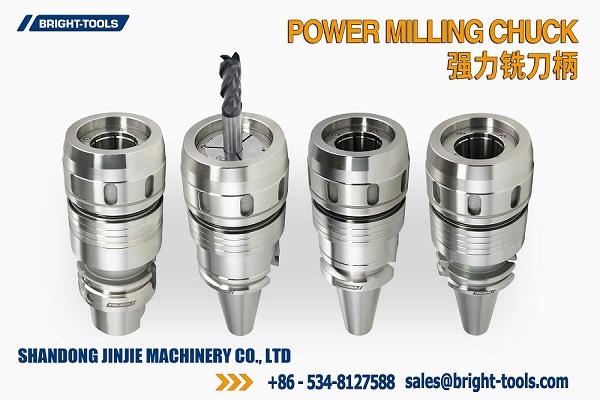

Power Milling Chuck plays a crucial role in modern machining, especially in high-precision and high-efficiency cutting operations. This article will delve into the working principle, characteristics, and advantages of the Power Milling Chuck in various applications.
The design of the Power Milling Chuck aims to provide stable and strong clamping force, with a very unique working principle. The combination of a small tapered cone at the front end of the collet and the spiral groove inside forms an efficient clamping mechanism. When the locking nut rotates, the small tapered cone interacts with the tilted needle bearings in the cage, generating axial movement to achieve enormous clamping force.
This clamping principle ensures the axial stability of the tool during the machining process, preventing accidental tool movement. This is crucial for high-precision milling operations.The clamping accuracy of a Power Milling Chuck is high, capable of accommodating different tool shank diameters, ensuring consistency and reliability during the machining process.
The Power Milling Chuck boasts several superior design features that make it perform excellently in machining:
Locking Nut
Similar to ER face locking nut.
Direct Tool Clamping
The collet can directly clamp the tool shank without the need for an intermediate tool clamp, maximizing clamping force.
Sealed Structure
The sealed design of the collet effectively prevents the intrusion of cutting fluids and debris, keeping the interior clean.
Prevent Axial Movement
Once clamped, the tool does not move axially, ensuring machining accuracy.
Withstands High Lateral Loads
The thick-walled design allows the Power Milling Chuck to withstand high lateral loads, adapting to complex machining conditions.
Due to its superior performance, the Power Milling Chuck is widely used in various milling applications. With minimal torque application on the locking nut, it can generate immense clamping force, making it particularly effective in high-torque transmission, high precision, and tight space requirements.
Rough Milling
In rough milling operations, the Power Milling Chuck can provide stable clamping force, meeting the high radial load requirements, and ensuring machining efficiency.
Finish Milling
In finish milling, its high clamping accuracy and good stability significantly enhance machining quality.
Complex Workpiece Machining
When dealing with complex workpieces, the Power Milling Chuck’s load-carrying capacity and stability make it an ideal choice.
Power Milling Chuck is suitable for holding end mills, offering uniform clamping force along the clamping length and can withstand high radial forces.
The spring collet holder has high precision but lower radial force tolerance compared to the Power Milling Chuck, making it suitable for holding drills, reamers, and taps.
The collet of the Power Milling Chuck has a fixed clamping diameter, while the spring collet holder offers flexible clamping diameters within a certain range.
