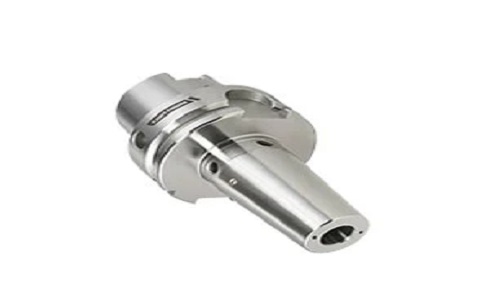

In the mold processing industry, tool selection is crucial for machining accuracy and efficiency. Heat shrink tool holder, as an advanced tool holding system, have gradually become the ideal choice for mold processing due to their high precision and efficiency. This article will delve into the application of heat shrink holders in mold processing, analyzing their unique advantages and selection considerations.
High Precision Machining
Heat shrink holders provide unparalleled holding precision, which is especially important for mold processing. Their design allows for a maximum runout error to be controlled within 3μm within three times the tool diameter. This high precision not only ensures machining consistency but also improves the final quality of the molds. Additionally, heat shrink holders can maintain extremely high repeatability under different operators, reducing the impact of human error.
Strong Clamping Capability
Heat shrink holders have a unique clamping method that uniformly clamps at 360°, significantly increasing clamping torque. This design effectively prevents tool displacement during rough or finish machining, thereby significantly reducing the scrap rate of workpieces. In mold processing, especially when dealing with complex geometries, strong clamping capability ensures tool stability and machining accuracy.
Efficient Tool Change Speed
In mold processing workshops, the time taken for tool changes directly affects production efficiency. Heat shrink holders can complete tool changes within 5 to 10 seconds, making the tool change process rapid and efficient with the help of an efficient induction heating device. This efficient tool change speed allows the machine to resume production in the shortest time, maximizing machining time and improving overall production efficiency.
Precision Mold Processing
In precision mold processing, heat shrink holders' high precision and strong clamping force ensure that every detail is perfectly presented. This is particularly important for manufacturing molds with complex profiles and high tolerance requirements. Their excellent balancing performance ensures stable cutting conditions during high-speed cutting, reducing tool wear and extending tool life.
Deep Cavity Machining
Heat shrink holders are also particularly suitable for machining deep cavities. Using extended heat shrink holders can effectively extend the tool's working range while ensuring minimal runout error. This feature makes heat shrink holders the ideal choice for machining complex mold cavities, improving machining efficiency while ensuring accuracy.
Application of Internal Cooling Method
Heat shrink holders also support internal cooling technology, which is crucial for high-precision drilling. By delivering coolant directly to the cutting edge, heat shrink holders can effectively remove chips and improve the surface finish of the machining. This design not only enhances machining quality but also extends tool life.
When selecting heat shrink holders, it is crucial to consider their manufacturing quality and materials. High-quality heat shrink holders should meet the German DIN standards to ensure clamping accuracy and durability. Additionally, the selection of suppliers is very important. It is recommended to choose professional manufacturers who specialize in tool holders to obtain more reliable products.
