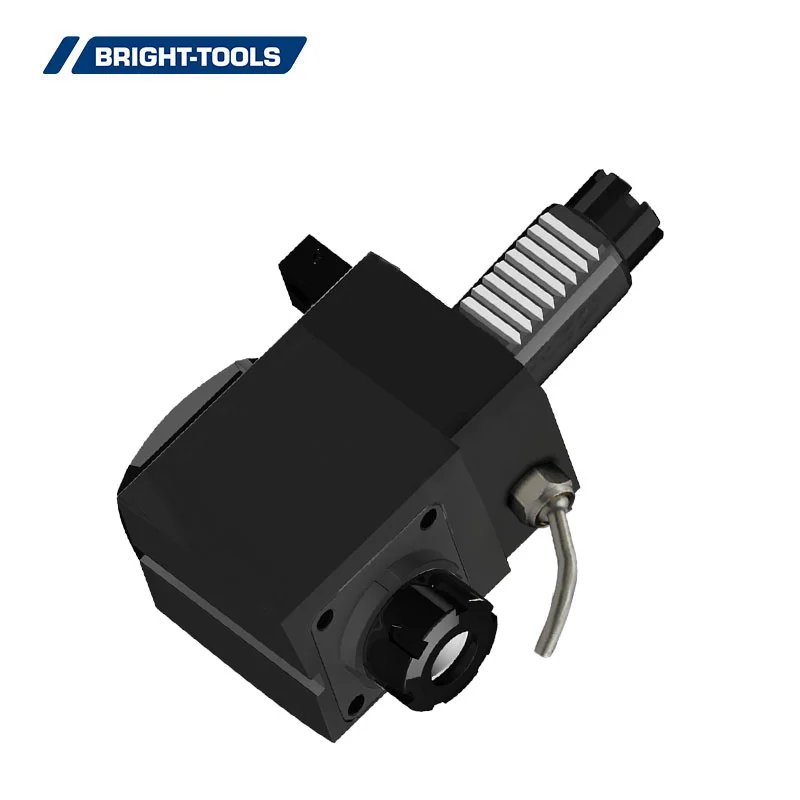

TOEM coupling for Baruffaldi turret VDI driven tool holders, is mainly used for drilling and milling operations for your lathe and lathe centers.
Tool Holder Norm: DIN 69880 VDI
Driven coupling: TOEM BARUFFALDI
Turret Size: VDI30 VDI 40
Direction: Radial 90 deg.
Output: ER25 ER32
Gear Ratio: 1:1
Max Speed: 6000 RPM
Coolant: external, internal can be made by request.

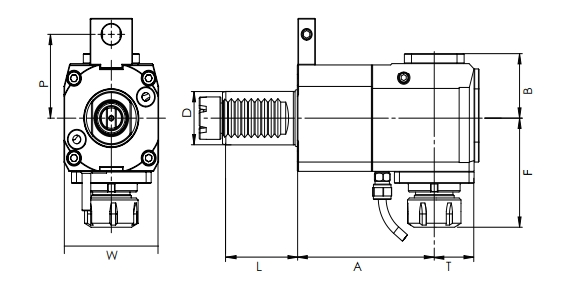

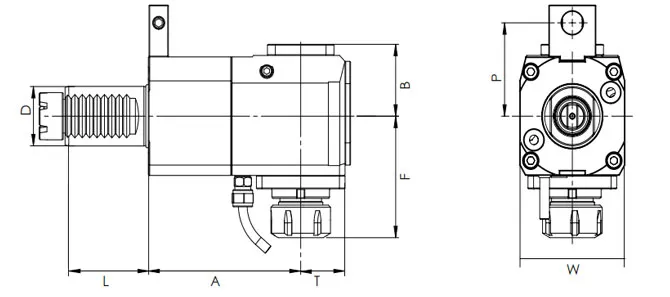

| Size | VDI | Collet | A | B | F | L | P | T | W | Nm | RPM | Internal Cooling | I(rev.) | Direction | Z |
| VDI30-DRER25-55 | 30 | ER25 | 55 | 48 | 63 | 45 | 48 | 29 | 64 | 28 | 6000 | no | 1:1 | right | 6 |
| VDI30-DRER25K-55 | 30 | ER25 | 55 | 51 | 63 | 45 | 48 | 29 | 64 | 28 | 6000 | yes | 1:1 | right | 6 |
| VDI40-DRER25-80 | 40 | ER25 | 80 | 59 | 70 | 53 | 71 | 36 | 75 | 50 | 6000 | no | 1:1 | right | 8 |
| VDI40-DRER25K-80 | 40 | ER25 | 80 | 62 | 70 | 53 | 71 | 36 | 75 | 50 | 6000 | yes | 1:1 | right | 8 |
| VDI40-DRER32-80 | 40 | ER32 | 80 | 59 | 74 | 53 | 71 | 36 | 75 | 50 | 6000 | no | 1:1 | right | 8 |
| VDI40-DRER32K-80 | 40 | ER32 | 80 | 62 | 74 | 53 | 71 | 36 | 75 | 50 | 6000 | yes | 1:1 | right | 8 |
