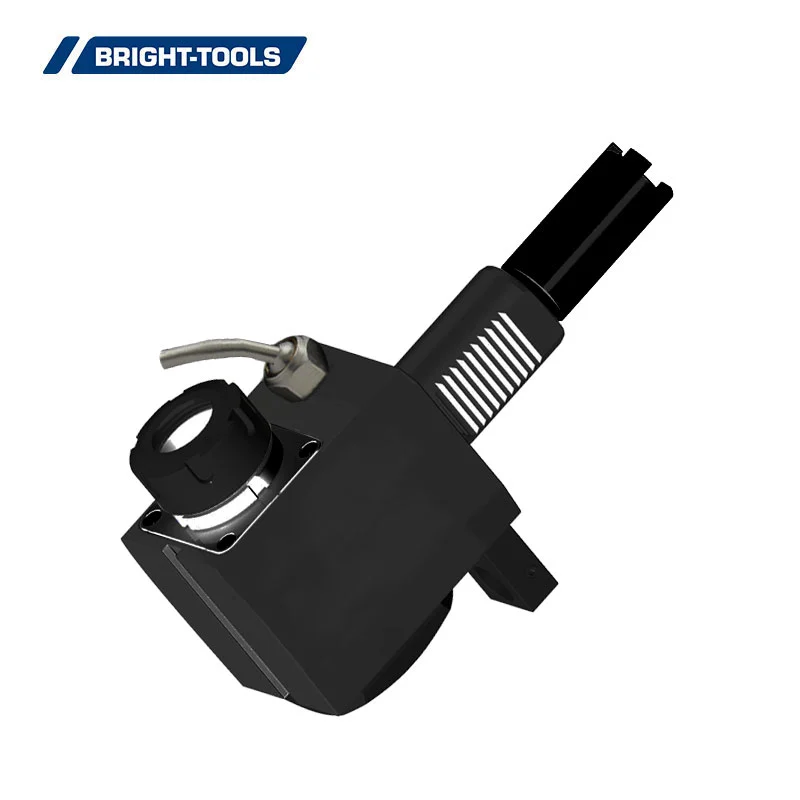

VDI Radial Driven Head, STEPPED HAAS
BRIGHT-TOOLS live tooling boost productivity by allowing secondary operations such as milling, drilling and tapping to be performed in a single setup on one machine.
Tool Holder Norm: DIN 69880 VDI
Driven coupling: STEPPED HAAS
Turret Size: VDI30 VDI 40
Direction: Radial 90 deg.
Output: ER25 ER32
Gear Ratio: 1:1
Max Speed: 6000 RPM
Coolant: external, internal can be made by request.
