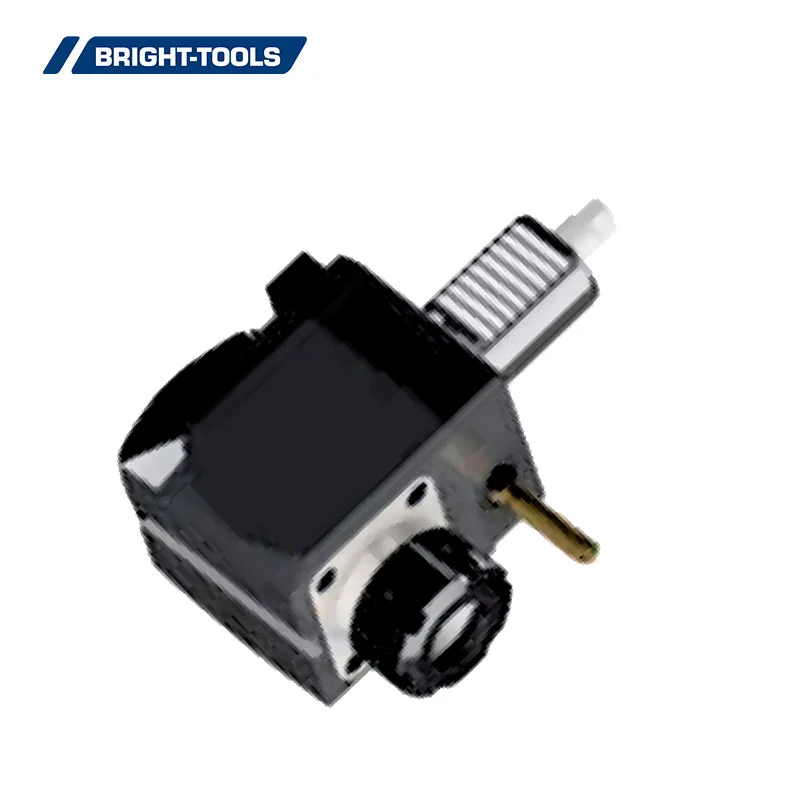

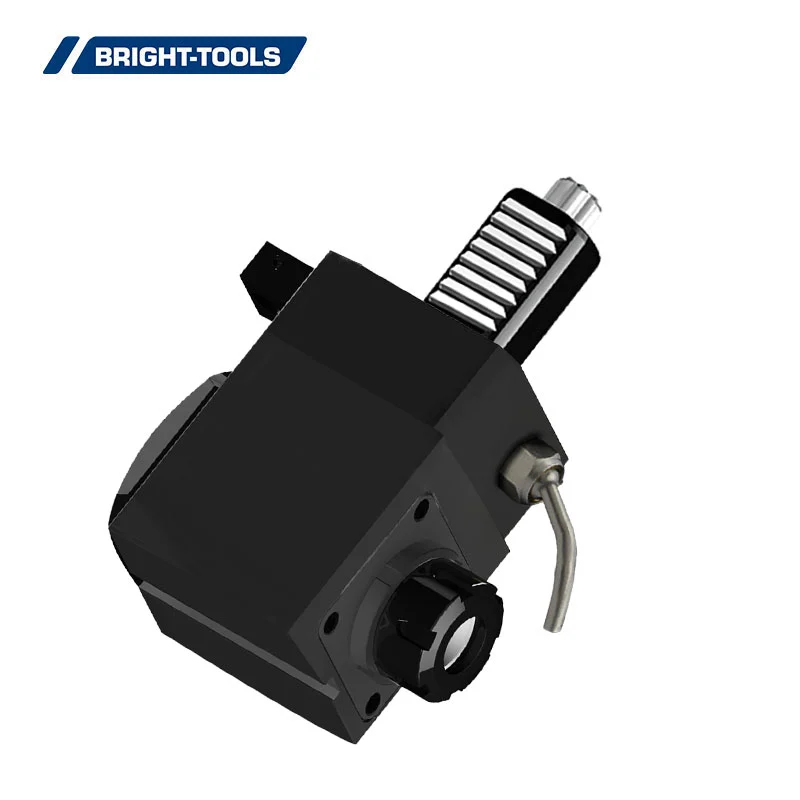

VDI Radial Driven Head, DIN 5482
Living tooling is specifically driven by the CNC control and the turret of various spindle and powered sub-spindle configurations on CNC lathes to perform various operations while the workpiece remains in orientation to the main spindle.
Tool Holder Norm: DIN 69880 VDI
Driven coupling: DIN 5482
Turret Size: VDI30 VDI 40
Direction: Radial 90 deg.
Output: ER25 ER32
Gear Ratio: 1:1
Max Speed: 6000 RPM
Coolant: external, internal can be made by request.
