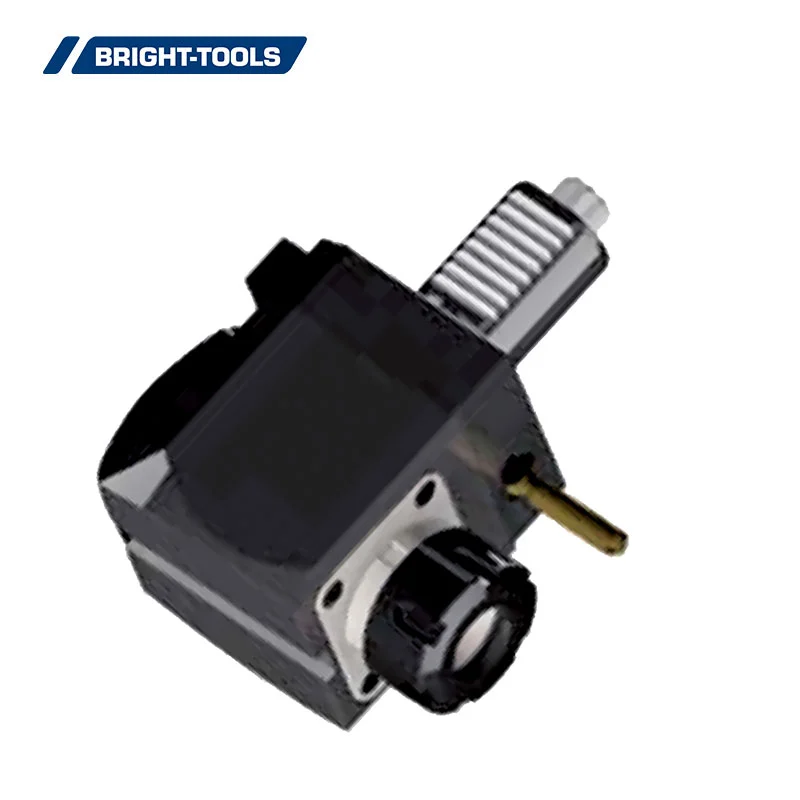

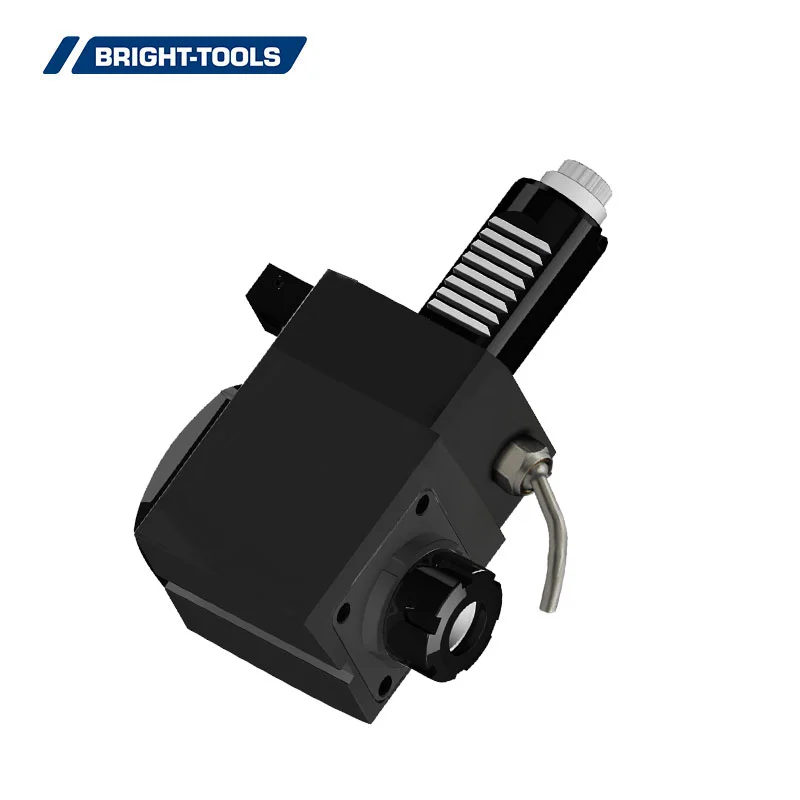

The axial drilling milling head is with high precision, high precision bearings, and is suitable for high spindle speed. it will allow you to reduce the operations required to complete a job.
Tool Holder Norm: DIN 69880 VDI
Driven coupling: DIN 5480
Turret Size: VDI30 VDI 40
Direction: Radial 90 deg.
Output: ER25 ER32
Gear Ratio: 1:1
Max Speed: 6000 RPM
Coolant: external, internal can be made by request.

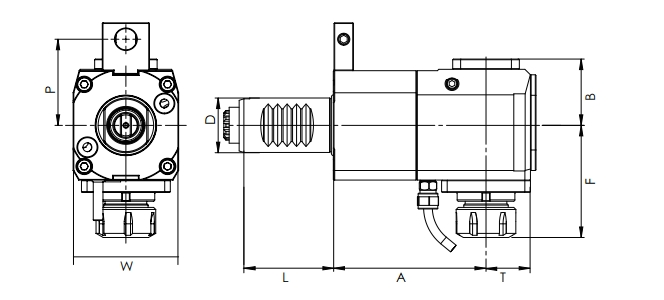

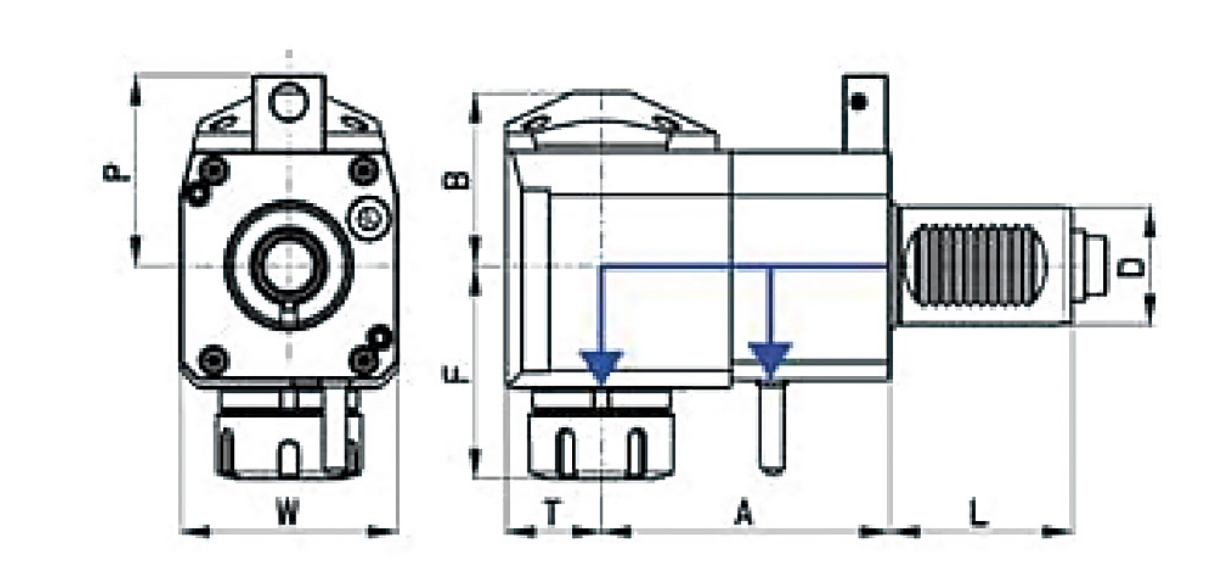

| Size | VDI | Collet | A | B | F | L | P | T | W | Nm | RPM | Internal Cooling | I(rev.) | Direction |
| VDI30-DRER25-55 | 30 | ER25 | 55 | 48 | 63 | 55 | 56 | 26 | 64 | 28 | 6000 | no | 1:1 | right |
| VDI30-DRER25K-55 | 30 | ER25 | 55 | 51 | 63 | 55 | 56 | 26 | 64 | 28 | 6000 | yes | 1:1 | right |
| VDI30-DRER25-85 | 30 | ER25 | 85 | 48 | 63 | 55 | 56 | 26 | 64 | 28 | 6000 | no | 1:1 | right |
| VDI30-DRER25K-85 | 30 | ER25 | 85 | 51 | 63 | 55 | 56 | 26 | 64 | 28 | 6000 | yes | 1:1 | right |
| VDI30-DRER25-100 | 30 | ER25 | 100 | 48 | 63 | 55 | 56 | 29 | 64 | 28 | 6000 | no | 1:1 | right |
| VDI30-DRER25K-100 | 30 | ER25 | 100 | 51 | 63 | 55 | 56 | 29 | 64 | 28 | 6000 | yes | 1:1 | right |
| VDI40-DRER25-80 | 40 | ER25 | 80 | 59 | 70 | 63 | 65 | 33 | 75 | 50 | 6000 | no | 1:1 | right |
| VDI40-DRER25K-80 | 40 | ER25 | 80 | 62 | 70 | 63 | 65 | 33 | 75 | 50 | 6000 | yes | 1:1 | right |
| VDI40-DRER25-100 | 40 | ER25 | 100 | 59 | 70 | 63 | 65 | 33 | 75 | 50 | 6000 | no | 1:1 | right |
| VDI40-DRER25K-100 | 40 | ER25 | 100 | 62 | 70 | 63 | 65 | 33 | 75 | 50 | 6000 | yes | 1:1 | right |
| VDI40-DRER32-80 | 40 | ER32 | 80 | 59 | 74 | 63 | 65 | 33 | 75 | 50 | 6000 | no | 1:1 | right |
| VDI40-DRER32K-80 | 40 | ER32 | 80 | 62 | 74 | 63 | 65 | 33 | 75 | 50 | 6000 | yes | 1:1 | right |
| VDI40-DRER32-100 | 40 | ER32 | 100 | 59 | 74 | 63 | 65 | 33 | 75 | 50 | 6000 | no | 1:1 | right |
| VDI40-DRER32K-100 | 40 | ER32 | 100 | 62 | 74 | 63 | 65 | 33 | 75 | 50 | 6000 | yes | 1:1 | right |
