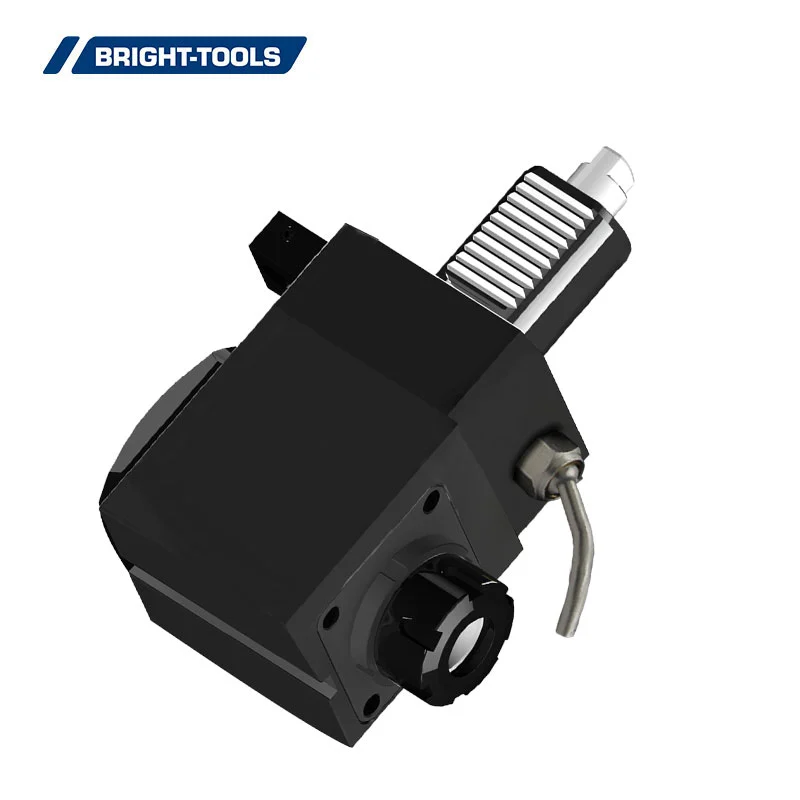

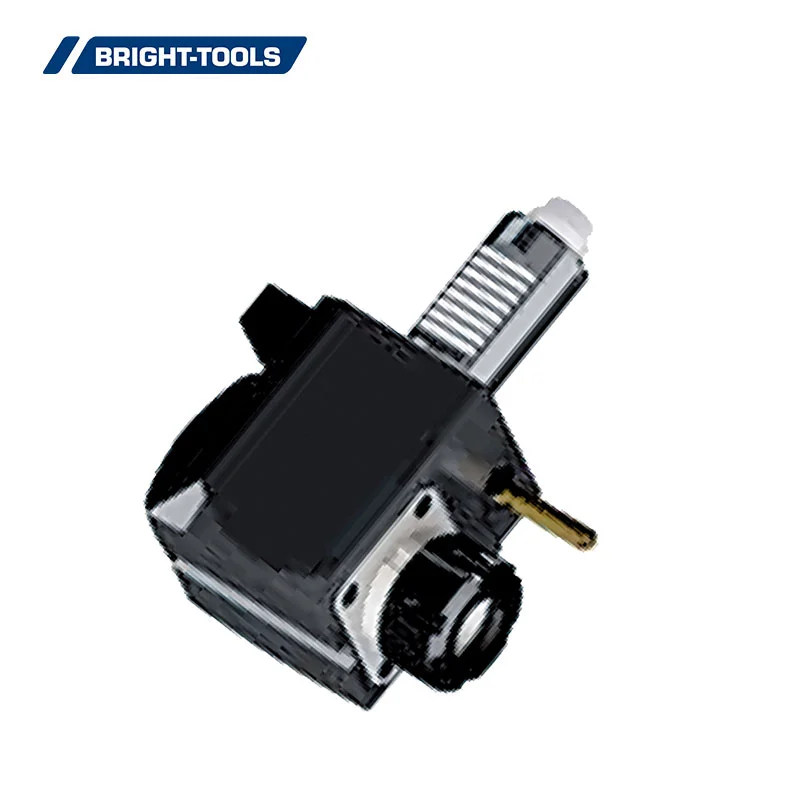

Live tooling will allow you to reduce the operations required to complete a job. Let BRIGHT-TOOLS help you find the right tool holders for your machines.
Tool Holder Norm: DIN 69880
Driven coupling: DIN 1809
Turret Size: VDI30 VDI 40
Direction: Radial 90 deg.
Output: ER25 ER32
Gear Ratio: 1:1
Max Speed: 6000 RPM
Coolant: external, internal can be made by request.

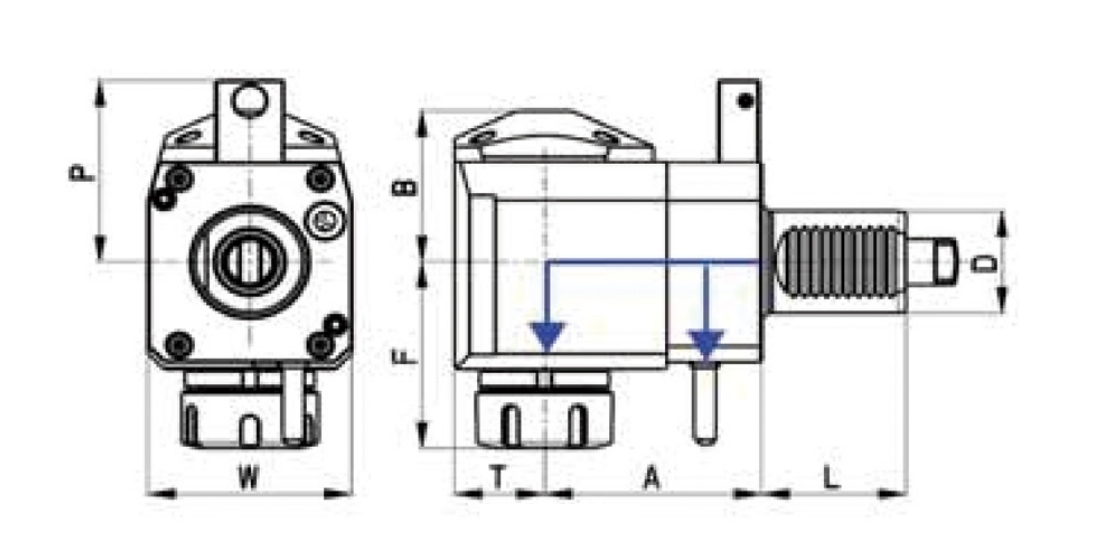

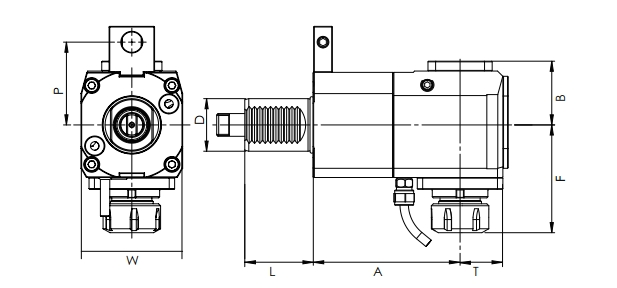

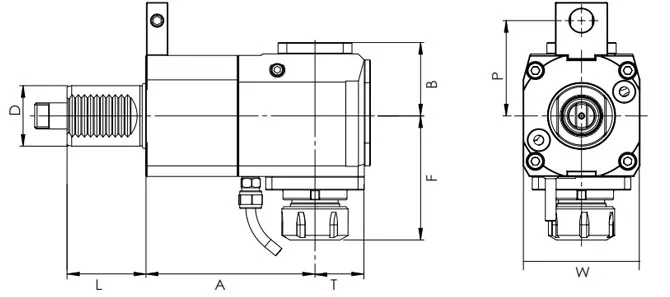

| Size | VDI | Collet | A | B | F | L | P | T | W | Nm | RPM | Internal Cooling | I(rev.) | Direction |
| VDI30-DRER25-55 | 30 | ER25 | 55 | 48 | 63 | 45 | 48 | 29 | 64 | 28 | 6000 | no | 1:1 | right |
| VDI30-DRER25K-55 | 30 | ER25 | 55 | 51 | 63 | 45 | 48 | 29 | 64 | 28 | 6000 | yes | 1:1 | right |
| VDI40-DRER25-80 | 40 | ER25 | 80 | 59 | 70 | 53 | 71 | 36 | 75 | 50 | 6000 | no | 1:1 | right |
| VDI40-DRER25K-80 | 40 | ER25 | 80 | 62 | 70 | 53 | 71 | 36 | 75 | 50 | 6000 | yes | 1:1 | right |
| VDI40-DRER32-80 | 40 | ER32 | 80 | 59 | 74 | 53 | 71 | 36 | 75 | 50 | 6000 | no | 1:1 | right |
| VDI40-DRER32K-80 | 40 | ER32 | 80 | 62 | 74 | 53 | 71 | 36 | 75 | 50 | 6000 | yes | 1:1 | right |
| VDI40-DRER25-100 | 40 | ER25 | 100 | 59 | 70 | 53 | - | 36 | 75 | 50 | 6000 | no | 1:1 | left |
| VDI40-DRER25K-100 | 40 | ER25 | 100 | 62 | 70 | 53 | - | 36 | 75 | 50 | 6000 | yes | 1:1 | left |
| VDI40-DRER32-100 | 40 | ER32 | 100 | 59 | 74 | 53 | - | 36 | 75 | 50 | 6000 | no | 1:1 | left |
| VDI40-DRER32K-100 | 40 | ER32 | 100 | 62 | 74 | 53 | - | 36 | 75 | 50 | 6000 | yes | 1:1 | left |
