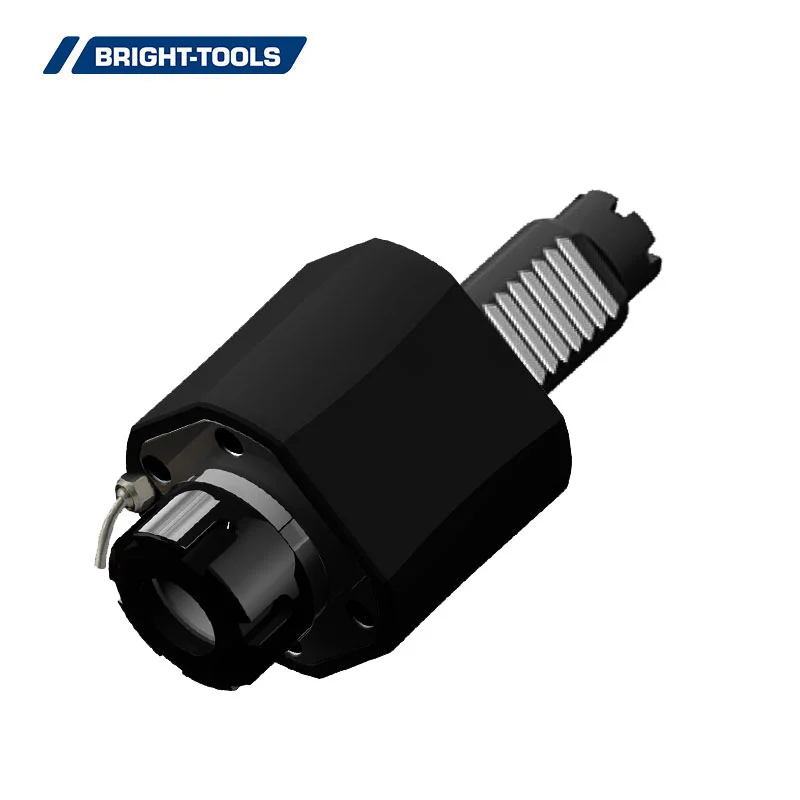

VDI Axial Driven Head, TOEM
TOEM coupling for Baruffaldi turret VDI driven tool holders, is mainly used for drilling and milling operations for your lathe and lathe centers.
Tool Holder Norm: DIN 69880 VDI
Driven coupling: TOEM BARUFFALDI
Turret Size: VDI30 VDI 40
Direction: Axial 0 deg.
Output: ER25 ER32
Gear Ratio: 1:1
Max Speed: 6000 RPM
Coolant: external, internal can be made by request.
