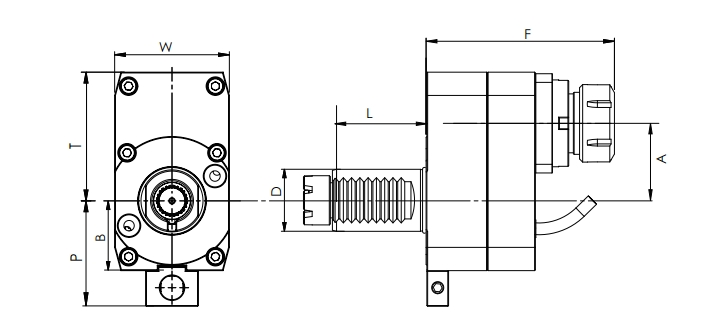

Size | VDI | Collet | A | F | L | L1 | P | T | W | Nm | RPM | Cooling | I(rev.) | Direction |
VDI40-DOAER25-50-63 | 40 | ER25 | 50 | 106 | 63 | 140.85 | 82 | 90 | 78 | no | left | |||
VDI40-DOAER25K-50-63 | 40 | ER25 | 50 | 106 | 63 | 140.85 | 82 | 90 | 78 | yes | left | |||
VDI40-DOAER25-50-63L | 40 | ER25 | 50 | 106 | 63 | 117.55 | 82 | 90 | 78 | no | left | |||
VDI40-DOAER25K-50-63L | 40 | ER25 | 50 | 106 | 63 | 117.55 | 82 | 90 | 78 | yes | left | |||
VDI40-DOAER25-50-63EL | 40 | ER25 | 50 | 106 | 63 | 130.25 | 82 | 90 | 78 | no | left | |||
VDI40-DOAER25K-50-63EL | 40 | ER25 | 50 | 106 | 63 | 130.25 | 82 | 90 | 78 | yes | left |
