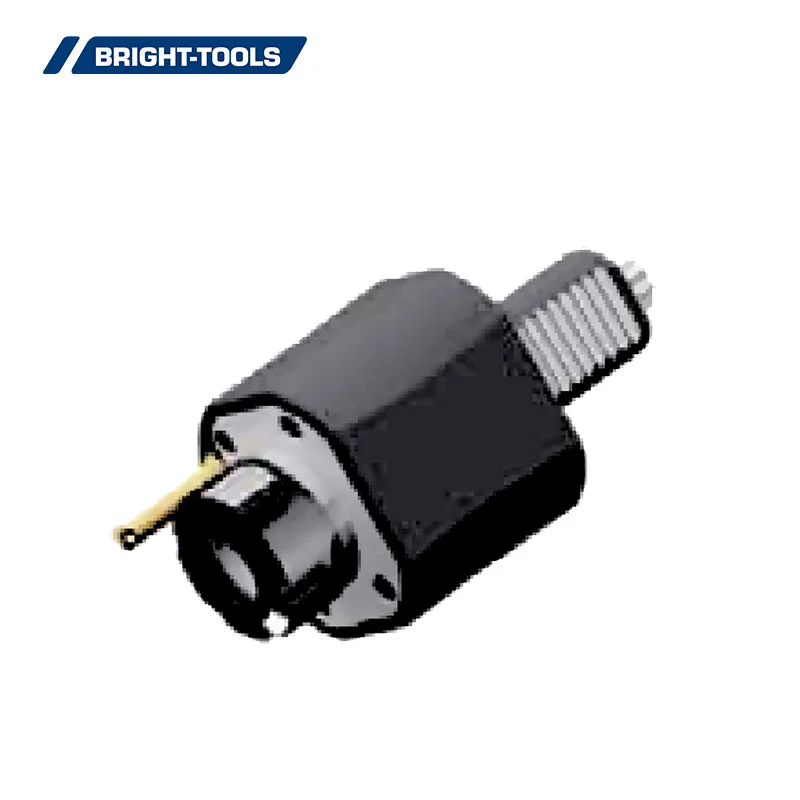

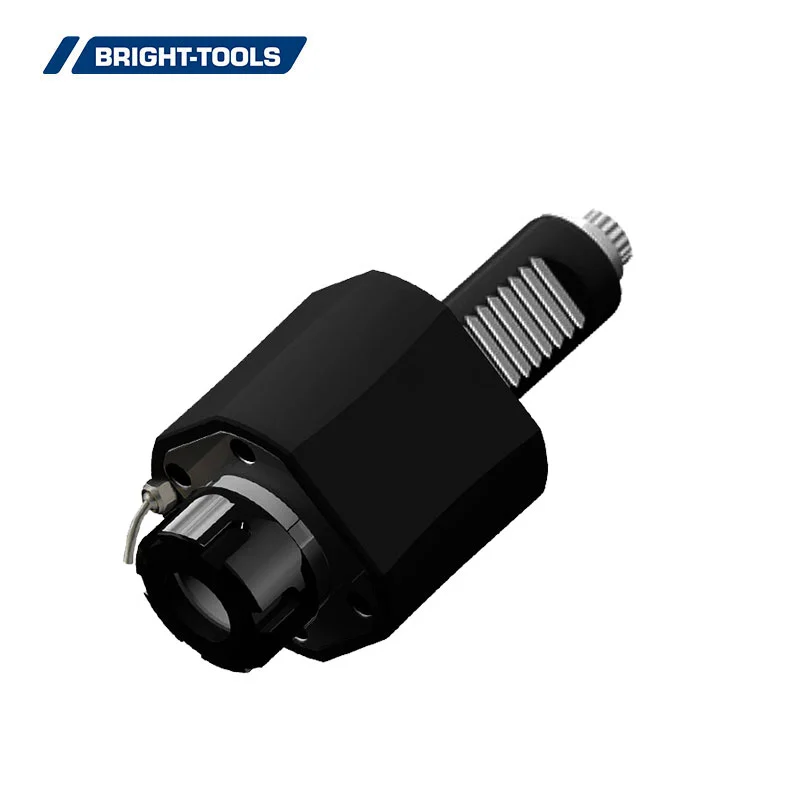

VDI Axial Driven Head, DIN 5480
The axial drilling milling head is with high precision, high precision bearings, and is suitable for high spindle speed. It allows you to reduce the operations required to complete a job.
Tool Holder Norm: DIN 69880 VDI
Driven coupling: DIN 5480
Turret Size: VDI30 VDI 40
Direction: Axial 0 deg.
Output: ER25 ER32
Gear Ratio: 1:1
Max Speed: 6000 RPM
Coolant: external, internal can be made by request.
