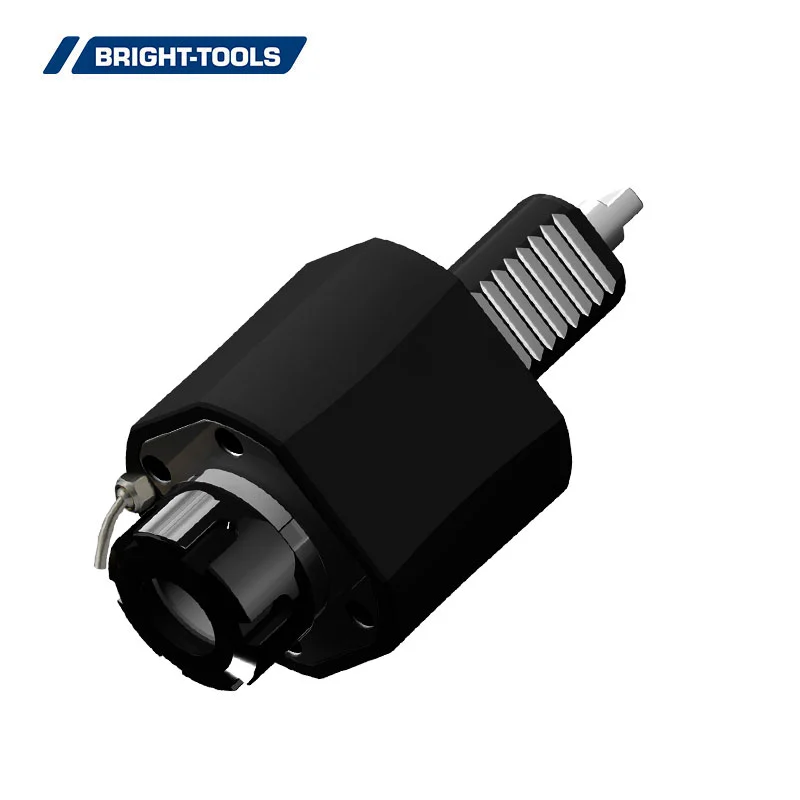

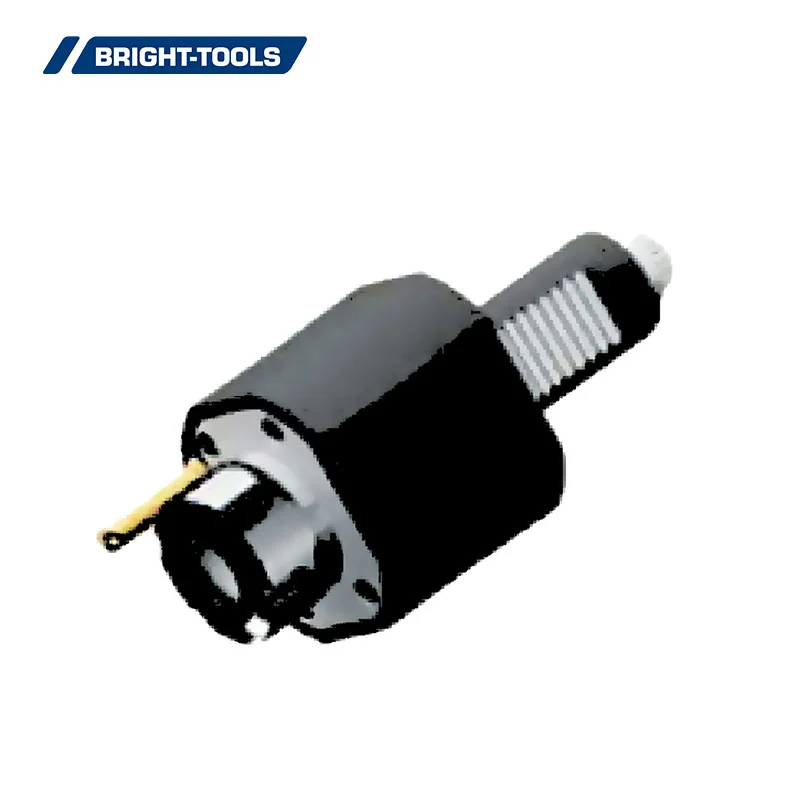

Live tooling will allow you to reduce the operations required to complete a job. Let BRIGHT-TOOLS help you find the right tool holders for your machines.
Tool Holder Norm: DIN 69880 VDI
Driven coupling: DIN 1809
Turret Size: VDI30 VDI 40
Direction: Axial 0 deg.
Output: ER25 ER32
Gear Ratio: 1:1
Max Speed: 6000 RPM
Coolant: external, internal can be made by request.

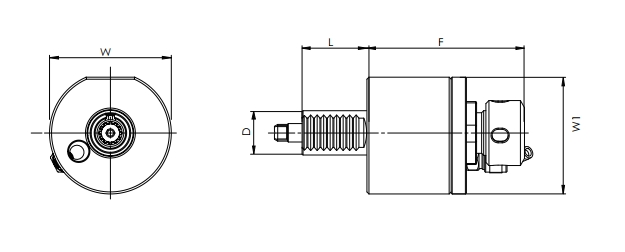

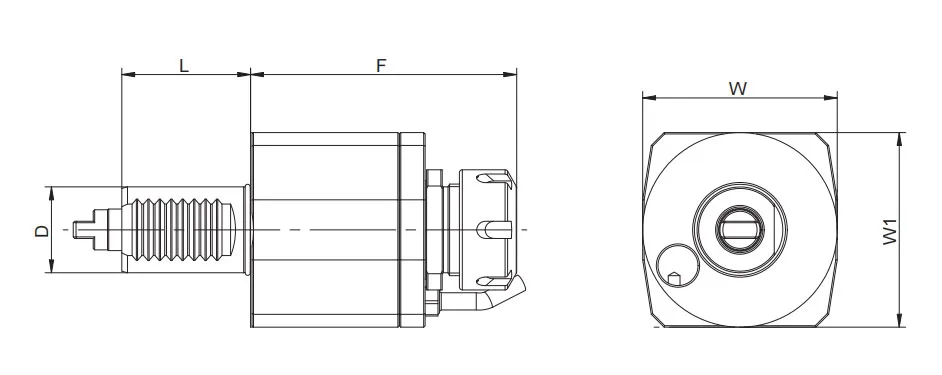

| Size | VDI | Collet | F | L | W | W1 | Nm | RPM | Internal Cooling | I(rev.) |
| VDI30-DAER25-87 | 30 | ER25 | 87 | 45 | 64 | 68 | 28 | 6000 | no | 1:1 |
| VDI30-DAER25K-87 | 30 | ER25 | 87 | 45 | 64 | 68 | 28 | 6000 | yes | 1:1 |
| VDI40-DAER25-105 | 40 | ER25 | 105 | 53 | 80 | 86 | 50 | 6000 | no | 1:1 |
| VDI40-DAER25K-105 | 40 | ER25 | 105 | 53 | 80 | 86 | 50 | 6000 | yes | 1:1 |
| VDI40-DAER32-108 | 40 | ER32 | 108 | 53 | 80 | 86 | 50 | 6000 | no | 1:1 |
| VDI40-DAER32K-108 | 40 | ER32 | 108 | 53 | 80 | 86 | 50 | 6000 | yes | 1:1 |
| VDI40-DAER32-95 | 40 | ER32 | 95 | 53 | 80 | 86 | 50 | 6000 | no | 1:1 |
| VDI40-DAER32K-95 | 40 | ER32 | 95 | 53 | 80 | 86 | 50 | 6000 | yes | 1:1 |
