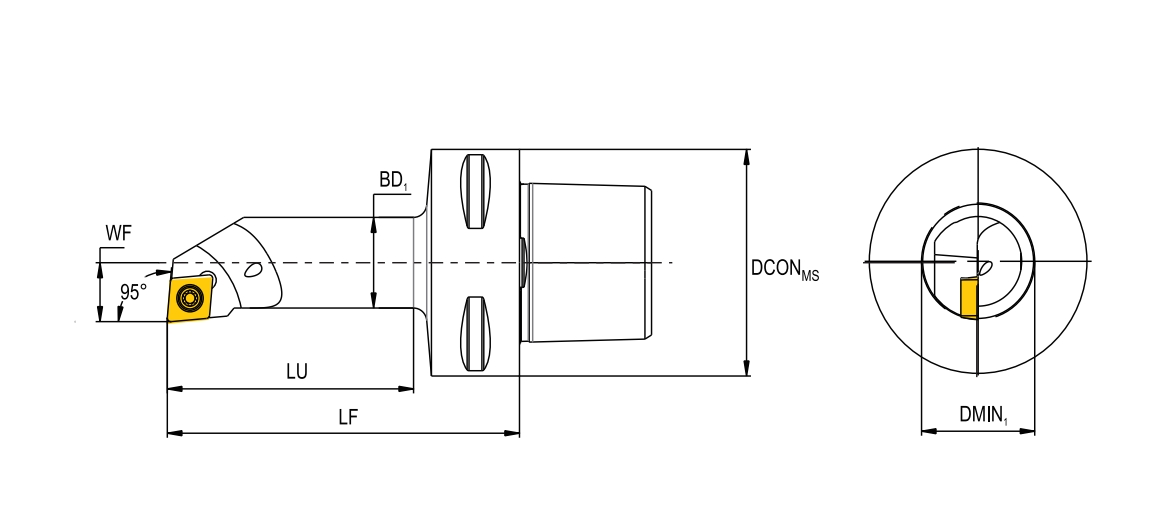

Size | DMIN2 | DCONMS | BD1 | LU | LF | WF | Insert | Shim | Shim screw | Screw | Torx wrench | Hex wrench | |
Right hand | Left hand | ||||||||||||
PSC3-SCLCR-11065-09 | PSC3-SCLCL-11065-09 | 20 | 32 | 16 | 48 | 65 | 11 | CC..09T3.. | - | - | L60 M3.5x8.8 | - | - |
PSC3-SCLCR-13075-09 | PSC3-SCLCL-13075-09 | 25 | 32 | 20 | 58 | 75 | 13 | CC..09T3.. | - | - | L60 M3.5x8.8 | - | - |
PSC3-SCLCR-17090-09 | PSC3-SCLCL-17090-09 | 32 | 32 | 25 | 74 | 90 | 13 | CC..09T3.. | - | - | L60 M3.5x8.8 | - | - |
PSC4-SCLCR-11070-09 | PSC4-SCLCL-11070-09 | 20 | 40 | 16 | 47 | 70 | 11 | CC..09T3.. | - | - | L60 M3.5x8.8 | - | - |
PSC4-SCLCR-13080-09 | PSC4-SCLCL-13080-09 | 25 | 40 | 20 | 57 | 80 | 13 | CC..09T3.. | - | - | L60 M3.5x8.8 | - | - |
PSC4-SCLCR-17090-09 | PSC4-SCLCL-17090-09 | 32 | 40 | 25 | 68 | 90 | 17 | CC..09T3.. | - | - | L60 M3.5x8.8 | - | - |
PSC4-SCLCR-27080-09 | PSC4-SCLCL-27080-09 | 50 | 40 | 40 | 60 | 80 | 27 | CC..09T3.. | SKCP-343 | SRS-3 | MS-1156 | T15 | S3.5 |
PSC5-SCLCR-11070-09 | PSC5-SCLCL-11070-09 | 20 | 50 | 16 | 46 | 70 | 11 | CC..09T3.. | - | - | L60 M3.5x8.8 | - | - |
PSC5-SCLCR-13080-09 | PSC5-SCLCL-13080-09 | 25 | 50 | 20 | 56 | 80 | 13 | CC..09T3.. | - | - | L60 M3.5x8.8 | - | - |
PSC5-SCLCR-17090-09 | PSC5-SCLCL-17090-09 | 32 | 50 | 25 | 67 | 90 | 17 | CC..09T3.. | - | - | L60 M3.5x8.8 | - | - |
PSC3-SCLCR-17090-12 | PSC3-SCLCL-17090-12 | 32 | 32 | 25 | 74 | 90 | 17 | CC..1204.. | - | - | L60 M5x10.8 | T20 | - |
PSC3-SCLCR-22096-12 | PSC3-SCLCL-22096-12 | 40 | 32 | 32 | 81 | 96 | 22 | CC..1204.. | SKCP-453 | SRS-4 | MS-1158 | T15 | S4 |
PSC4-SCLCR-22110-12 | PSC4-SCLCL-22110-12 | 40 | 40 | 32 | 89 | 110 | 22 | CC..1204.. | SKCP-453 | SRS-4 | MS-1158 | T15 | S4 |
PSC5-SCLCR-22110-12 | PSC5-SCLCL-22110-12 | 40 | 50 | 32 | 88 | 110 | 22 | CC..1204.. | SKCP-453 | SRS-4 | MS-1158 | T15 | S4 |
PSC5-SCLCR-27140-12 | PSC5-SCLCL-27140-12 | 50 | 50 | 40 | 119 | 140 | 27 | CC..1204.. | SKCP-453 | SRS-4 | MS-1158 | T15 | S4 |
PSC5-SCLCR-35100-12 | PSC5-SCLCL-35100-12 | 63 | 50 | 50 | 80 | 100 | 35 | CC..1204.. | SKCP-453 | SRS-4 | MS-1158 | T15 | S4 |
