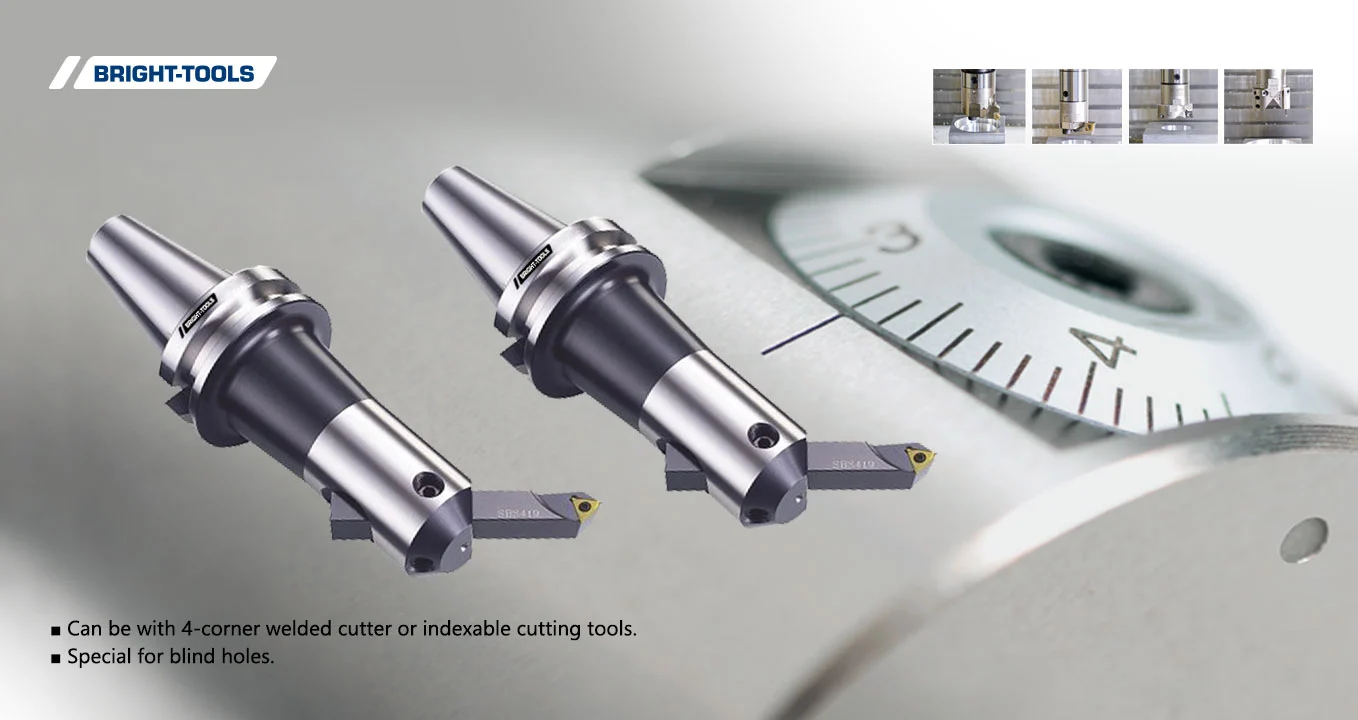

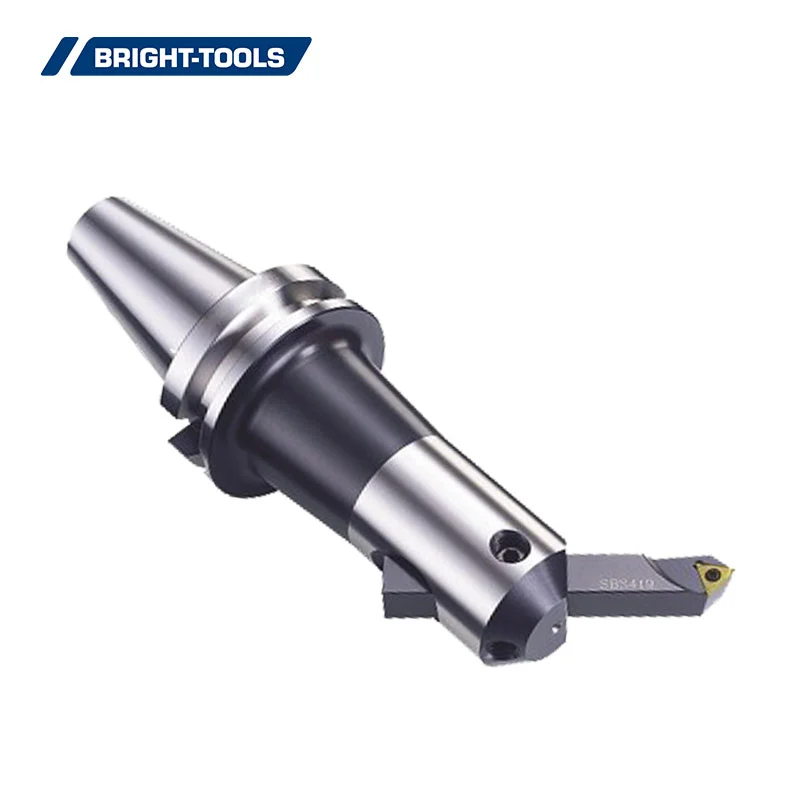

TQC 45° Boring Holder With Square Boring Bit
Can be with 4-corner welded cutter or indexable cutting tools.
Special for blind holes.

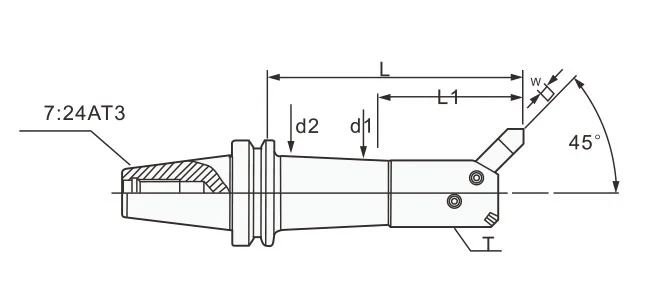

Size | Dc | d1 | d2 | L1 | L | W | 螺丝 Screw |
BT40 TQC25-120 | 25-38 | 20 | 22 | 35 | 90 | 8 | M6 |
BT40 TQC30-150 | 30-42 | 24 | 26 | 40 | 120 | 8 | M6 |
BT40 TQC38-165 | 38-52 | 30 | 33 | 50 | 135 | 10 | M8 |
BT40 TQC42-165 | 42-56 | 34 | 37 | 50 | 135 | 10 | M8 |
BT40 TQC50-165 | 50-65 | 40 | 44 | 65 | 135 | 13 | M8 |
BT40 TQC62-180 | 62-90 | 50 | 56 | 80 | 150 | 16 | M10 |
BT40 TQC72-180 | 72-110 | 60 | — | 95 | 150 | 19 | M10 |
BT40 TQC90-180 | 90-125 | 75 | — | — | 150 | 19 | M10 |
BT50 TQC25-135 | 25-38 | 20 | 22 | 35 | 92 | 8 | M6 |
BT50 TQC30-165 | 30-42 | 24 | 26 | 40 | 122 | 8 | M6 |
BT50 TQC38-180 | 38-52 | 30 | 33 | 50 | 137 | 10 | M8 |
BT50 TQC42-210 | 42-56 | 34 | 37 | 60 | 167 | 10 | M8 |
BT50 TQC50-180 | 50-65 | 40 | 44 | 65 | 137 | 13 | M10 |
BT50 TQC50-240 | 50-65 | 40 | 44 | 65 | 197 | 13 | M10 |
BT50 TQC62-195 | 62-90 | 50 | 56 | 80 | 152 | 16 | M10 |
BT50 TQC62-270 | 62-90 | 50 | 56 | 80 | 227 | 16 | M10 |
BT50 TQC72-195 | 72-110 | 60 | 66 | 95 | 152 | 19 | M10 |
BT50 TQC72-285 | 72-110 | 60 | 66 | 95 | 242 | 19 | M10 |
BT50 TQC90-210 | 90-125 | 75 | 80 | 110 | 267 | 19 | M12 |
BT50 TQC90-300 | 90-125 | 75 | 80 | 110 | 257 | 19 | M12 |
BT50 TQC105-195 | 105-160 | 90 | — | — | 152 | 25 | M12 |
BT50 TQC105-285 | 105-160 | 90 | 94 | 130 | 242 | 25 | M12 |
