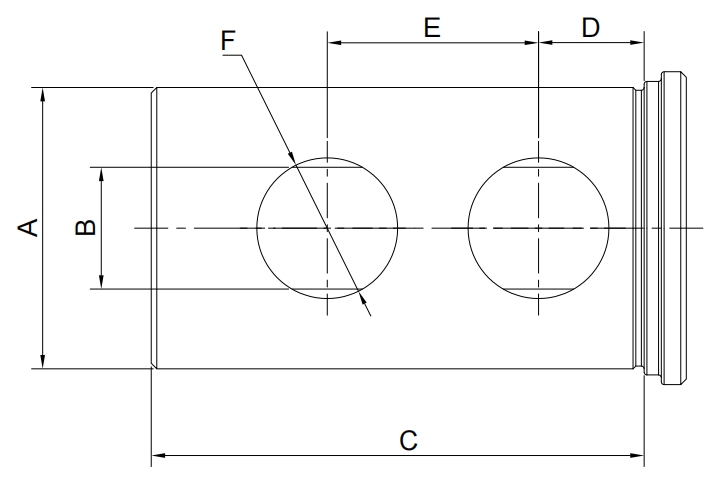

| Size | A(OD) | B(ID) | C | D | E | F | Holes No. |
| J 3/4"-1/4 | 3/4" | 1/4 | 1-1/2 | 3/9 | 13/16 | 3/8 | 2 |
| J 3/4"- 5/16 | 3/4" | 5/16 | 1-1/2 | 3/9 | 13/16 | 3/8 | 2 |
| J 3/4"- 3/8 | 3/4" | 3/8 | 1-1/2 | 3/9 | 13/16 | 3/8 | 2 |
| J 3/4"-1/2 | 3/4" | 1/2 | 1-1/2 | 3/9 | 13/16 | 3/8 | 2 |
| J 1"-3/8 | 1" | 3/8 | 1-3/4 | 7/16 | 7/8 | 5/8 | 2 |
| J 1"-1/2 | 1" | 1/2 | 1-3/4 | 7/16 | 7/8 | 5/8 | 2 |
| J 1"- 5/8 | 1" | 5/8 | 1-3/4 | 7/16 | 7/8 | 5/8 | 2 |
| J 1"- 3/4 | 1" | 3/4 | 1-3/4 | 7/16 | 7/8 | 5/8 | 2 |
| J 1-1/4"-3/8 | 1-1/4" | 3/8 | 2-1/8 | 5/8 | 1 | 3/4 | 2 |
| J 1-1/4"-1/2 | 1-1/4" | 1/2 | 2-1/8 | 5/8 | 1 | 3/4 | 2 |
| J 1-1/4"-5/8 | 1-1/4" | 5/8 | 2-1/8 | 5/8 | 1 | 3/4 | 2 |
| J 1-1/4"-3/4 | 1-1/4" | 3/4 | 2-1/8 | 5/8 | 1 | 3/4 | 2 |
| J 1-1/4"- 7/8 | 1-1/4" | 7/8 | 2-1/8 | 5/8 | 1 | 3/4 | 2 |
| J 1-1/4"-1 | 1-1/4" | 1 | 2-1/8 | 5/8 | 1 | 3/4 | 2 |
| J 1-1/2"-3/8 | 1-1/2" | 3/8 | 2-1/2 | 11/16 | 1-1/8 | 7/8 | 2 |
| J 1-1/2"-1/2 | 1-1/2" | 1/2 | 2-1/2 | 11/16 | 1-1/8 | 7/8 | 2 |
| J 1-1/2"- 5/8 | 1-1/2" | 5/8 | 2-1/2 | 11/16 | 1-1/8 | 7/8 | 2 |
| J 1-1/2"-3/4 | 1-1/2" | 3/4 | 2-1/2 | 11/16 | 1-1/8 | 7/8 | 2 |
| J 1-1/2"-7/8 | 1-1/2" | 7/8 | 2-1/2 | 11/16 | 1-1/8 | 7/8 | 2 |
| J 1-1/2"-1 | 1-1/2" | 1 | 2-1/2 | 11/16 | 1-1/8 | 7/8 | 2 |
| J 1-1/2"-1-1/4 | 1-1/2" | 1-1/4 | 2-1/2 | 11/16 | 1-1/8 | 7/8 | 2 |
| J 1-3/4"-1/2 | 1-3/4" | 1/2 | 3 | 3/4 | 1-1/4 | 7/8 | 2 |
| J 1-3/4"- 5/8 | 1-3/4" | 5/8 | 3 | 3/4 | 1-1/4 | 7/8 | 2 |
| J 1-3/4"-3/4 | 1-3/4" | 3/4 | 3 | 3/4 | 1-1/4 | 7/8 | 2 |
| J 1-3/4"-7/8 | 1-3/4" | 7/8 | 3 | 3/4 | 1-1/4 | 7/8 | 2 |
| J 1-3/4"-1 | 1-3/4" | 1 | 3 | 3/4 | 1-1/4 | 7/8 | 2 |
| J 1-3/4"-1-1/4 | 1-3/4" | 1-1/4 | 3 | 3/4 | 1-1/4 | 7/8 | 2 |
| J 1-3/4"- 1-1/2 | 1-3/4" | 1-1/2 | 3 | 3/4 | 1-1/4 | 7/8 | 2 |
| J 2"-1/2 | 2" | 1/2 | 3-1/2 | 3/4 | 1-1/2 | 1 | 2 |
| J 2"-5/8 | 2" | 5/8 | 3-1/2 | 3/4 | 1-1/2 | 1 | 2 |
| J 2"-3/4 | 2" | 3/4 | 3-1/2 | 3/4 | 1-1/2 | 1 | 2 |
| J 2"-7/8 | 2" | 7/8 | 3-1/2 | 3/4 | 1-1/2 | 1 | 2 |
| J 2"-1 | 2" | 1 | 3-1/2 | 3/4 | 1-1/2 | 1 | 2 |
| J 2"- 1-1/4 | 2" | 1-1/4 | 3-1/2 | 3/4 | 1-1/2 | 1 | 2 |
| J 2"- 1-1/2 | 2" | 1-1/2 | 3-1/2 | 3/4 | 1-1/2 | 1 | 2 |
| J 2"-1-3/4 | 2" | 1-3/4 | 3-1/2 | 3/4 | 1-1/2 | 1 | 2 |
| J 2-1/2"-1/2 | 2-1/2" | 1/2 | 4 | 7/8 | 1-3/4 | 1-1/4 | 2 |
| J 2-1/2"-5/8 | 2-1/2" | 5/8 | 4 | 7/8 | 1-3/4 | 1-1/4 | 2 |
| J 2-1/2"-3/4 | 2-1/2" | 3/4 | 4 | 7/8 | 1-3/4 | 1-1/4 | 2 |
| J 2-1/2"-7/8 | 2-1/2" | 7/8 | 4 | 7/8 | 1-3/4 | 1-1/4 | 2 |
| J 2-1/2"-1 | 2-1/2" | 1 | 4 | 7/8 | 1-3/4 | 1-1/4 | 2 |
| J 2-1/2"-1-1/4 | 2-1/2" | 1-1/4 | 4 | 7/8 | 1-3/4 | 1-1/4 | 2 |
| J 2-1/2"-1-1/2 | 2-1/2" | 1-1/2 | 4 | 7/8 | 1-3/4 | 1-1/4 | 2 |
| J 2-1/2"-1-3/4 | 2-1/2" | 1-3/4 | 4 | 7/8 | 1-3/4 | 1-1/4 | 2 |
| J 2-1/2"-2 | 2-1/2" | 2 | 4 | 7/8 | 1-3/4 | 1-1/4 | 2 |
| J 2-1/2"-2-1/4 | 2-1/2" | 2-1/4 | 4 | 7/8 | 1-3/4 | 1-1/4 | 2 |
| J 3"-1 | 3" | 1 | 4-1/2 | 1 | 2 | 1-1/4 | 4 |
| J 3"-1-1/4 | 3" | 1-1/4 | 4-1/2 | 1 | 2 | 1-1/4 | 4 |
| J 3"-1-1/2 | 3" | 1-1/2 | 4-1/2 | 1 | 2 | 1-1/4 | 4 |
| J 3"-1-3/4 | 3" | 1-3/4 | 4-1/2 | 1 | 2 | 1-1/4 | 4 |
| J 3"- 2 | 3" | 2 | 4-1/2 | 1 | 2 | 1-1/4 | 4 |
| J 3"-2-1/4 | 3" | 2-1/4 | 4-1/2 | 1 | 2 | 1-1/4 | 4 |
| J 3"-2-1/2 | 3" | 2-1/2 | 4-1/2 | 1 | 2 | 1-1/4 | 4 |
| J 3-1/2"-1 | 3-1/2" | 1 | 5-1/4 | 1-1/4 | 2-1/2 | 1-1/4 | 4 |
| J 3-1/2"-1-1/4 | 3-1/2" | 1-1/4 | 5-1/4 | 1-1/4 | 2-1/2 | 1-1/4 | 4 |
| J 3-1/2"-1-1/2 | 3-1/2" | 1-1/2 | 5-1/4 | 1-1/4 | 2-1/2 | 1-1/4 | 4 |
| J 3-1/2"-1-3/4 | 3-1/2" | 1-3/4 | 5-1/4 | 1-1/4 | 2-1/2 | 1-1/4 | 4 |
| J 3-1/2"-2 | 3-1/2" | 2 | 5-1/4 | 1-1/4 | 2-1/2 | 1-1/4 | 4 |
| J 3-1/2"-2-1/4 | 3-1/2" | 2-1/4 | 5-1/4 | 1-1/4 | 2-1/2 | 1-1/4 | 4 |
| J 3-1/2"-2-1/2 | 3-1/2" | 2-1/2 | 5-1/4 | 1-1/4 | 2-1/2 | 1-1/4 | 4 |
| J 3-1/2"-3 | 3-1/2" | 3 | 5-1/4 | 1-1/4 | 2-1/2 | 1-1/4 | 4 |
