Tapping Collet with Cluth, Metric
For mounting taps with adjustable safety clutch, which prevents the breaking of taps.

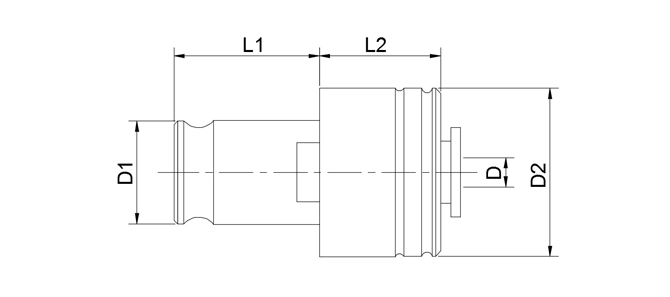

Size | Collet | M | D | o | D1 | D2 | L1 | L2 |
FES1 M2(2.80x2.1) | FES 1 | M2 | 2.8 | 2.1 | 19 | 33 | 21.5 | 25 |
FES1 M3(3.5*2.7) | FES 1 | M3 | 3.5 | 2.7 | 19 | 33 | 21.5 | 25 |
FES1 M3.5(4*3) | FES 1 | M3.5 | 4 | 3 | 19 | 33 | 21.5 | 25 |
FES1 M4(5*4) | FES 1 | M4 | 5 | 4 | 19 | 33 | 21.5 | 25 |
FES1 M4(4.5*3.4) | FES 1 | M4 | 4.5 | 3.4 | 19 | 33 | 21.5 | 25 |
FES1 M5(6*4.9) | FES 1 | M5 | 6 | 4.9 | 19 | 33 | 21.5 | 25 |
FES1 M6(6.3*5) | FES 1 | M6 | 6.3 | 5 | 19 | 33 | 21.5 | 25 |
FES1 M6(6*4.9) | FES 1 | M6 | 6 | 4.9 | 19 | 33 | 21.5 | 25 |
FES1 M8(8*6.3) | FES 1 | M8 | 8 | 6.3 | 19 | 33 | 21.5 | 25 |
FES1 M10(10*8) | FES 1 | M10 | 10 | 8 | 19 | 33 | 21.5 | 25 |
FES1 M10(7*5.5) | FES 1 | M10 | 7 | 5.5 | 19 | 33 | 21.5 | 25 |
FES1 M12(9*7.1) | FES 1 | M12 | 9 | 7.1 | 19 | 33 | 21.5 | 25 |
FES1 M12(9*7) | FES 1 | M12 | 9 | 7 | 19 | 33 | 21.5 | 25 |
FES1 M14(11*9) | FES 1 | M14 | 11 | 9 | 19 | 33 | 21.5 | 25 |
