Straight Shank Collet
Size: SC16 SC20 SC25 SC32 SC40
TIR: 0.02mm
Usage: Hold drills, boring cutters, milling cutters, taps, etc. And should work with milling chuck
Character: Clamping power is strong, and shrinkage range is relatively small
Size: SC16 SC20 SC25 SC32 SC40
TIR: 0.02mm
Usage: Hold drills, boring cutters, milling cutters, taps, etc. And should work with milling chuck
Character: Clamping power is strong, and shrinkage range is relatively small

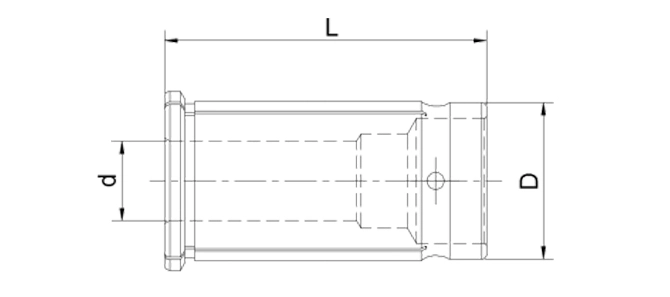

| Size | d | D | L |
| SC1/2" | 1/8" | 1/2" | 1.73" |
| SC1/2" | 3/16" | 1/2" | 1.73" |
| SC1/2" | 1/4" | 1/2" | 1.73" |
| SC1/2" | 5/16" | 1/2" | 1.73" |
| SC1/2" | 3/8" | 1/2" | 1.73" |
| SC3/4" | 1/8" | 3/4" | 1.97" |
| SC1" | 1/8" | 1" | 2.36" |
| SC1" | 3/16" | 1" | 2.36" |
| SC1" | 1/4" | 1" | 2.36" |
| SC1" | 5/16" | 1" | 2.36" |
| SC1" | 3/8" | 1" | 2.36" |
| SC1" | 7/16" | 1" | 2.36" |
| SC1" | 1/2" | 1" | 2.36" |
| SC1" | 5/8" | 1" | 2.36" |
| SC1" | 3/4" | 1" | 2.36" |
| SC1" | 7/8" | 1" | 2.36" |
| SC1-1/4" | 3/16" | 1-1/4" | 2.52" |
| SC1-1/4" | 1/4" | 1-1/4" | 2.52" |
| SC1-1/4" | 5/16" | 1-1/4" | 2.52" |
| SC1-1/4" | 3/8" | 1-1/4" | 2.52" |
| SC1-1/4" | 7/16" | 1-1/4" | 2.52" |
| SC1-1/4" | 1/2" | 1-1/4" | 2.52" |
| SC1-1/4" | 9/16" | 1-1/4" | 2.52" |
| SC1-1/4" | 5/8" | 1-1/4" | 2.52" |
| SC1-1/4" | 3/4" | 1-1/4" | 2.52" |
| SC1-1/4" | 7/8" | 1-1/4" | 2.52" |
| SC1-1/4" | 1 " | 1-1/4" | 2.52" |
