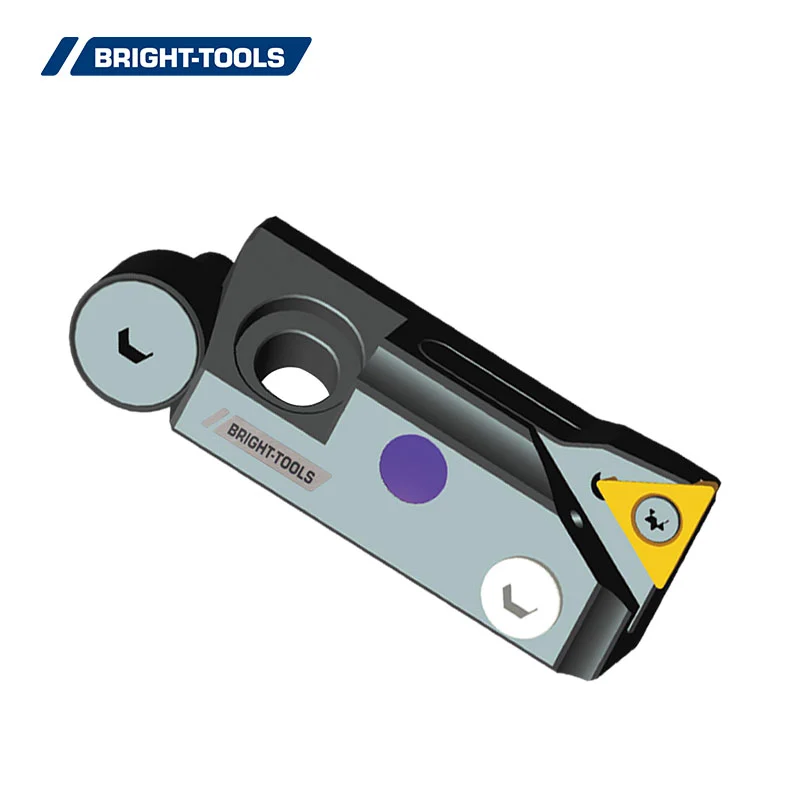

Small Fine Boring Head

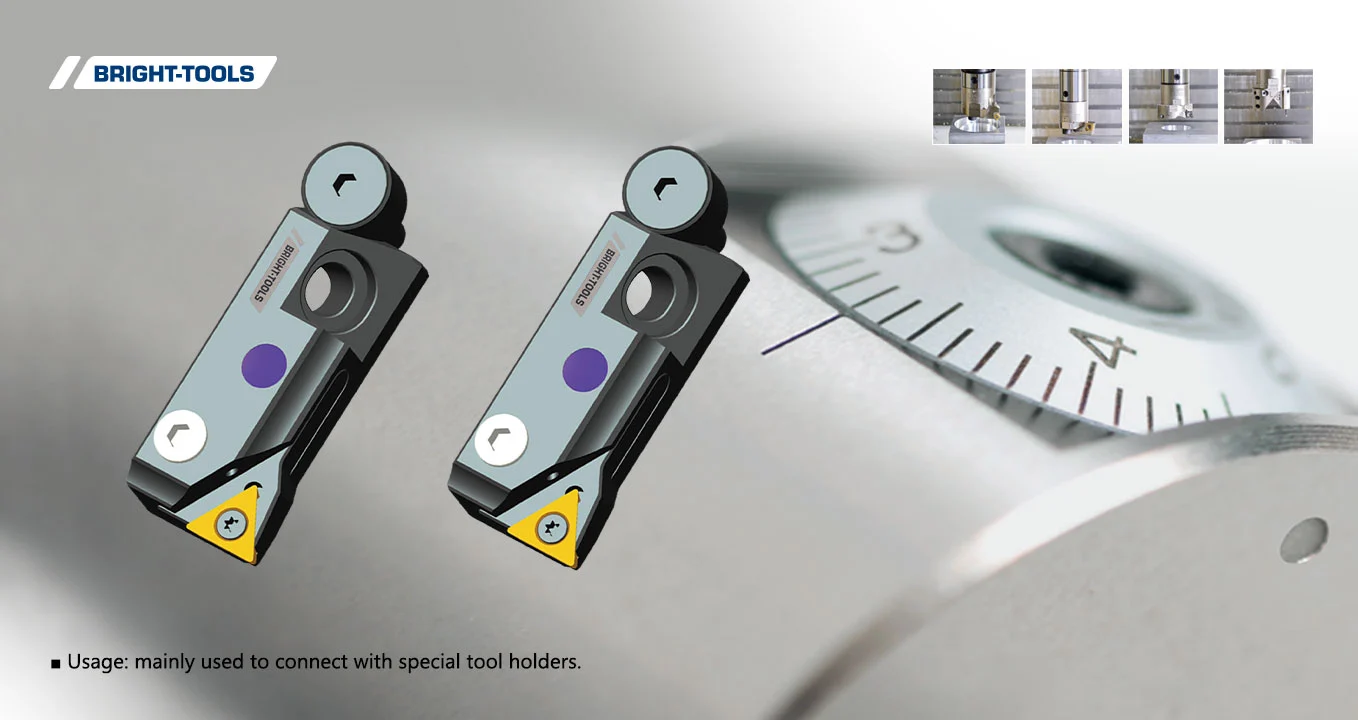

Usage: mainly used to connect with special tool holders.

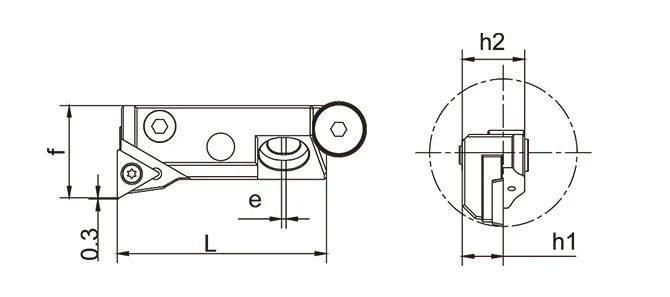

Size | Degree | Dmin | L | h1 | h2 | e | f | r | Insert |
DF-1695L-CC06 | 95 | 28 | 45.5 | 8.8 | 13.5 | 1 | 16 | 0.4 | CC..0602.. |
DF-1695R-CC06 | 95 | 28 | 45.5 | 8.8 | 13.5 | 1 | 16 | 0.4 | |
DF-1695L-TP09 | 95 | 28 | 45.5 | 8.8 | 13.5 | 1 | 16 | 0.4 | TP..0902.. |
DF-1695R-TP09 | 95 | 28 | 45.5 | 8.8 | 13.5 | 1 | 16 | 0.4 | |
DF-2095L-TC11 | 95 | 36 | 45.5 | 8.8 | 13.5 | 1 | 20 | 0.4 | TC..1102.. |
DF-2095R-TC11 | 95 | 36 | 45.5 | 8.8 | 13.5 | 1 | 20 | 0.4 | |
DF-1690L-CC06 | 90 | 28 | 45.5 | 8.8 | 13.5 | 1 | 16 | 0.4 | CC..0602.. |
DF-1690R-CC06 | 90 | 28 | 45.5 | 8.8 | 13.5 | 1 | 16 | 0.4 | |
DF-1690L-TP09 | 90 | 28 | 45.5 | 8.8 | 13.5 | 1 | 16 | 0.4 | TP..0902.. |
DF-1690R-TP09 | 90 | 28 | 45.5 | 8.8 | 13.5 | 1 | 16 | 0.4 | |
DF-2090L-TC11 | 90 | 36 | 45.5 | 8.8 | 13.5 | 1 | 20 | 0.4 | TC..1102.. |
DF-2090R-TC11 | 90 | 36 | 45.5 | 8.8 | 13.5 | 1 | 20 | 0.4 |
