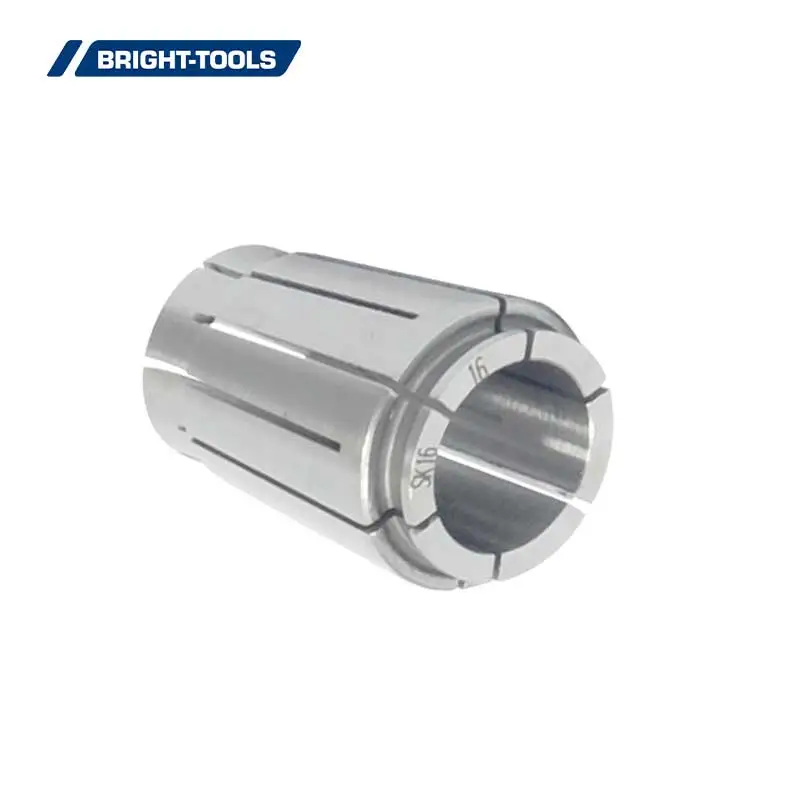

SKS Collet
Size: SKS10 SKS16 SKS20
TIR: 0.005mm
Usage: Hold drills, boring cutters, milling cutters, taps, etc.
Character: The collet is placed in the holder with a long length and the cutters protruding part shorter, better stability
Size: SKS10 SKS16 SKS20
TIR: 0.005mm
Usage: Hold drills, boring cutters, milling cutters, taps, etc.
Character: The collet is placed in the holder with a long length and the cutters protruding part shorter, better stability

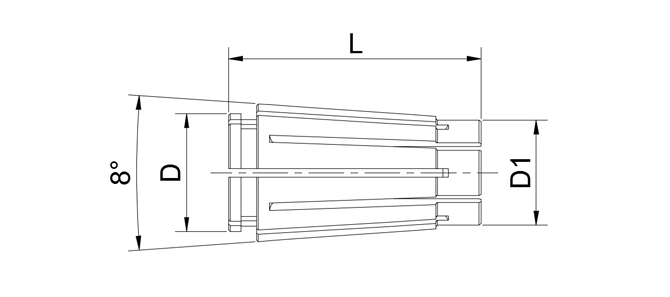

| Size | L | l1 | l2 | l3 | d | d1 | d2 | d3 | d4 |
| SKS06-02 | 25 | 17.5 | 3.5 | 2.5 | 8.6 | 10.5 | 7.5 | 6 | 7.8 |
| SKS06-03 | 25 | 17.5 | 3.5 | 2.5 | 8.6 | 10.5 | 7.5 | 6 | 7.8 |
| SKS06-04 | 25 | 17.5 | 3.5 | 2.5 | 8.6 | 10.5 | 7.5 | 6 | 7.8 |
| SKS06-05 | 25 | 17.5 | 3.5 | 2.5 | 8.6 | 10.5 | 7.5 | 6 | 7.8 |
| SKS06-06 | 25 | 17.5 | 3.5 | 2.5 | 8.6 | 10.5 | 7.5 | 6 | 7.8 |
| SKS10-02 | 30.5 | 22 | 5 | 2.3 | 13.1 | 15.6 | 12 | 10 | 12 |
| SKS10-03 | 30.5 | 22 | 5 | 2.3 | 13.1 | 15.6 | 12 | 10 | 12 |
| SKS10-04 | 30.5 | 22 | 5 | 2.3 | 13.1 | 15.6 | 12 | 10 | 12 |
| SKS10-05 | 30.5 | 22 | 5 | 2.3 | 13.1 | 15.6 | 12 | 10 | 12 |
| SKS10-06 | 30.5 | 22 | 5 | 2.3 | 13.1 | 15.6 | 12 | 10 | 12 |
| SKS10-07 | 30.5 | 22 | 5 | 2.3 | 13.1 | 15.6 | 12 | 10 | 12 |
| SKS10-08 | 30.5 | 22 | 5 | 2.3 | 13.1 | 15.6 | 12 | 10 | 12 |
| SKS10-09 | 30.5 | 22 | 5 | 2.3 | 13.1 | 15.6 | 12 | 10 | 12 |
| SKS10-10 | 30.5 | 22 | 5 | 2.3 | 13.1 | 15.6 | 12 | 10 | 12 |
| SKS13-02 | 39 | 28 | 5 | 2.5 | 18.5 | 20.1 | 17 | 13 | 15 |
| SKS13-03 | 39 | 28 | 5 | 2.5 | 18.5 | 20.1 | 17 | 13 | 15 |
| SKS13-04 | 39 | 28 | 5 | 2.5 | 18.5 | 20.1 | 17 | 13 | 15 |
| SKS13-05 | 39 | 28 | 5 | 2.5 | 18.5 | 20.1 | 17 | 13 | 15 |
| SKS13-06 | 39 | 28 | 5 | 2.5 | 18.5 | 20.1 | 17 | 13 | 15 |
| SKS13-07 | 39 | 28 | 5 | 2.5 | 18.5 | 20.1 | 17 | 13 | 15 |
| SKS13-08 | 39 | 28 | 5 | 2.5 | 18.5 | 20.1 | 17 | 13 | 15 |
| SKS13-09 | 39 | 28 | 5 | 2.5 | 18.5 | 20.1 | 17 | 13 | 15 |
| SKS13-10 | 39 | 28 | 5 | 2.5 | 18.5 | 20.1 | 17 | 13 | 15 |
| SKS13-11 | 39 | 28 | 5 | 2.5 | 18.5 | 20.1 | 17 | 13 | 15 |
| SKS13-12 | 39 | 28 | 5 | 2.5 | 18.5 | 20.1 | 17 | 13 | 15 |
| SKS13-13 | 39 | 28 | 5 | 2.5 | 18.5 | 20.1 | 17 | 13 | 15 |
| SKS16-03 | 45.5 | 32 | 8 | 2.8 | 20.5 | 24.45 | 15.3 | 18.6 | 18.8 |
| SKS16-04 | 45.5 | 32 | 8 | 2.8 | 20.5 | 24.45 | 15.3 | 18.6 | 18.8 |
| SKS16-05 | 45.5 | 32 | 8 | 2.8 | 20.5 | 24.45 | 15.3 | 18.6 | 18.8 |
| SKS16-06 | 45.5 | 32 | 8 | 2.8 | 20.5 | 24.45 | 15.3 | 18.6 | 18.8 |
| SKS16-07 | 45.5 | 32 | 8 | 2.8 | 20.5 | 24.45 | 15.3 | 18.6 | 18.8 |
| SKS16-08 | 45.5 | 32 | 8 | 2.8 | 20.5 | 24.45 | 15.3 | 18.6 | 18.8 |
| SKS16-09 | 45.5 | 32 | 8 | 2.8 | 20.5 | 24.45 | 15.3 | 18.6 | 18.8 |
| SKS16-10 | 45.5 | 32 | 8 | 2.8 | 20.5 | 24.45 | 15.3 | 18.6 | 18.8 |
| SKS16-11 | 45.5 | 32 | 8 | 2.8 | 20.5 | 24.45 | 15.3 | 18.6 | 18.8 |
| SKS16-12 | 45.5 | 32 | 8 | 2.8 | 20.5 | 24.45 | 15.3 | 18.6 | 18.8 |
| SKS16-13 | 45.5 | 32 | 8 | 2.8 | 20.5 | 24.45 | 15.3 | 18.6 | 18.8 |
| SKS16-14 | 45.5 | 32 | 8 | 2.8 | 20.5 | 24.45 | 15.3 | 18.6 | 18.8 |
| SKS16-15 | 45.5 | 32 | 8 | 2.8 | 20.5 | 24.45 | 15.3 | 18.6 | 18.8 |
| SKS16-16 | 45.5 | 32 | 8 | 2.8 | 20.5 | 24.45 | 15.3 | 18.6 | 18.8 |
| SKS20-03 | 54 | 41 | 8 | 2.8 | 24.8 | 29.05 | 19.5 | 22.8 | 22.55 |
| SKS20-04 | 54 | 41 | 8 | 2.8 | 24.8 | 29.05 | 19.5 | 22.8 | 22.55 |
| SKS20-05 | 54 | 41 | 8 | 2.8 | 24.8 | 29.05 | 19.5 | 22.8 | 22.55 |
| SKS20-06 | 54 | 41 | 8 | 2.8 | 24.8 | 29.05 | 19.5 | 22.8 | 22.55 |
| SKS20-07 | 54 | 41 | 8 | 2.8 | 24.8 | 29.05 | 19.5 | 22.8 | 22.55 |
| SKS20-08 | 54 | 41 | 8 | 2.8 | 24.8 | 29.05 | 19.5 | 22.8 | 22.55 |
| SKS20-09 | 54 | 41 | 8 | 2.8 | 24.8 | 29.05 | 19.5 | 22.8 | 22.55 |
| SKS20-10 | 54 | 41 | 8 | 2.8 | 24.8 | 29.05 | 19.5 | 22.8 | 22.55 |
| SKS20-11 | 54 | 41 | 8 | 2.8 | 24.8 | 29.05 | 19.5 | 22.8 | 22.55 |
| SKS20-12 | 54 | 41 | 8 | 2.8 | 24.8 | 29.05 | 19.5 | 22.8 | 22.55 |
| SKS20-13 | 54 | 41 | 8 | 2.8 | 24.8 | 29.05 | 19.5 | 22.8 | 22.55 |
| SKS20-14 | 54 | 41 | 8 | 2.8 | 24.8 | 29.05 | 19.5 | 22.8 | 22.55 |
| SKS20-15 | 54 | 41 | 8 | 2.8 | 24.8 | 29.05 | 19.5 | 22.8 | 22.55 |
| SKS20-16 | 54 | 41 | 8 | 2.8 | 24.8 | 29.05 | 19.5 | 22.8 | 22.55 |
| SKS20-17 | 54 | 41 | 8 | 2.8 | 24.8 | 29.05 | 19.5 | 22.8 | 22.55 |
| SKS20-18 | 54 | 41 | 8 | 2.8 | 24.8 | 29.05 | 19.5 | 22.8 | 22.55 |
| SKS20-19 | 54 | 41 | 8 | 2.8 | 24.8 | 29.05 | 19.5 | 22.8 | 22.55 |
| SKS20-20 | 54 | 41 | 8 | 2.8 | 24.8 | 29.05 | 19.5 | 22.8 | 22.55 |
| SKS25-03 | 57 | 43 | 8.5 | 2.9 | 29.9 | 35.6 | 28.8 | 25.4 | 28.2 |
| SKS25-04 | 57 | 43 | 8.5 | 2.9 | 29.9 | 35.6 | 28.8 | 25.4 | 28.2 |
| SKS25-05 | 57 | 43 | 8.5 | 2.9 | 29.9 | 35.6 | 28.8 | 25.4 | 28.2 |
| SKS25-06 | 57 | 43 | 8.5 | 2.9 | 29.9 | 35.6 | 28.8 | 25.4 | 28.2 |
| SKS25-08 | 57 | 43 | 8.5 | 2.9 | 29.9 | 35.6 | 28.8 | 25.4 | 28.2 |
| SKS25-10 | 57 | 43 | 8.5 | 2.9 | 29.9 | 35.6 | 28.8 | 25.4 | 28.2 |
| SKS25-12 | 57 | 43 | 8.5 | 2.9 | 29.9 | 35.6 | 28.8 | 25.4 | 28.2 |
| SKS25-14 | 57 | 43 | 8.5 | 2.9 | 29.9 | 35.6 | 28.8 | 25.4 | 28.2 |
| SKS25-16 | 57 | 43 | 8.5 | 2.9 | 29.9 | 35.6 | 28.8 | 25.4 | 28.2 |
| SKS25-18 | 57 | 43 | 8.5 | 2.9 | 29.9 | 35.6 | 28.8 | 25.4 | 28.2 |
| SKS25-20 | 57 | 43 | 8.5 | 2.9 | 29.9 | 35.6 | 28.8 | 25.4 | 28.2 |
| SKS25-22 | 57 | 43 | 8.5 | 2.9 | 29.9 | 35.6 | 28.8 | 25.4 | 28.2 |
| SKS25-24 | 57 | 43 | 8.5 | 2.9 | 29.9 | 35.6 | 28.8 | 25.4 | 28.2 |
| SKS25-25 | 57 | 43 | 8.5 | 2.9 | 29.9 | 35.6 | 28.8 | 25.4 | 28.2 |
