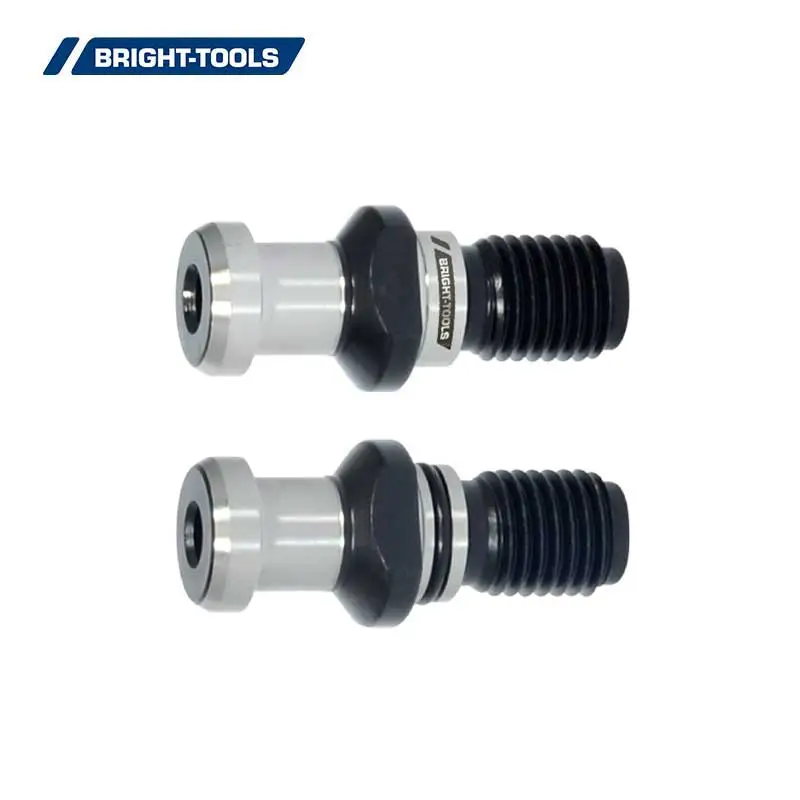

SK Pull Stud
Standard: DIN69872
Two type: Form A with drill through, with O-ring and without O-ring
Form B sealed, without O-ring

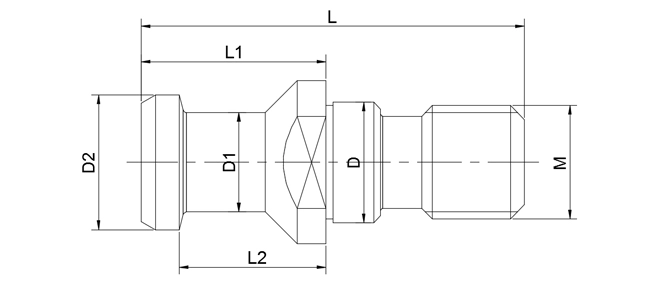

Size | D | D1 | D2 | M | L | L1 | L2 |
SK-30A | 13 | 9 | 13 | M12 | 44 | 24 | 19 |
SK-40A | 17 | 14 | 19 | M16 | 54 | 26 | 20 |
SK-50A | 25 | 21 | 28 | M24 | 74 | 34 | 25 |
SK-30AO | 13 | 9 | 13 | M12 | 44 | 24 | 19 |
SK-40AO | 17 | 14 | 19 | M16 | 54 | 26 | 20 |
SK-50AO | 25 | 21 | 28 | M24 | 74 | 34 | 25 |
SK-30B | 13 | 9 | 13 | M12 | 44 | 24 | 19 |
SK-40B | 17 | 14 | 19 | M16 | 54 | 26 | 20 |
SK-50B | 25 | 21 | 28 | M24 | 74 | 34 | 25 |
SK-30BO | 13 | 9 | 13 | M12 | 44 | 24 | 19 |
SK-40BO | 17 | 14 | 19 | M16 | 54 | 26 | 20 |
SK-50BO | 25 | 21 | 28 | M24 | 74 | 34 | 25 |
