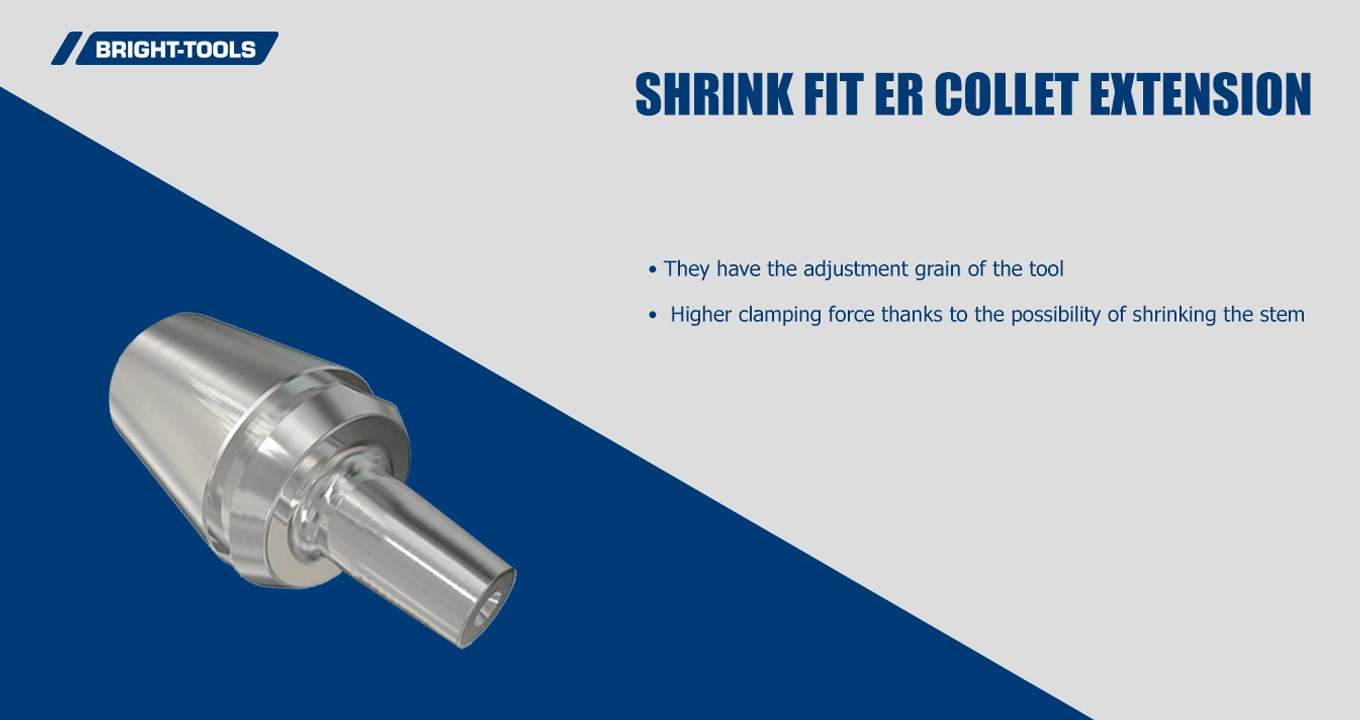

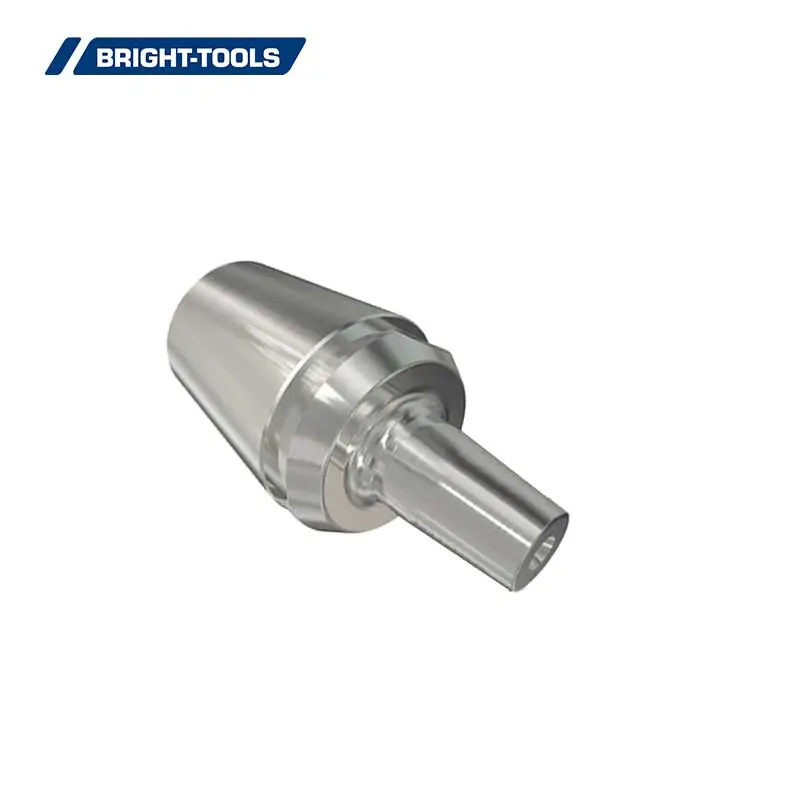

Shrink Fit ER Collet Extension

Standard Shrink fit Chuck uses Heat resistant hot-working steel to clamp HSS and solid carbide tools via steel thermal expansion character. 0,003 mm accuracy and precise taper tolerances improve tool life, subsequent fine balancing brings Better surface quality and Low wear to the machine spindle.

Buy Shrink Fit ER Collet Extension 

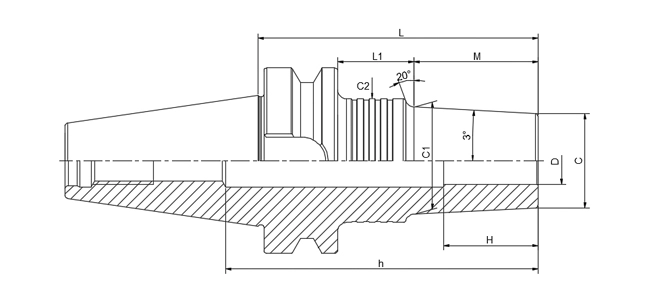

SPECIFICATION OF SHRINK FIT ER COLLET EXTENSION

Size	Collet Size	d	D1	A	L
ER16-SFS03-35	ER16	3	16	41.7	35
ER16-SFS04-35	ER16	4	16	41.7	35
ER16-SFS05-35	ER16	5	16	41.7	35
ER16-SFS06-35	ER16	6	16	41.7	35
ER16-SFS08-35	ER16	8	16	41.7	35
ER16-SFS10-35	ER16	10	16	41.7	35

ER20-SFS03-35	ER20	3	20	42.52	35
ER20-SFS04-35	ER20	4	20	42.52	35
ER20-SFS05-35	ER20	5	20	42.52	35
ER20-SFS06-35	ER20	6	20	42.52	35
ER20-SFS08-35	ER20	8	20	42.52	35
ER20-SFS10-35	ER20	10	20	42.52	35
ER20-SFS12-35	ER20	12	20	42.52	35
ER25-SFS03-35	ER25	3	25	43	35

ER25-SFS04-35	ER25	4	25	43	35
ER25-SFS05-35	ER25	5	25	43	35
ER25-SFS06-35	ER25	6	25	43	35
ER25-SFS08-35	ER25	8	25	43	35
ER25-SFS10-35	ER25	10	25	43	35
ER25-SFS12-35	ER25	12	25	43	35
ER25-SFS14-35	ER25	14	25	43	35
ER25-SFS16-35	ER25	16	25	43	35

ER32-SFS03-35	ER32	3	32	44	35
ER32-SFS04-35	ER32	4	32	44	35
ER32-SFS05-35	ER32	5	32	44	35
ER32-SFS06-35	ER32	6	32	44	35
ER32-SFS08-35	ER32	8	32	44	35
ER32-SFS10-35	ER32	10	32	44	35
ER32-SFS12-35	ER32	12	32	44	35
ER32-SFS14-35	ER32	14	32	44	35
ER32-SFS16-35	ER32	16	32	44	35
ER32-SFS18-35	ER32	18	32	44	35
ER32-SFS20-35	ER32	20	32	44	35

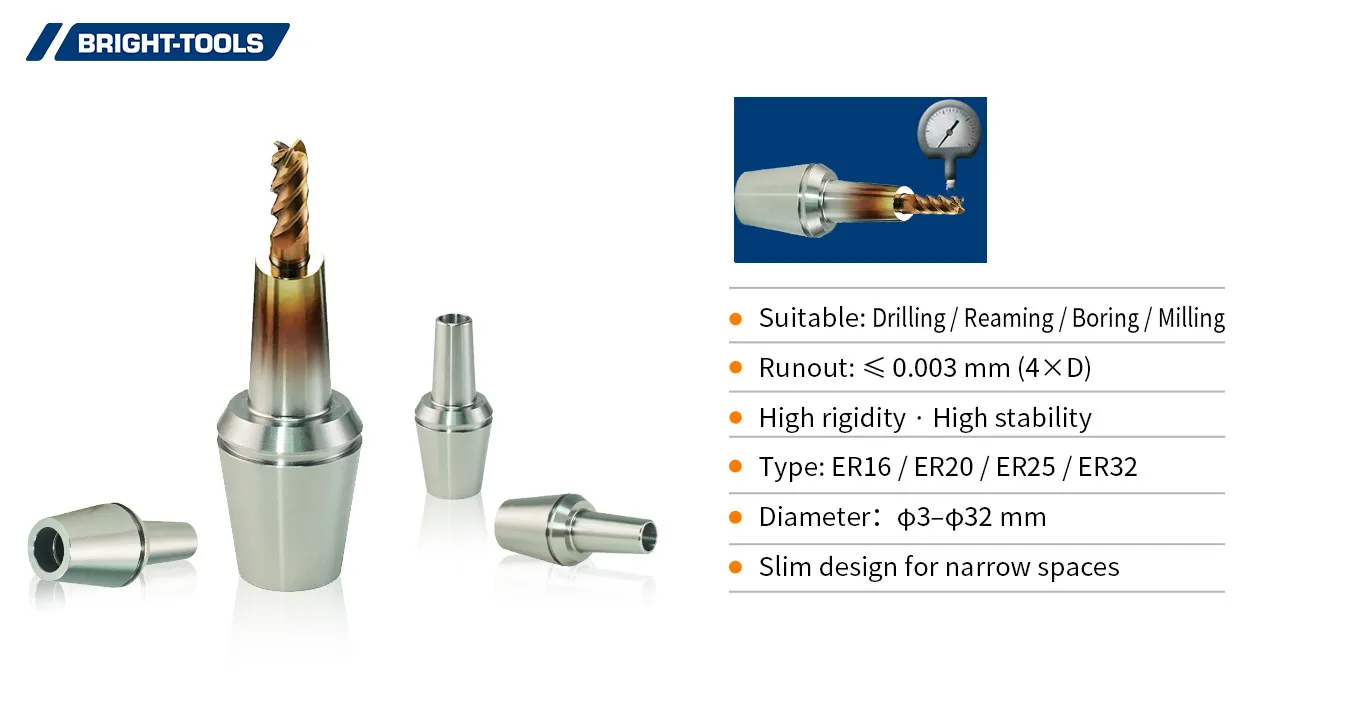

Advantages of Using Shrink Fit ER Collet

Name: Shrink Fit ER Collet Extension
Brand: Shandong Jinjie Machinery Co., Ltd.

High Accuracy and Precision: Shrink fit collets offer exceptional accuracy and precision in holding workpieces, ensuring that they are securely and accurately positioned during machining operations.

Repeatability: Shrink fit collets provide consistent and repeatable clamping force, which is essential for maintaining high-quality finishes and tolerances.

Versatility: These collets can accommodate a wide range of workpiece sizes and shapes, making them versatile tools for various machining applications.

High Clamping Force: Shrink fit collets can exert a high clamping force, ensuring that workpieces remain securely held during machining, even under heavy loads.

Minimal Runout: Shrink fit collets typically exhibit minimal runout, which is crucial for achieving accurate and precise machining results.
