vdi round soft blank form a2 1 Round Blank Form A2

Round Blank Form A2

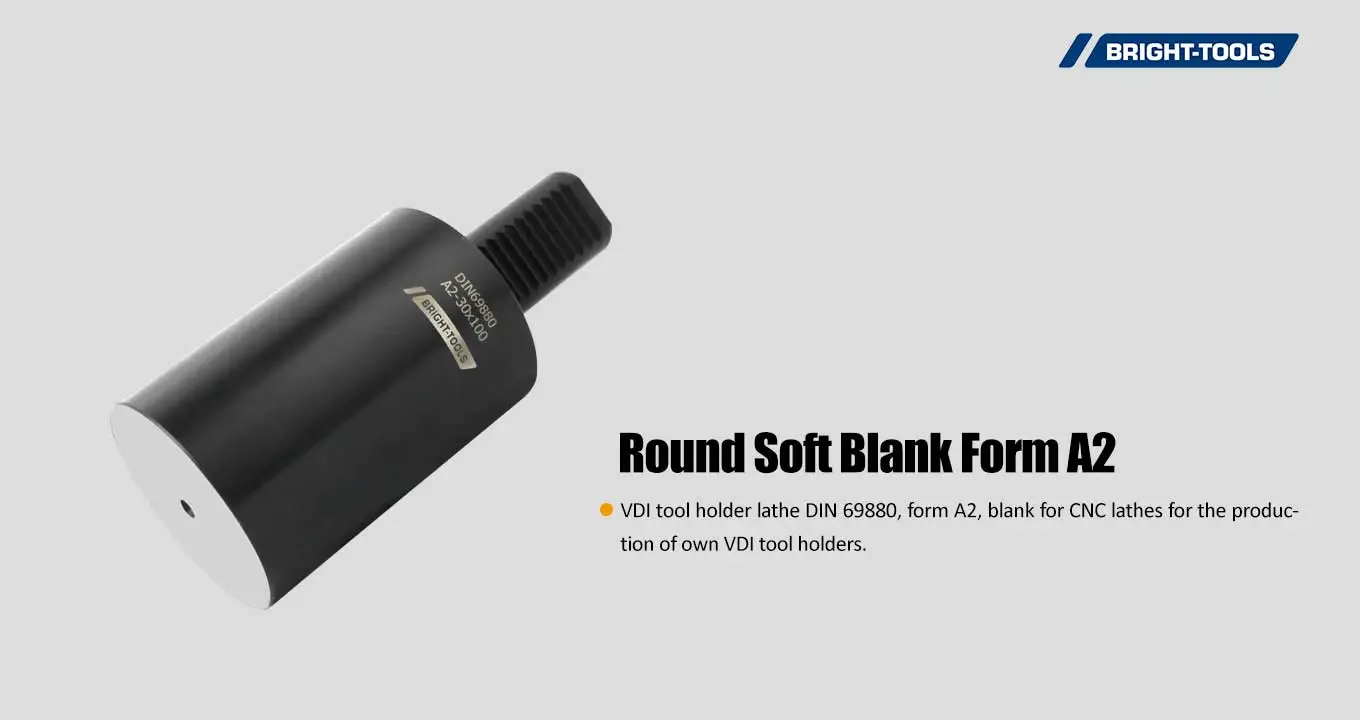

VDI tool holder lathe DIN 69880, form A2, blank for CNC lathes for the production of own VDI tool holders.

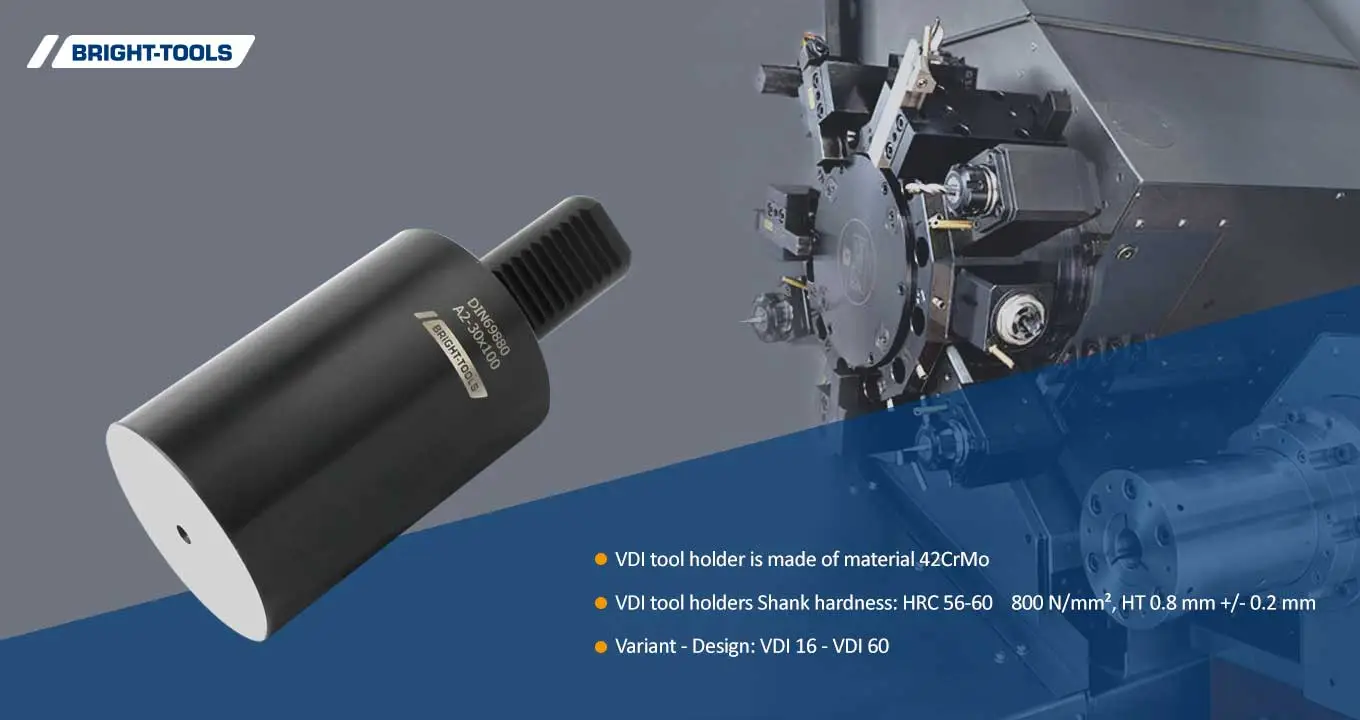

VDI tool holder is made of material 42CrMo.

VDI tool holders Shank hardness: HRC 56-60; 800 N/mm², HT 0.8 mm +/- 0.2 mm.

Variant - Design: VDI 16 - VDI 60.

Buy Round Blank Form A2

TECHNICAL DRAWING OF ROUND SOFT BLANK FORM A2

High Concentricity
Round Soft Blank Form A2

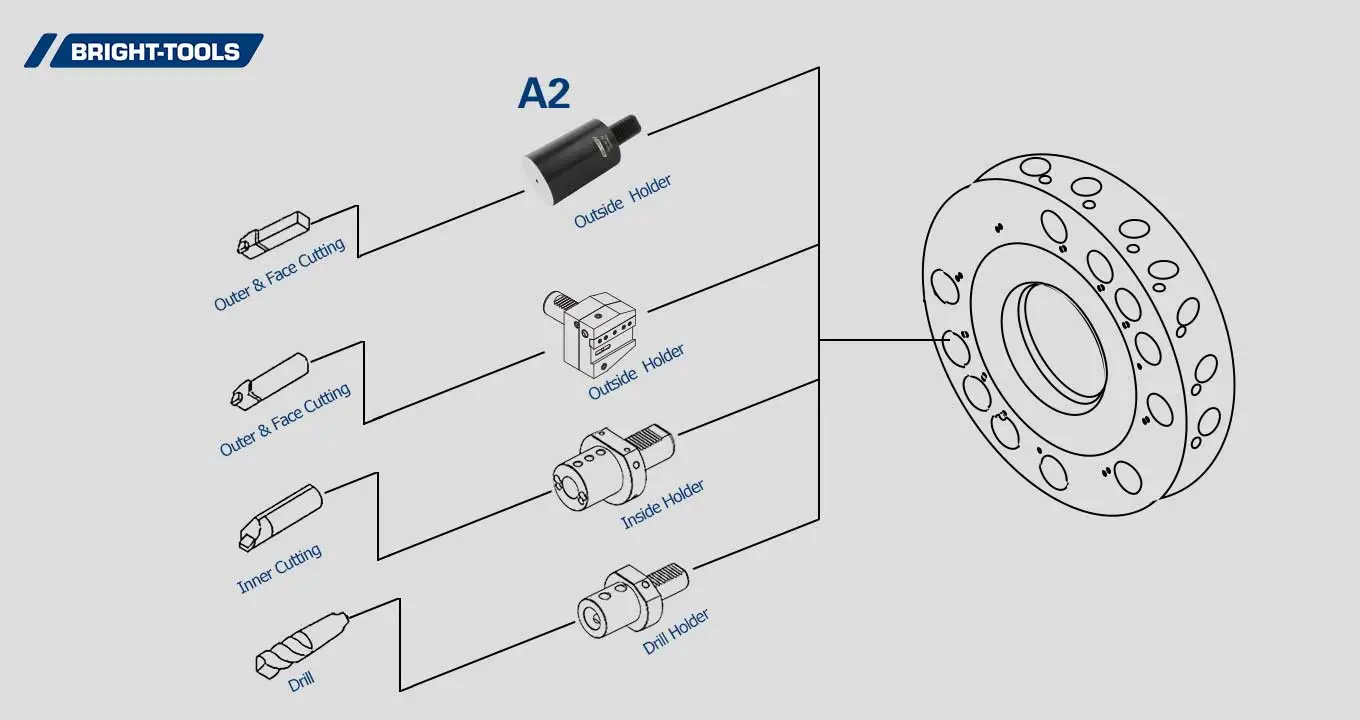

Product Structure

High Concentricity Of Cnc Live Tooling

Round Soft Blank Form A2 Of Mt Live Tooling

Product Structure Of Coolant Driven Live Tooling

SPECIFICATION OF ROUND SOFT BLANK FORM A2

SPECIFICATION OF ROUND SOFT BLANK FORM A2

Sized1d2l1
A2-16x60164060
A2-20x70205070
A2-25x80255880
A2-25x2002558200
A2-30x1003068100
A2-30x2403068240
A2-40x1204083120
A2-40x3204083320
A2-50x1355098135
A2-50x4005098400
A2-60x15060123150
A2-60x48060123480
A2-80x50080158500
