vdi rectangular soft blank form a1 1

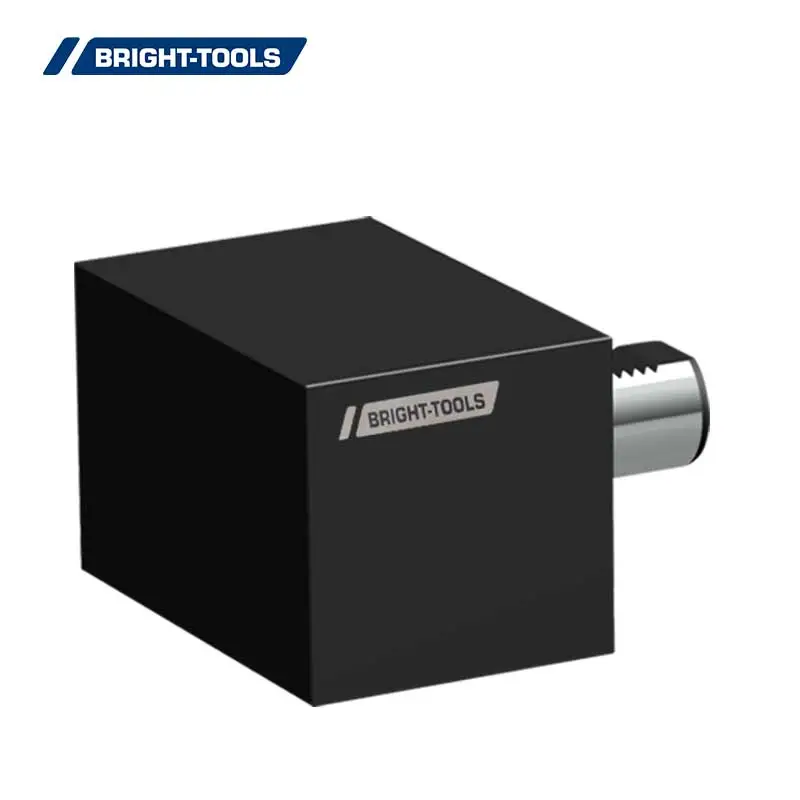

vdi rectangular soft blank form a1 1 Rectangular Blank Form A1

Rectangular Blank Form A1

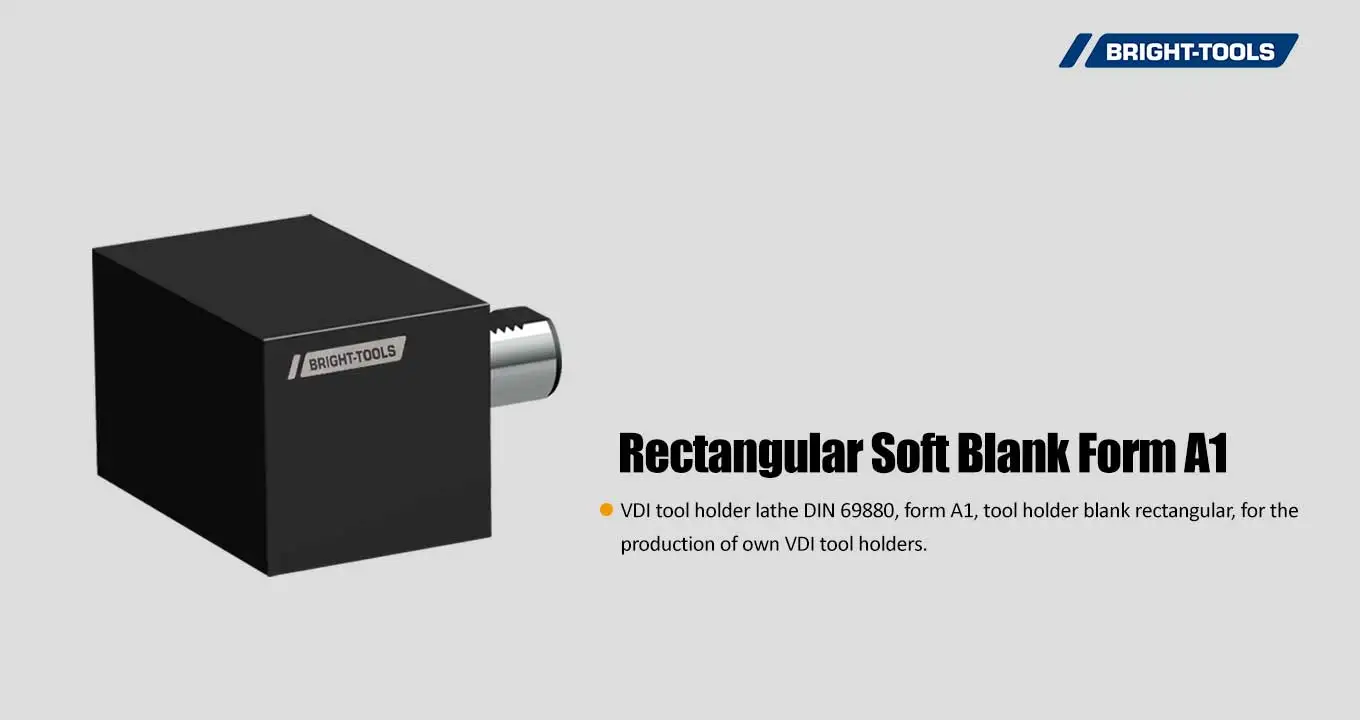

VDI tool holder lathe DIN 69880, form A1, tool holder blank rectangular, for the production of own VDI tool holders.

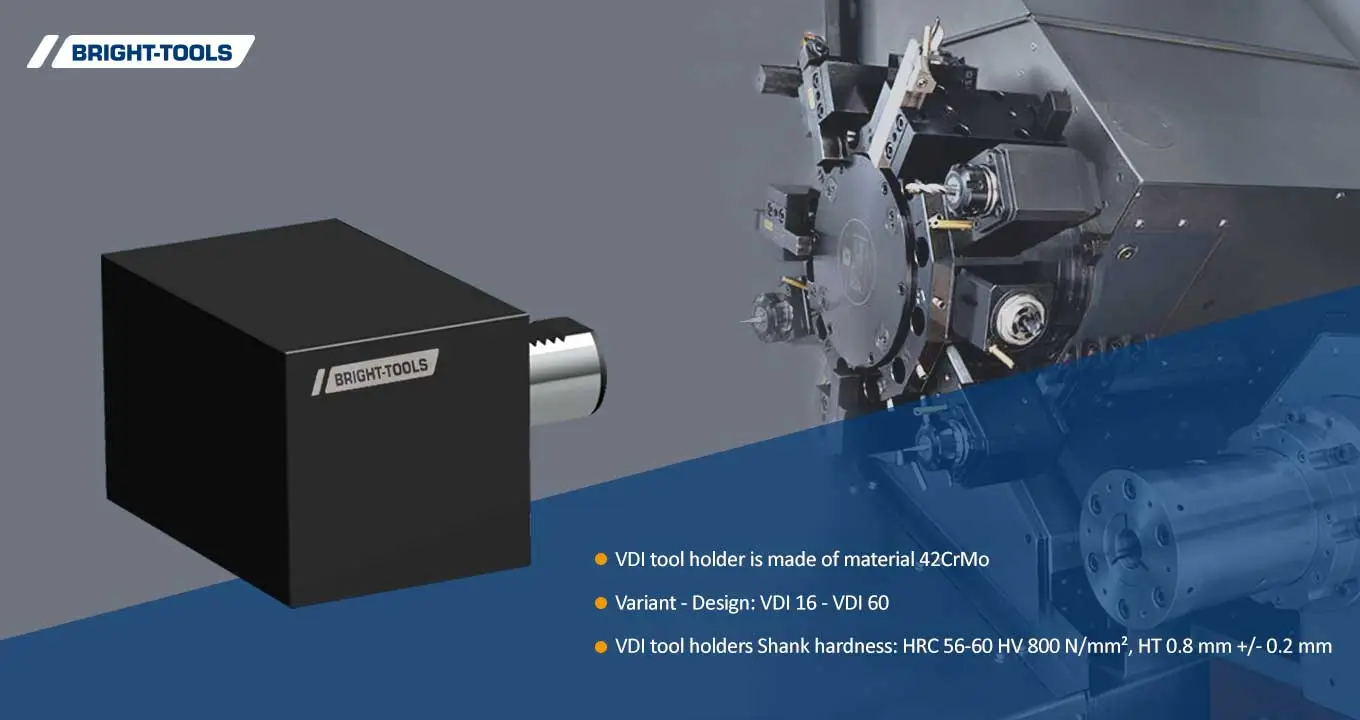

VDI tool holder is made of material 42CrMo.

VDI tool holders Shank hardness: HRC 56-60; HV 800 N/mm², HT 0.8 mm +/- 0.2 mm.

Variant - Design: VDI 16 - VDI 60.

Buy Rectangular Blank Form A1

TECHNICAL DRAWING OF RECTANGULAR SOFT BLANK FORM A1

High Concentricity

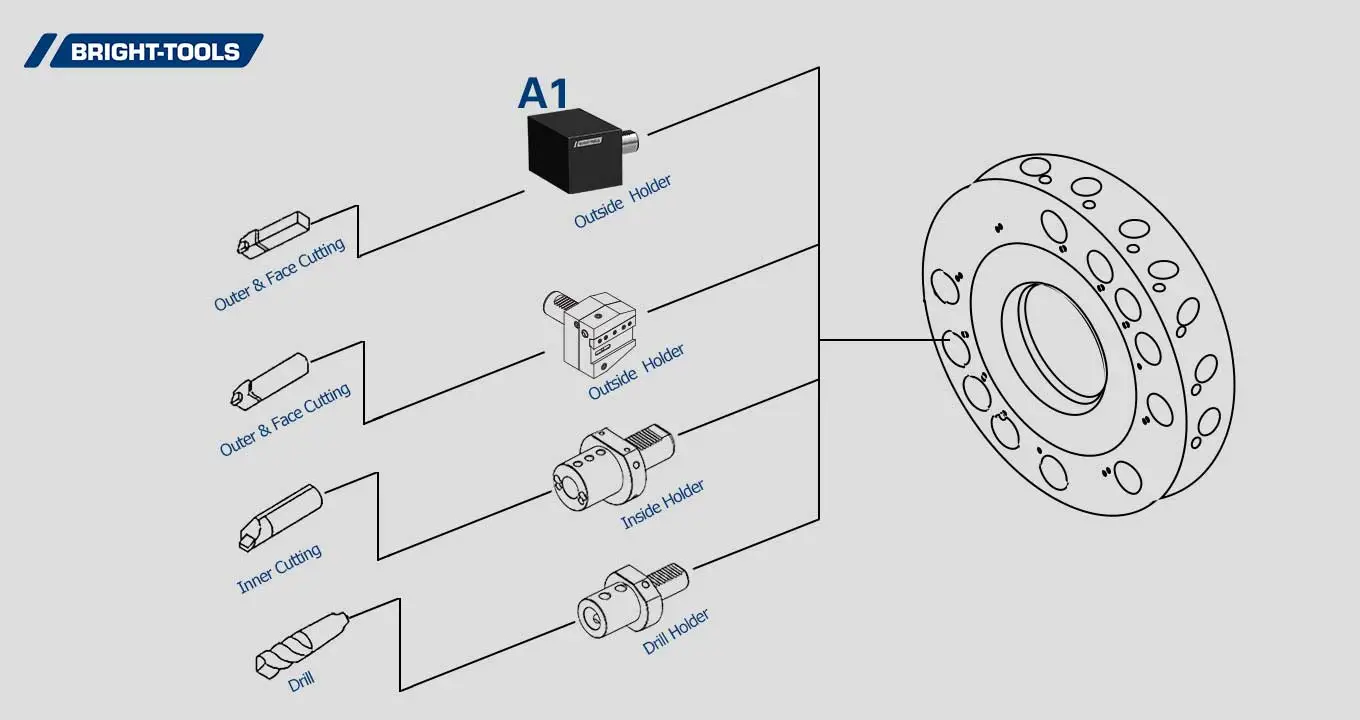

Product Structure
Rectangular Soft Blank Form A1

High Concentricity Of Cnc Live Tooling

Product Structure Of Mt Live Tooling

Rectangular Soft Blank Form A1 Of Coolant Driven Live Tooling

SPECIFICATION OF RECTANGULAR SOFT BLANK FORM A1

SPECIFICATION OF RECTANGULAR SOFT BLANK FORM A1

Sized1l1l2l3
A1-16x4416447844
A1-20x65206510060
A1-25x75257510060
A1-30x85308513076
A1-40x1004010015196
A1-50x12550125160120
A1-60x16060160165125
A1-80x20080200220160
