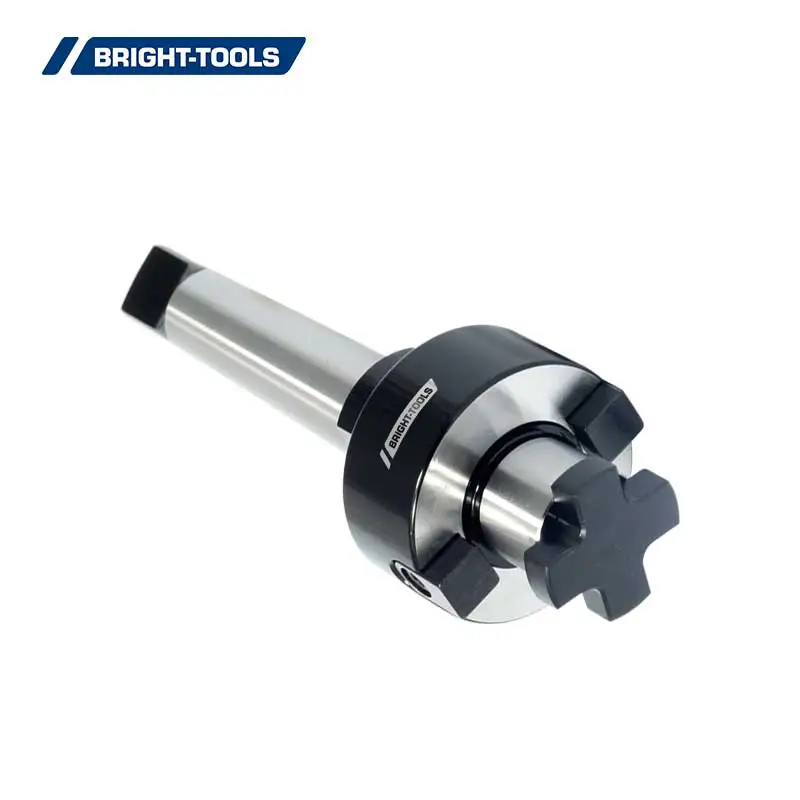

MTA Morse Taper Face Mill Holders
MTA FMB For mounting milling cutters with transverse groove.
With cross head retaining screw, dirvers.

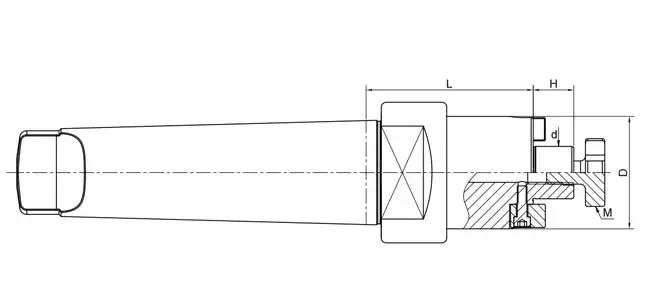

Size | d | D | L | H | M |
MTA2-FMB16-30 | 16 | 38 | 30 | 17 | M8 |
MTA2-FMB22-30 | 22 | 48 | 30 | 19 | M10 |
MTA2-FMB27-30 | 27 | 58 | 30 | 21 | M12 |
MTA3-FMB16-30 | 16 | 38 | 30 | 17 | M8 |
MTA3-FMB22-30 | 22 | 48 | 30 | 19 | M10 |
MTA3-FMB27-30 | 27 | 58 | 30 | 21 | M12 |
MTA3-FMB32-30 | 32 | 78 | 30 | 24 | M16 |
MTA4-FMB16-32 | 16 | 38 | 32 | 17 | M8 |
MTA4-FMB22-32 | 22 | 48 | 32 | 19 | M10 |
MTA4-FMB27-32 | 27 | 58 | 32 | 21 | M12 |
MTA4-FMB32-32 | 32 | 78 | 32 | 24 | M16 |
MTA4-FMB40-32 | 40 | 88 | 32 | 27 | M20 |
