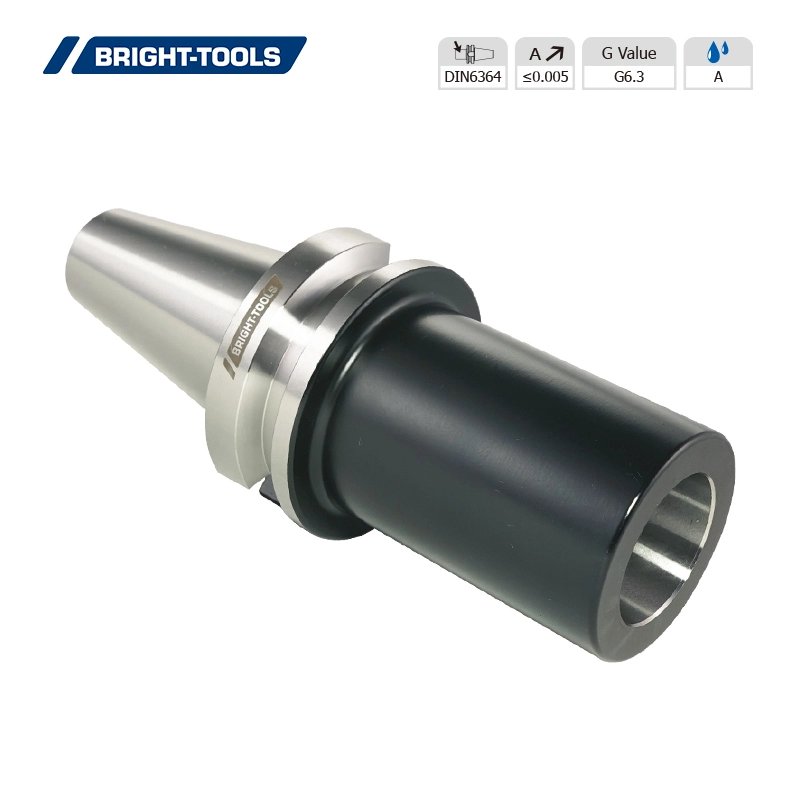

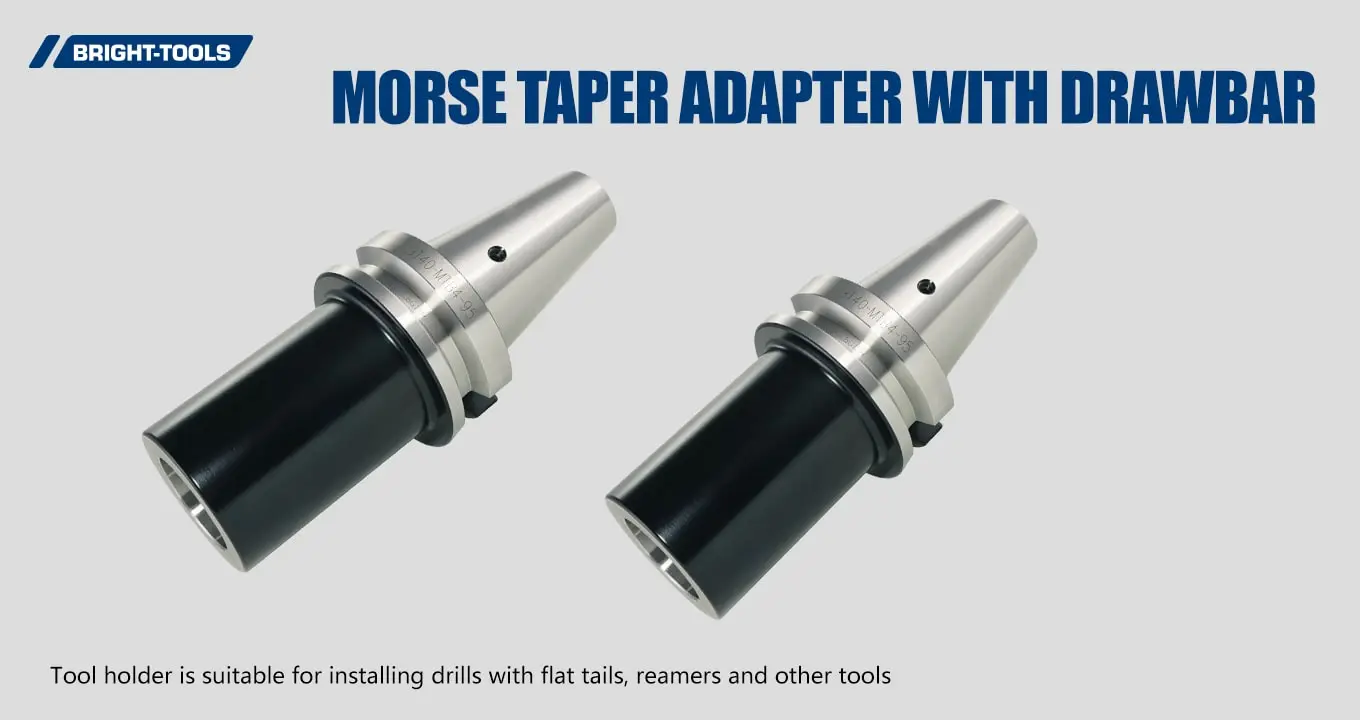

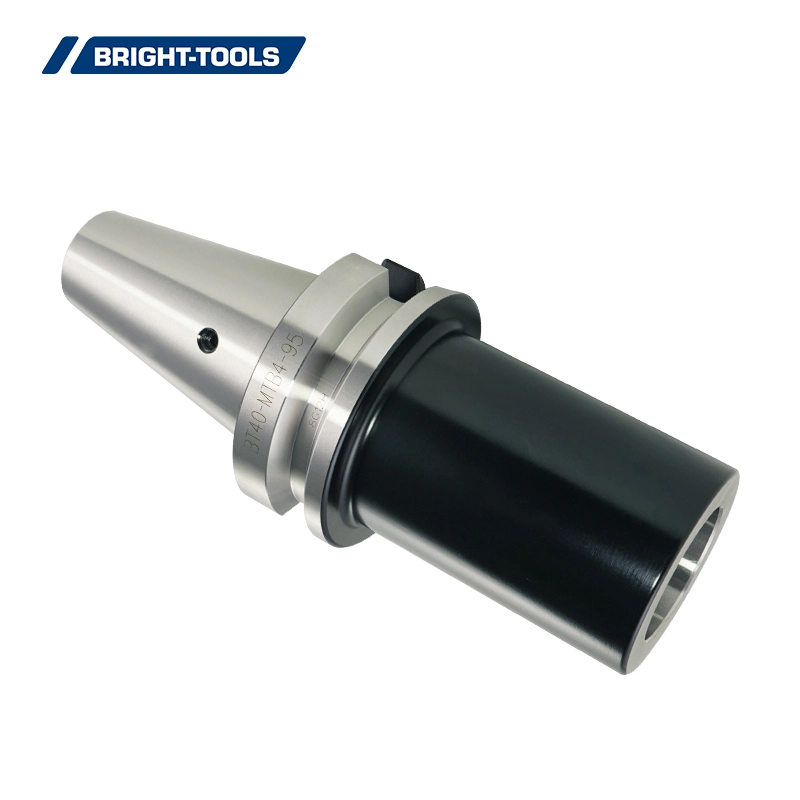

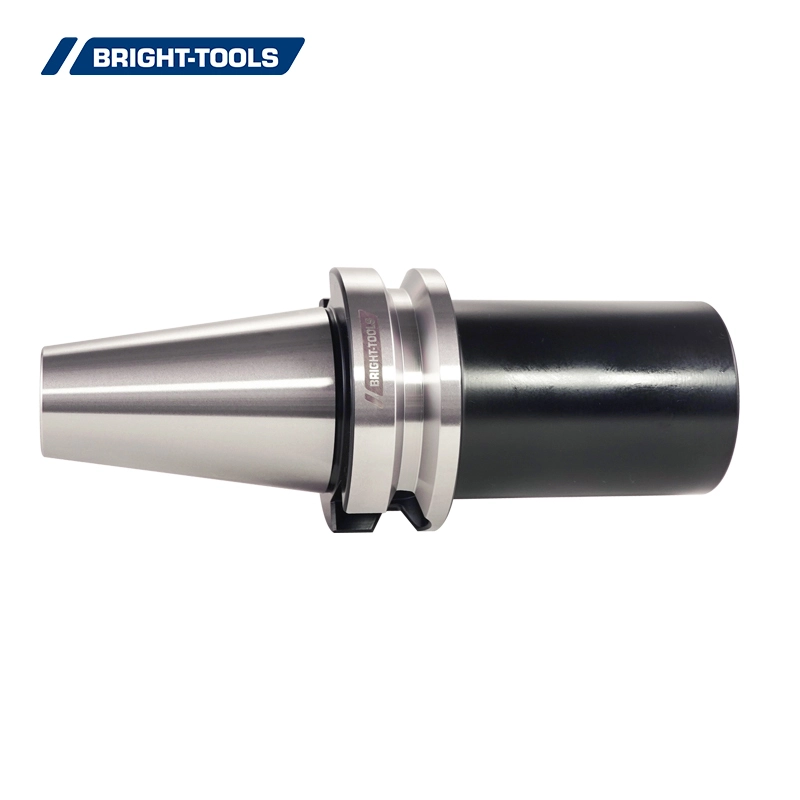

Morse Taper Adapter with Drawbar
BT-MTB tool holder is suitable for installing the tools with threads
Size | MT. NO. | D | L |
BT40-MTB1-50 | 1 | 25 | 50 |
BT40-MTB2-50 | 2 | 32 | 50 |
BT40-MTB3-70 | 3 | 40 | 70 |
BT40-MTB4-95 | 4 | 48 | 95 |
BT50-MTB1-45 | 1 | 25 | 45 |
BT50-MTB2-60 | 2 | 32 | 60 |
BT50-MTB3-65 | 3 | 40 | 65 |
BT50-MTB4-70 | 4 | 48 | 70 |
BT50-MTB5-120 | 5 | 63 | 120 |
