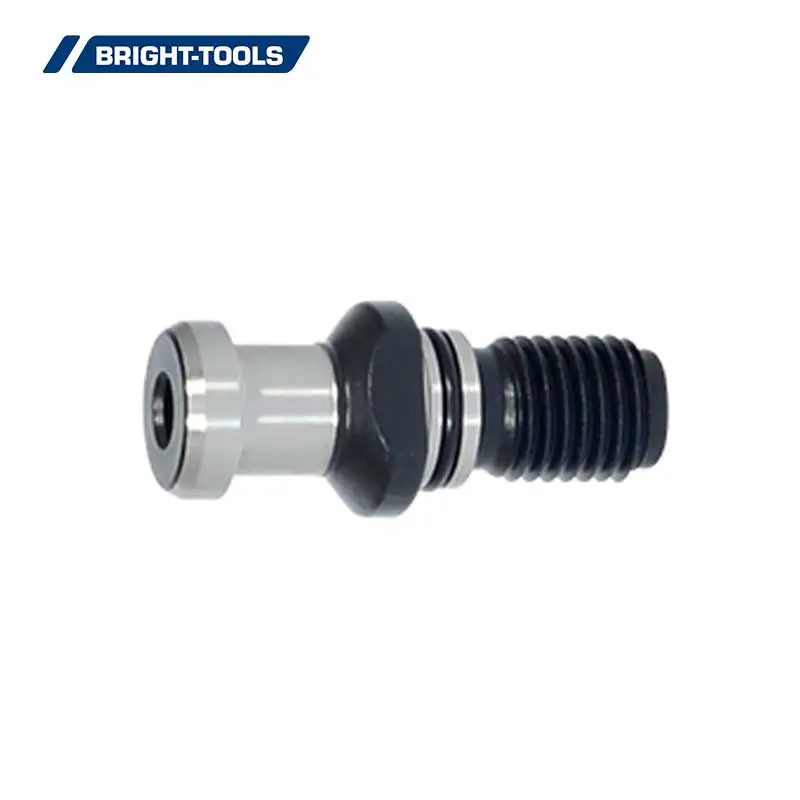

Mazak CAT Pull Stud
Used for Mazak machine.

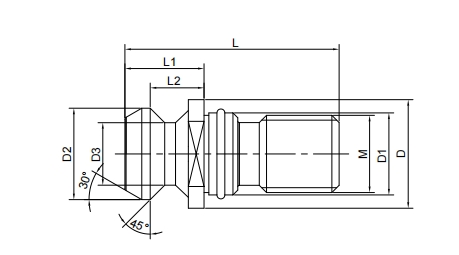

Size | L | L1 | D2 | D1 | D3 | D | d | M |
Mazak-BT40 C | 44.1 | 19.1 | 18.8 | 12.45 | 22 | 17 | 7 | M16 |
Mazak-BT50 C | 65.2 | 25.2 | 29 | 20.83 | 37 | 25 | 10 | M24 |
Mazak-BT40 CO | 44.1 | 19.1 | 18.8 | 12.45 | 22 | 17 | 7 | M16 |
Mazak-BT50 CO | 65.2 | 25.2 | 29 | 20.83 | 37 | 25 | 10 | M24 |
