ISO 7388 Pull Stud
Used for DIN69871 spindle, the connection dimension is nearly same with SK pull stud, but SK pull stud can not been used on ISO Spindlle.

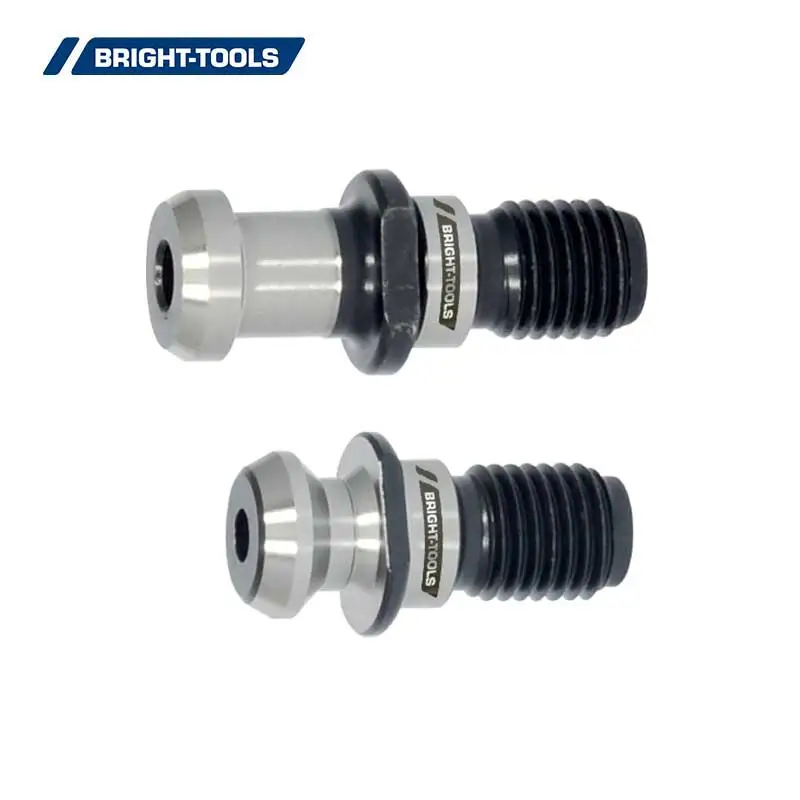

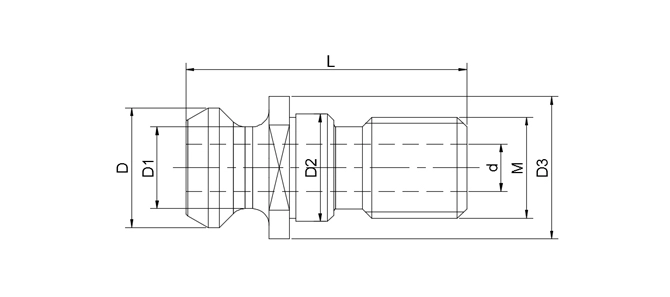

Size | D3 | D2 | D1 | D | M | L | d |
ISO7388-40A | 23 | 17 | 14 | 19 | M16 | 54 | 7 |
ISO7388-50A | 38 | 25 | 21 | 28 | M24 | 74 | 10 |
ISO7388-40B | 22.5 | 17 | 12.95 | 18.95 | M16 | 44.4 | 7.35 |
ISO7388-50B | 37 | 25 | 19.6 | 29.1 | M24 | 66.55 | 11.55 |
