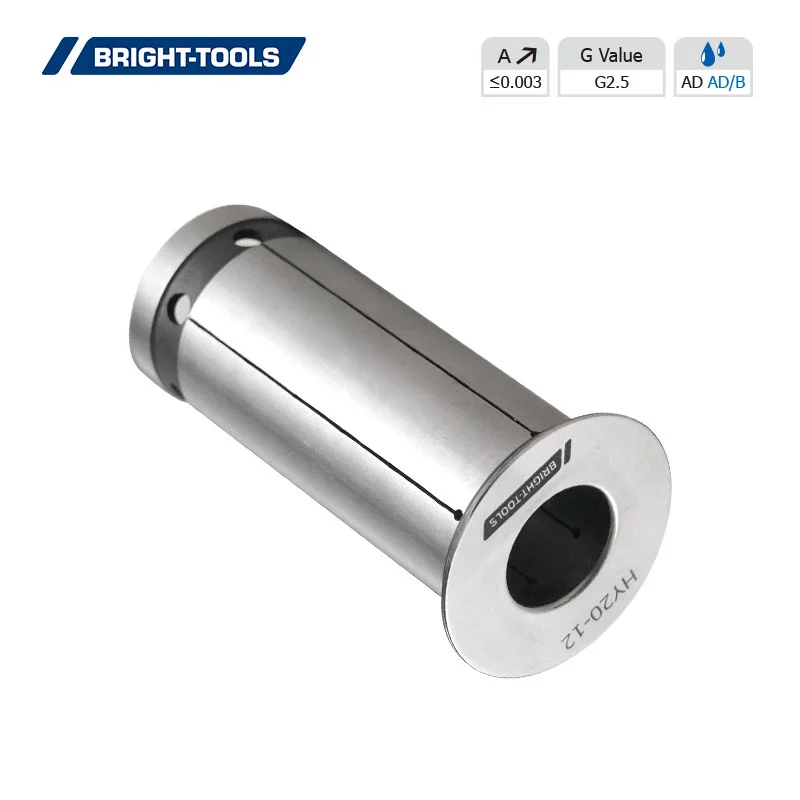

Hydraulic Sealed Collet
Hydraulic Sealed Collet, Run-out accuracy≤ 0.003 mm.

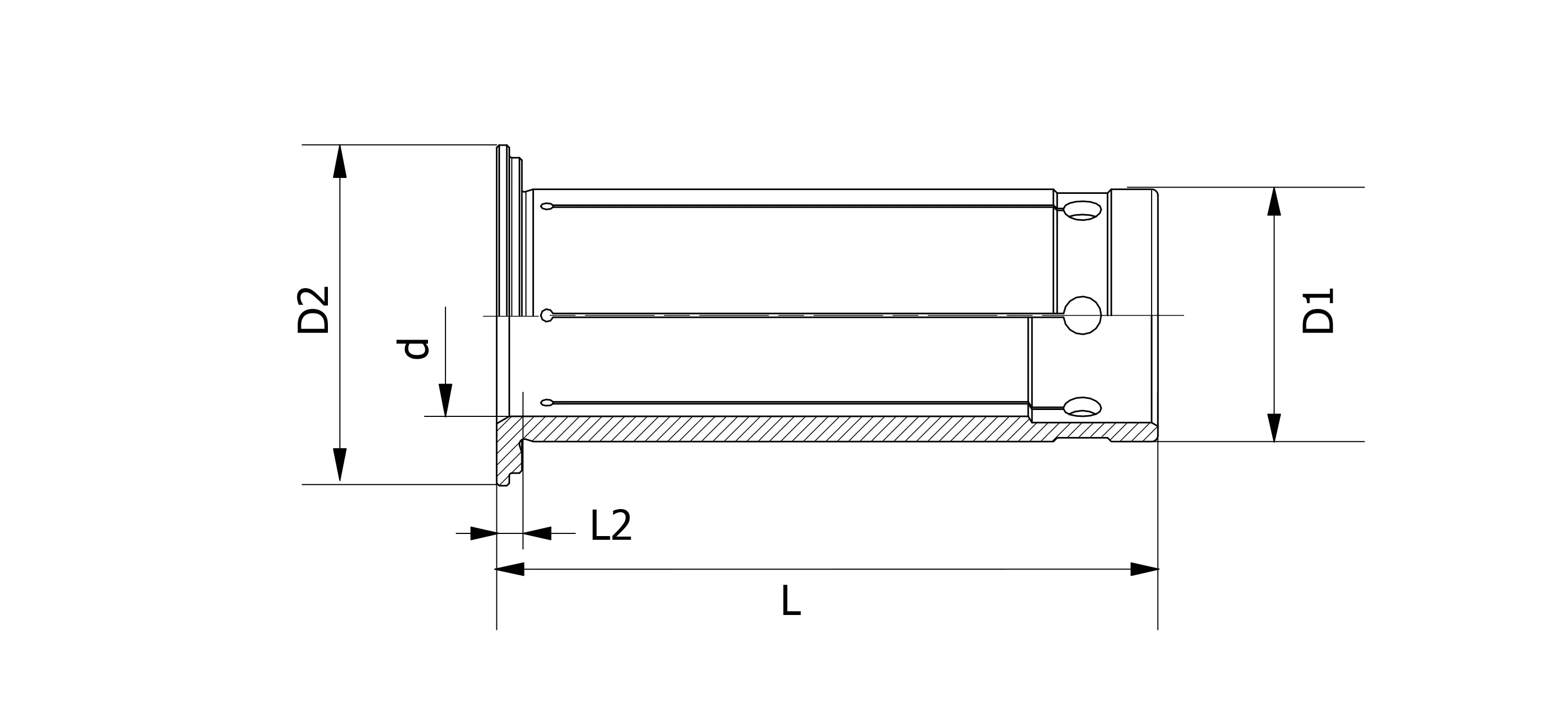

Size | d | D1 | D2 | L | L2 |
HY12-3 | 3 | 12 | 18 | 47 | 2 |
HY12-4 | 4 | 12 | 18 | 47 | 2 |
HY12-5 | 5 | 12 | 18 | 47 | 2 |
HY12-6 | 6 | 12 | 18 | 47 | 2 |
HY12-7 | 7 | 12 | 18 | 47 | 2 |
HY12-8 | 8 | 12 | 18 | 47 | 2 |
HY20-3 | 3 | 20 | 27 | 52.5 | 2 |
HY20-4 | 4 | 20 | 27 | 52.5 | 2 |
HY20-5 | 5 | 20 | 27 | 52.5 | 2 |
HY20-6 | 6 | 20 | 27 | 52.5 | 2 |
HY20-7 | 7 | 20 | 27 | 52.5 | 2 |
HY20-8 | 8 | 20 | 27 | 52.5 | 2 |
HY20-9 | 9 | 20 | 27 | 52.5 | 2 |
HY20-10 | 10 | 20 | 27 | 52.5 | 2 |
HY20-11 | 11 | 20 | 27 | 52.5 | 2 |
HY20-12 | 12 | 20 | 27 | 52.5 | 2 |
HY20-13 | 13 | 20 | 27 | 52.5 | 2 |
HY20-14 | 14 | 20 | 27 | 52.5 | 2 |
HY20-15 | 15 | 20 | 27 | 52.5 | 2 |
HY20-16 | 16 | 20 | 27 | 52.5 | 2 |
HY32-6 | 6 | 32 | 39 | 63.5 | 3 |
HY32-8 | 8 | 32 | 39 | 63.5 | 3 |
HY32-10 | 10 | 32 | 39 | 63.5 | 3 |
HY32-12 | 12 | 32 | 39 | 63.5 | 3 |
HY32-14 | 14 | 32 | 39 | 63.5 | 3 |
HY32-16 | 16 | 32 | 39 | 63.5 | 3 |
HY32-18 | 18 | 32 | 39 | 63.5 | 3 |
HY32-20 | 20 | 32 | 39 | 63.5 | 3 |
HY32-25 | 25 | 32 | 39 | 63.5 | 3 |
