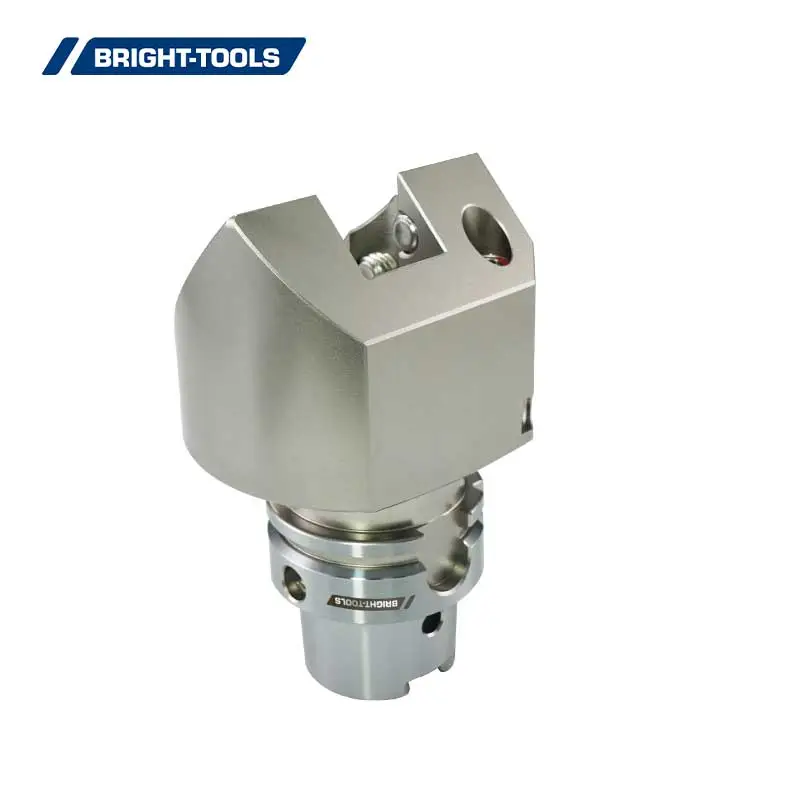

Name: HSK･T Turning Tools SBN for External and Facing
Brand: Shandong Jinjie Machinery Co., Ltd.

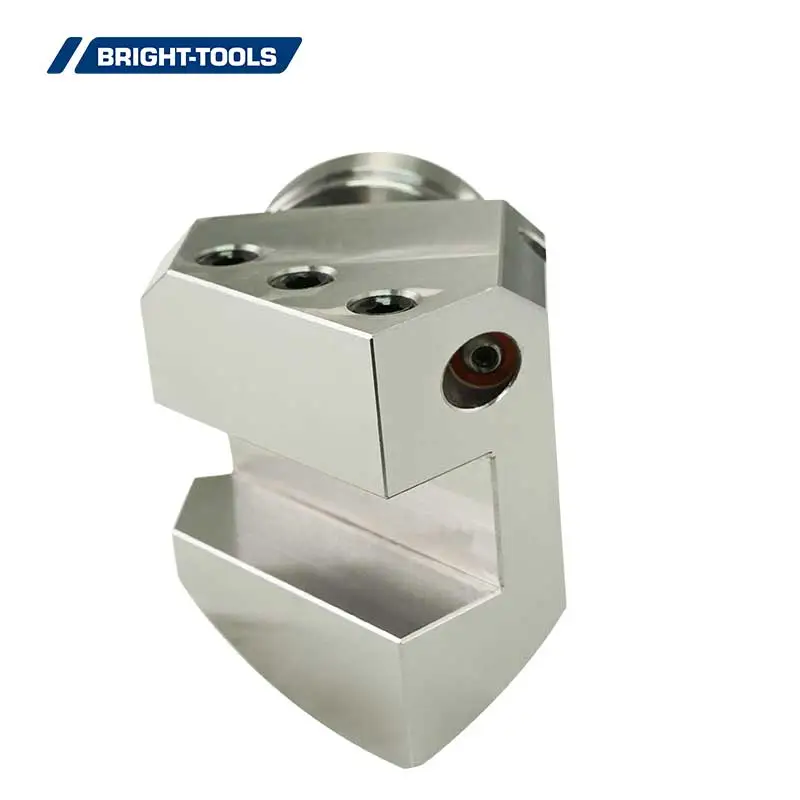

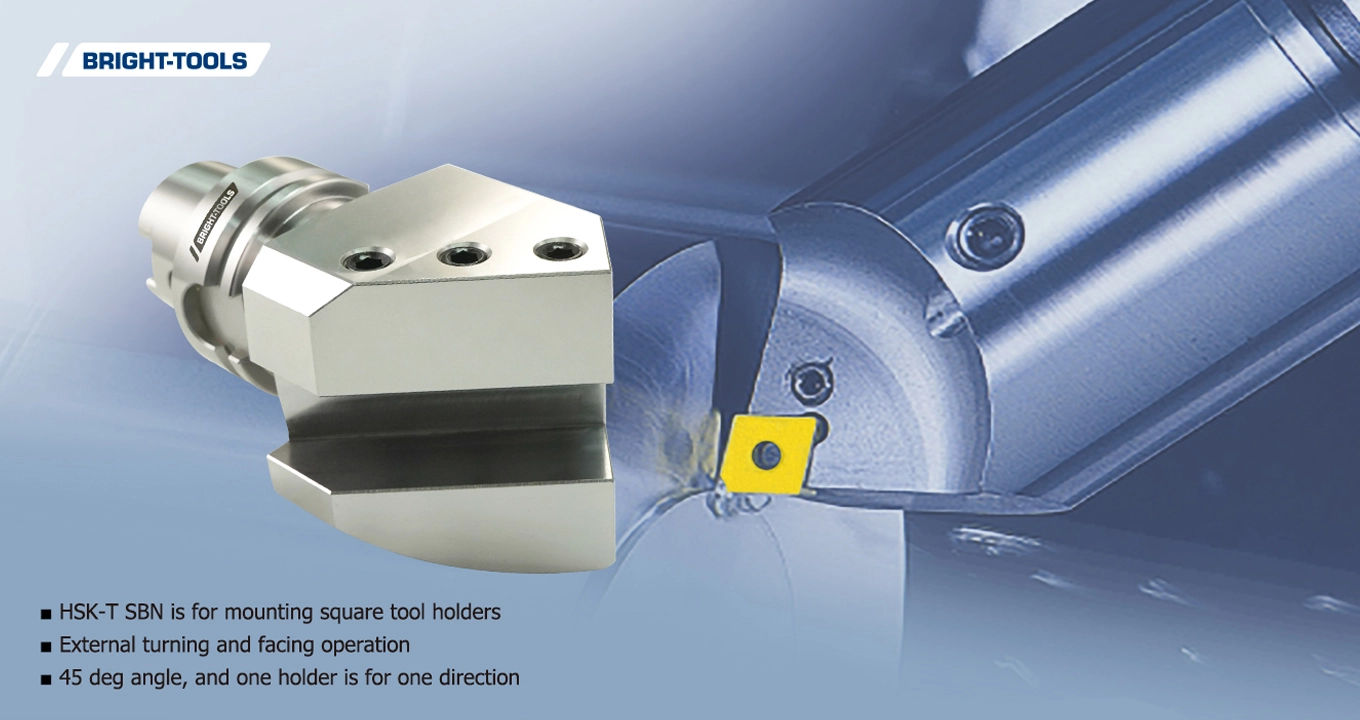

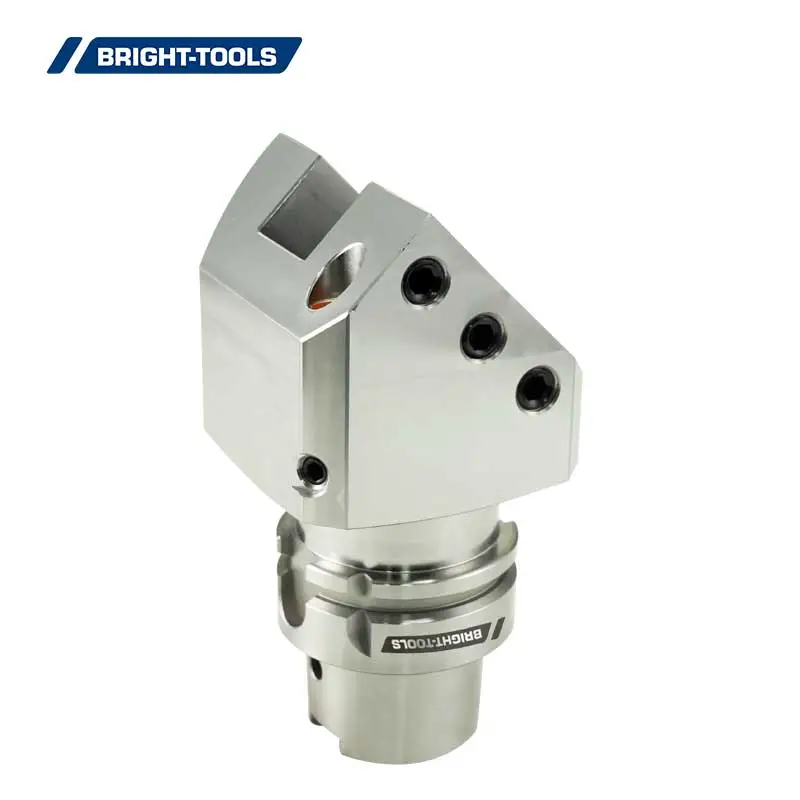

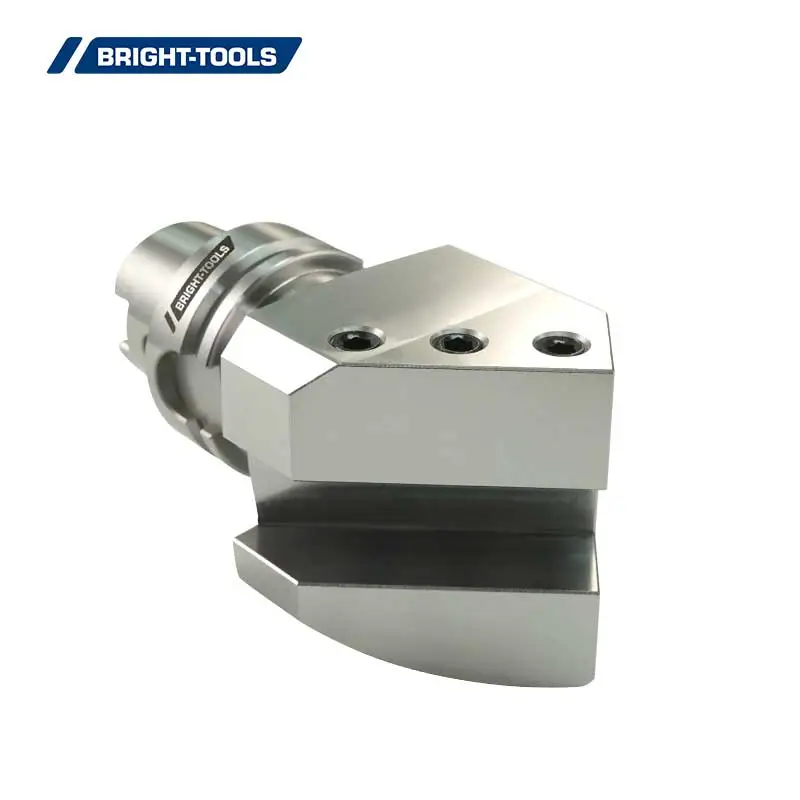

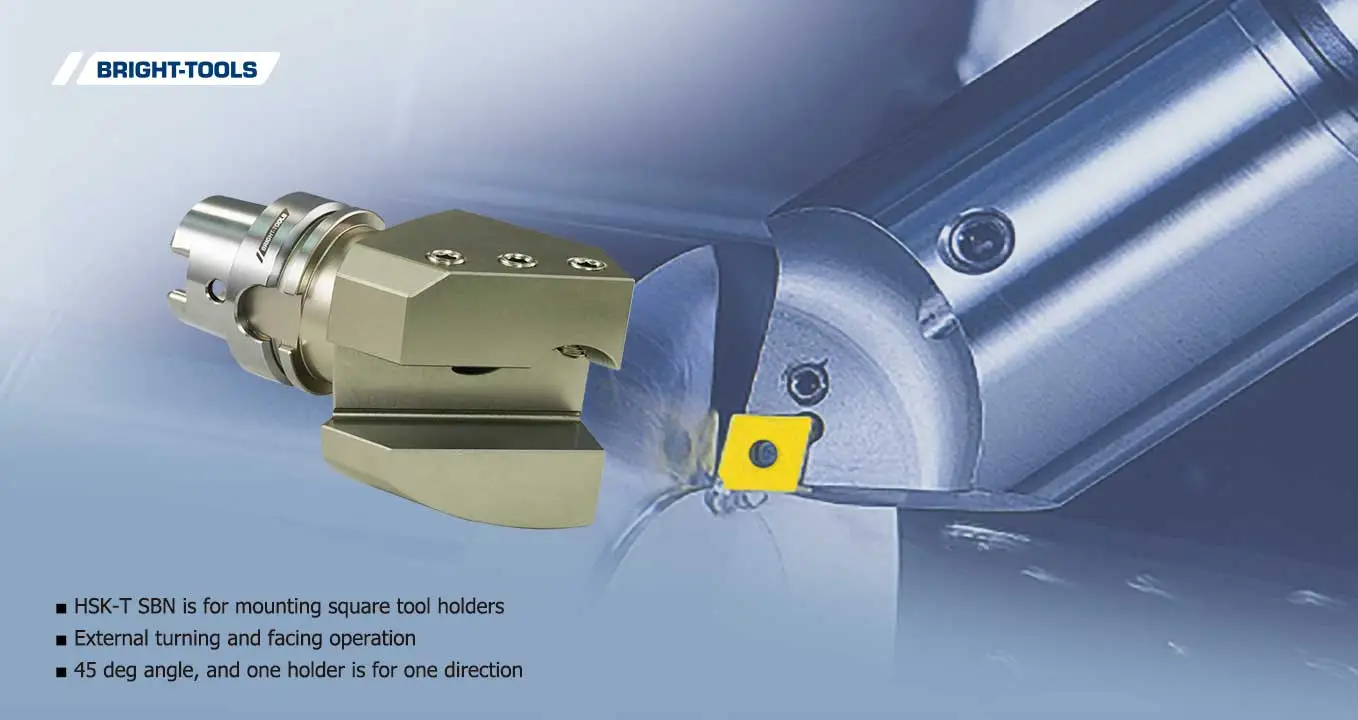

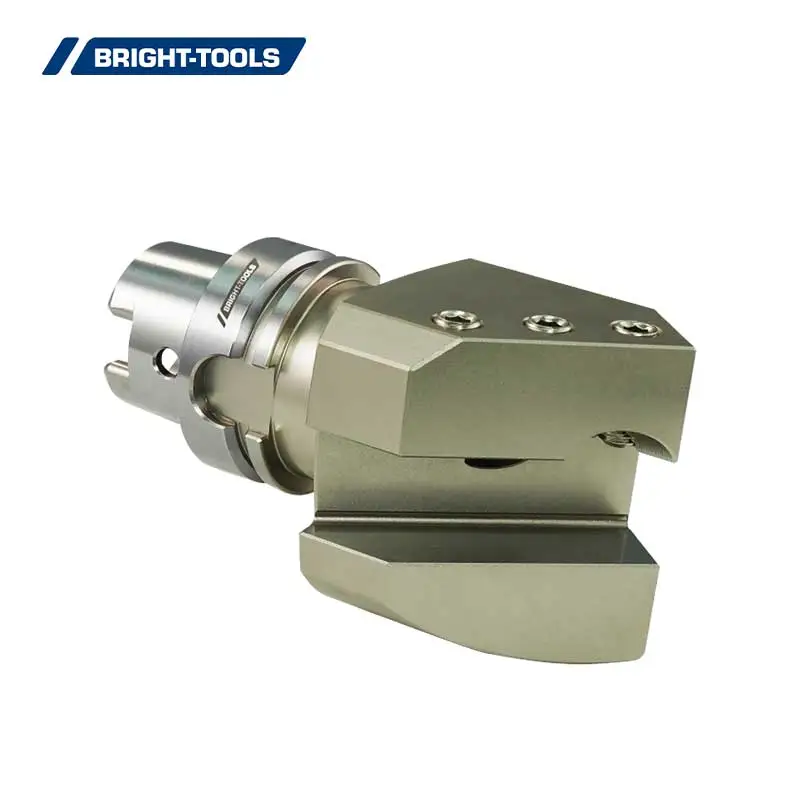

HSK-T SBN is for mounting square tool holders, for external turning and facing operation, but it is with 45 deg angle, and one holder is for one direction, R is for the right hand and L is for the left hand.

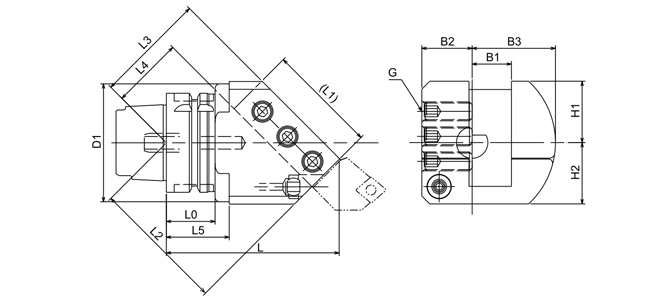

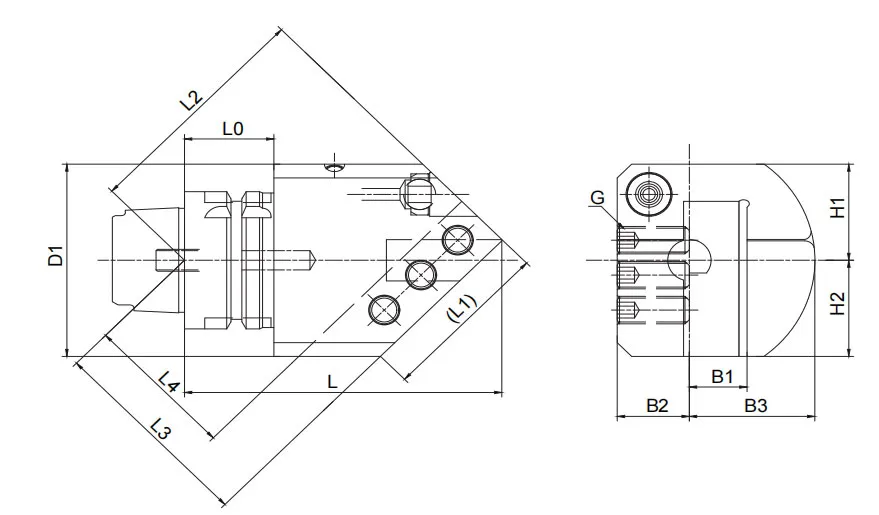

SPECIFICATION OF HSK･T TURNING TOOLS FOR EXTERNAL AND FACING

Size	L	L1	L2	L3	L4	D1	B1	B2	B3	H1	H2	G
HSK50T-SBN2020R-120	120	60	83.1	72.8	52.8	－	20	25	43.5	35	35	M10
HSK50T-SBN2020L-120	120	60	83.1	72.8	52.8	－	20	25	43.5	35	35	M10

HSK63T-SBN2020R-120	120	60	83.1	72.8	52.8	－	20	32	43.5	35	35	M10
HSK63T-SBN2020L-120	120	60	83.1	72.8	52.8	－	20	32	43.5	35	35	M10
HSK63T-SBN2525R-120	120	70	85.2	70.8	45.8	90	25	32	53	39	39	M12
HSK63T-SBN2525L-120	120	70	85.2	70.8	45.8	90	25	32	53	39	39	M12

HSK100T-SBN2525R-145	145	70	102.9	88.5	63.5	－	25	32	59	43	43	M12
HSK100T-SBN2525L-145	145	70	102.9	88.5	63.5	－	25	32	59	43	43	M12
HSK100T-SBN3232R-150	150	85	109.9	89	59	－	32	37	68.5	48	43	M14
HSK100T-SBN3232L-150	150	85	109.9	89	59	－	32	37	68.5	48	43	M14
