Name: HSK･T Turning Tools SBV for External and Cut-off
Brand: Shandong Jinjie Machinery Co., Ltd.

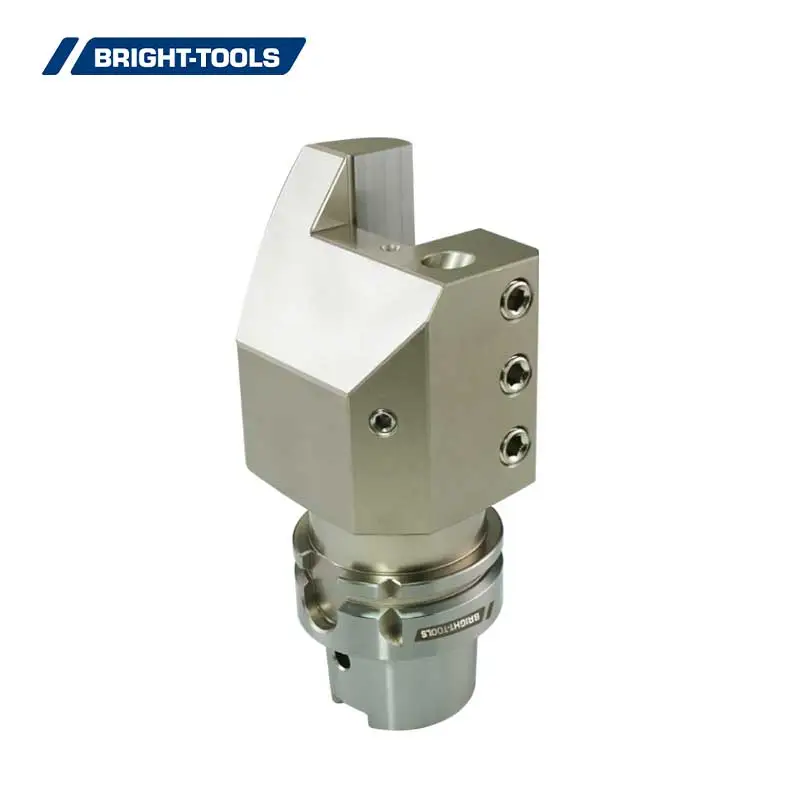

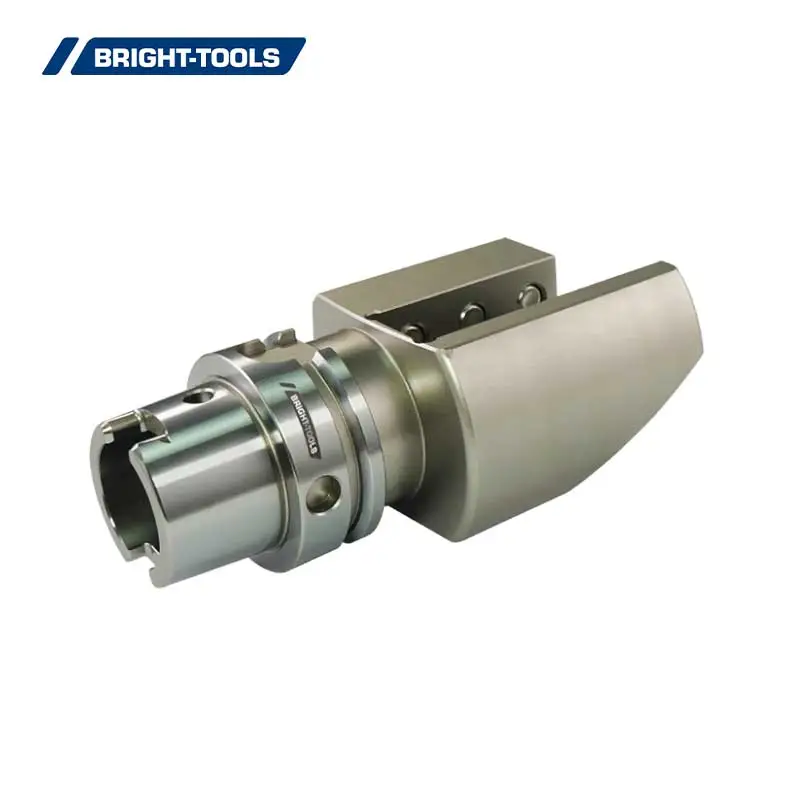

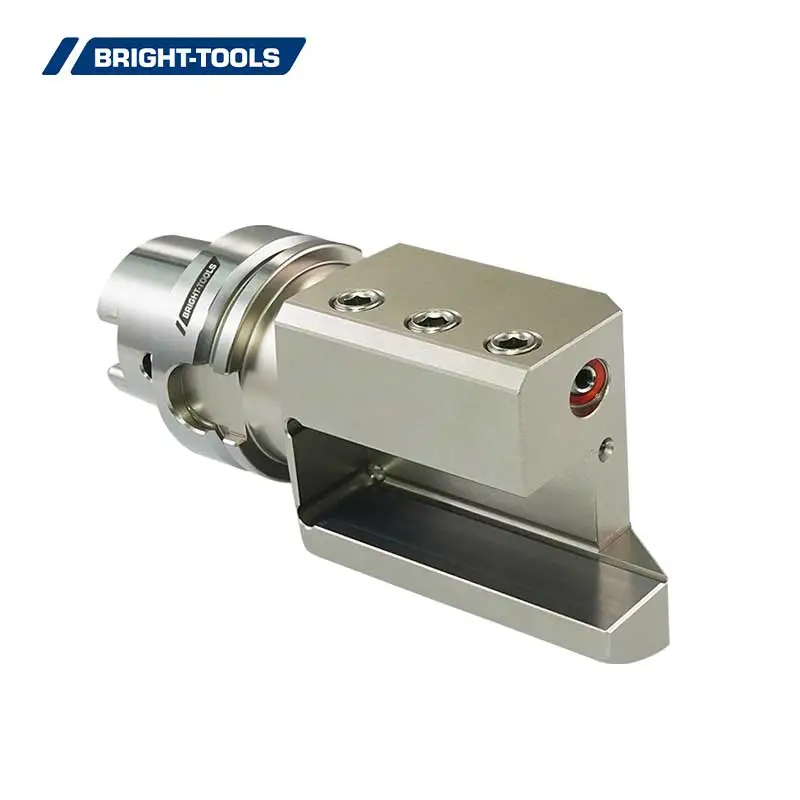

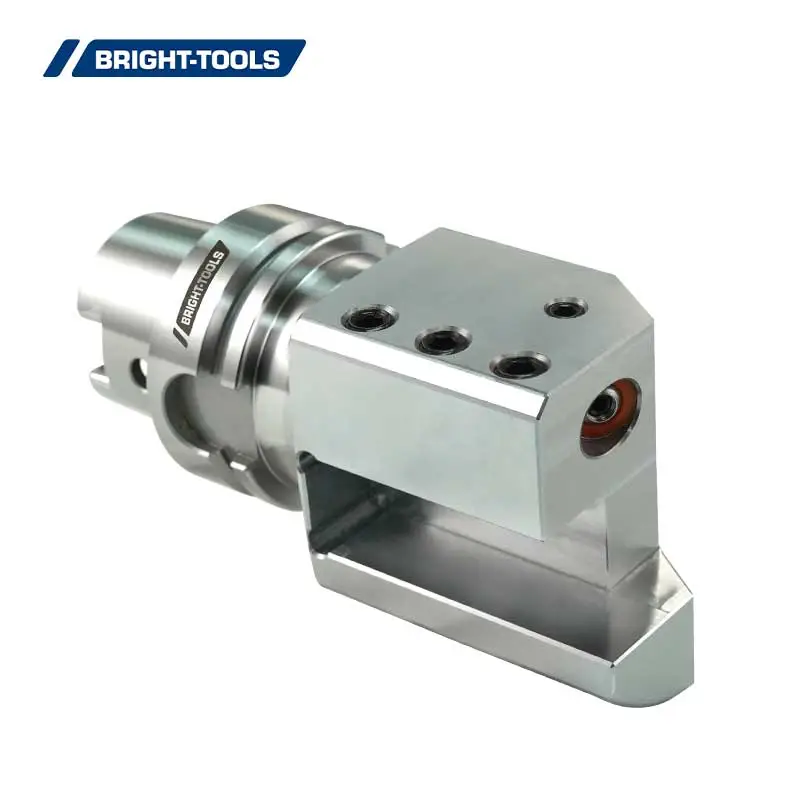

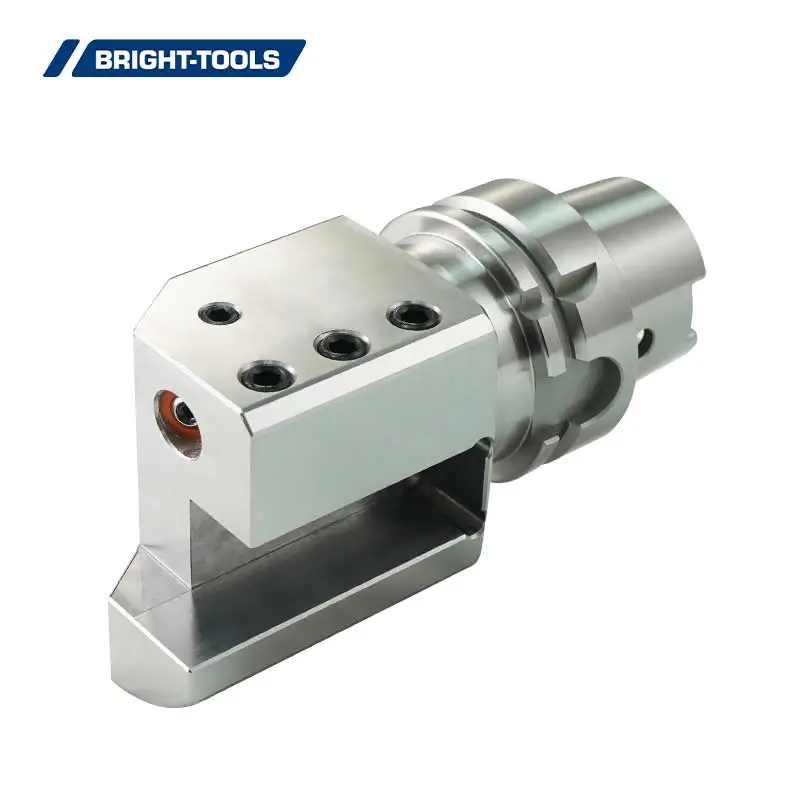

HSK･T Turning Tools SBV for External and Cut-off

SBV axial square shank tool holders are for external turning and cutting-off operation, with an adjustable cooling nozzle with internal thread. Due to its support design, it is with high rigidity. SBV is for one-direction axial tool holders, for double directions, please choose the SBVD line.

Buy HSK･T Turning Tools SBV for External and Cut-off 

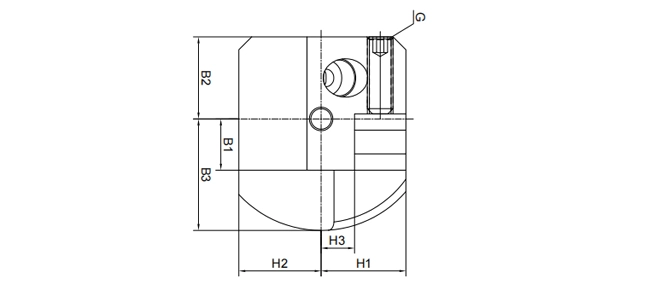

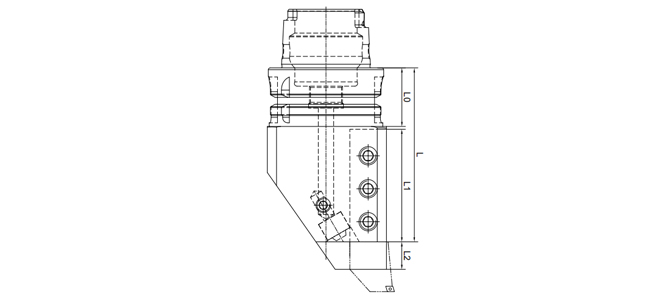

SPECIFICATION OF HSK･T TURNING TOOLS FOR EXTERNAL AND CUT-OFF

Size	L	L1	L2	B1	B2	B3	H1	H2	H3	G	Kg
HSK50T-SBV2020R-105	105	60	15	20	25	43.5	25	25	5	M10	2
HSK50T-SBV2020L-105	105	60	15	20	25	43.5	25	25	5	M10	2

HSK63T-SBV2020R-105	105	60	15	20	32	43.5	33	32	13	M10	2.7
HSK63T-SBV2020L-105	105	60	15	20	32	43.5	33	32	13	M10	2.7
HSK63T-SBV2525R-115	115	70	20	25	32	45	30	30	5	M12	2.9
HSK63T-SBV2525L-115	115	70	20	25	32	45	30	30	5	M12	2.9

HSK100T-SBV2525R-160	160	110	20	25	37	59	48	43	23	M12	8.5
HSK100T-SBV2525L-160	160	110	20	25	37	59	48	43	23	M12	8.5
HSK100T-SBV3232R-160	160	110	20	32	40	68.5	45	43	15	M14	9
HSK100T-SBV3232L-160	160	110	20	32	40	68.5	45	43	15	M14	9
