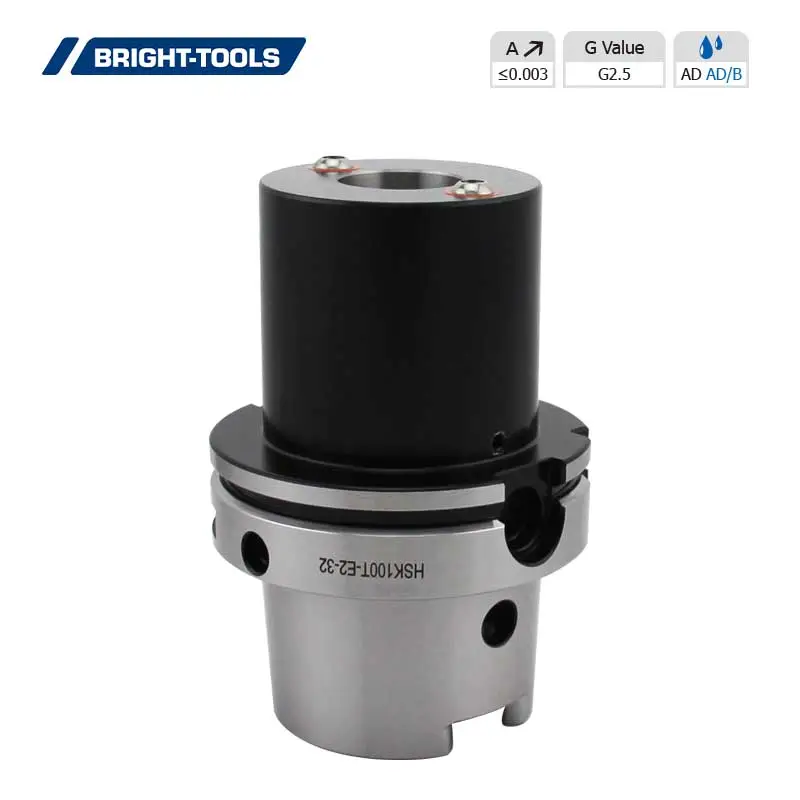

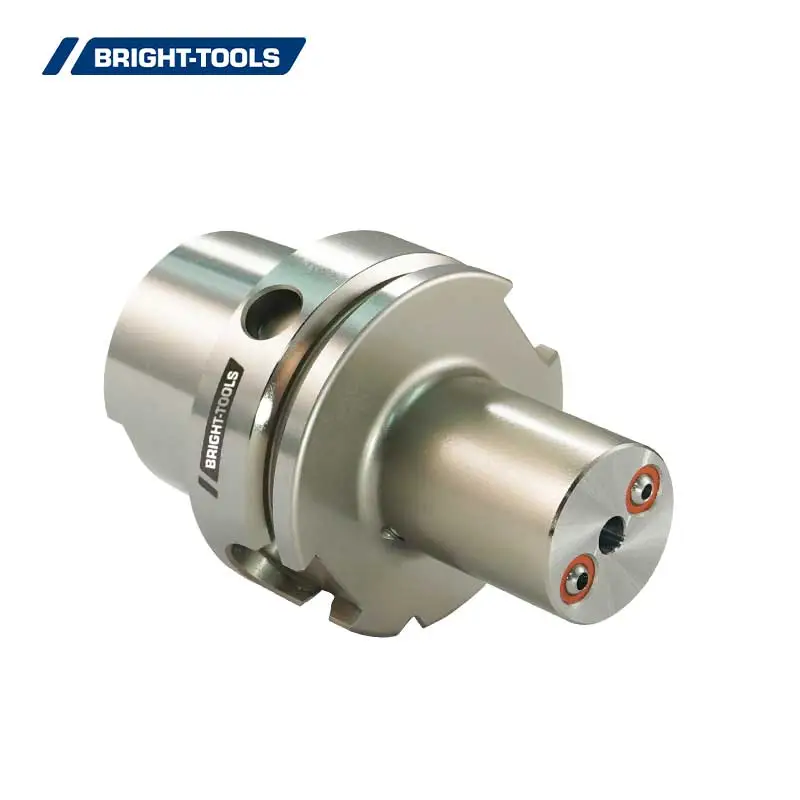

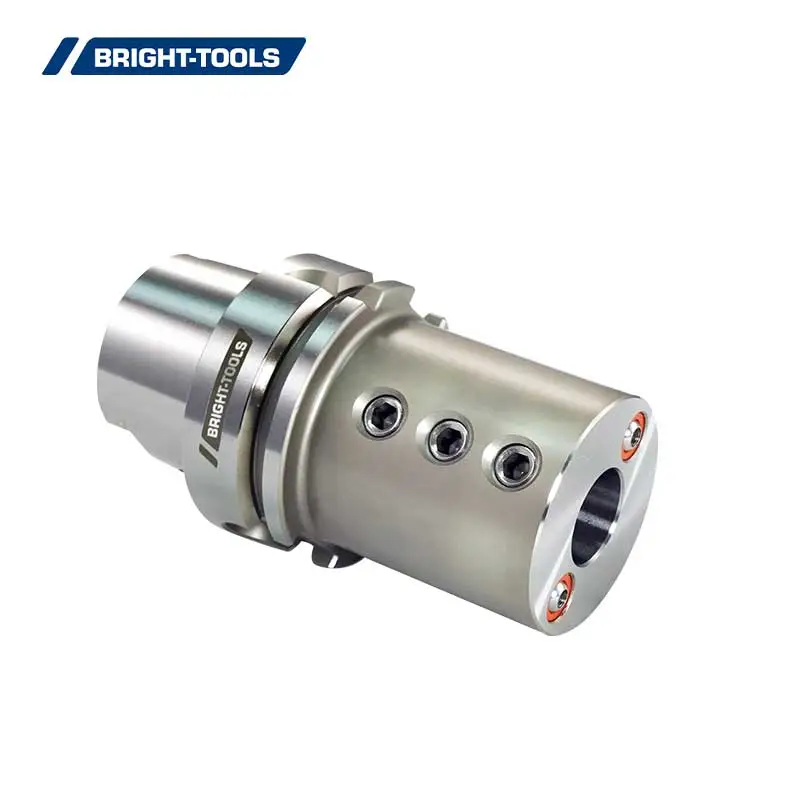

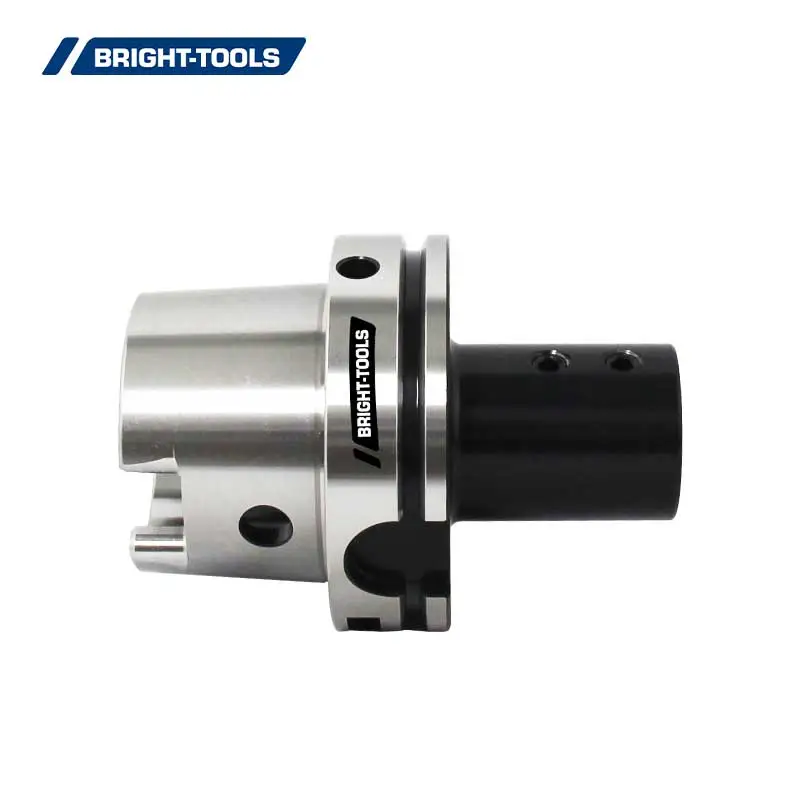

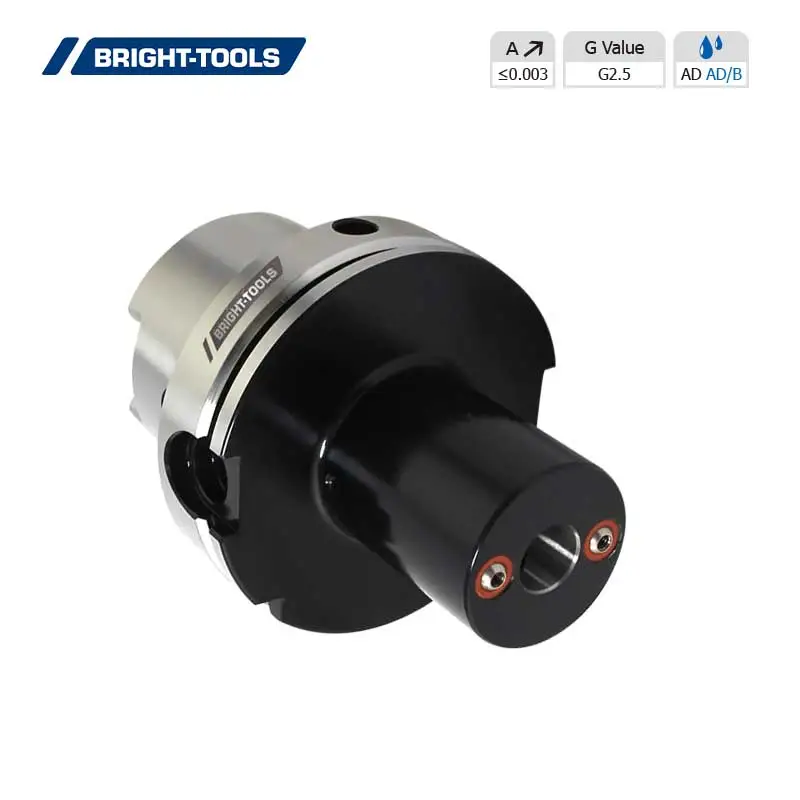

HSK・T Boring Bar Holders
HSK-T boring bar tool holders are with outlet holes on the end face, with wide range diameters from 6mm to 40mm.

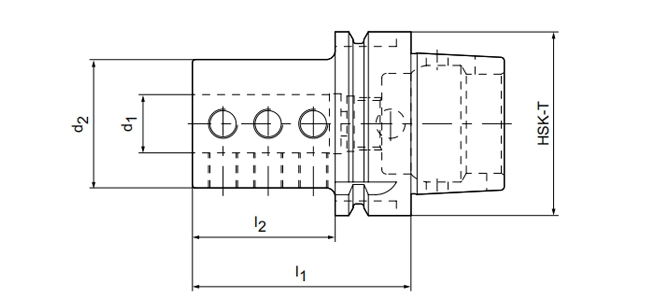

Size | d1 | d2 | l1 | l2 |
HSK40T-E2-06-055 | 6 | 34 | 55 | 35 |
HSK40T-E2-08-055 | 8 | 34 | 55 | 35 |
HSK40T-E2-10-055 | 10 | 34 | 55 | 35 |
HSK40T-E2-12-055 | 12 | 36 | 55 | 35 |
HSK40T-E2-16-070 | 16 | 40 | 70 | 50 |
HSK40T-E2-20-085 | 20 | 44 | 85 | 65 |
HSK63T-E2-06-060 | 6 | 34 | 60 | 34 |
HSK63T-E2-08-060 | 8 | 34 | 60 | 34 |
HSK63T-E2-10-060 | 10 | 34 | 60 | 34 |
HSK63T-E2-12-060 | 12 | 36 | 60 | 34 |
HSK63T-E2-16-075 | 16 | 40 | 75 | 49 |
HSK63T-E2-20-075 | 20 | 44 | 75 | 49 |
HSK63T-E2-25-075 | 25 | 50 | 75 | 49 |
HSK63T-E2-32-090 | 32 | 56 | 90 | 64 |
HSK63T-E2-40-090 | 40 | 63 | 90 | 64 |
HSK100T-E2-06-070 | 6 | 34 | 70 | 41 |
HSK100T-E2-08-070 | 8 | 34 | 70 | 41 |
HSK100T-E2-10-070 | 10 | 34 | 70 | 41 |
HSK100T-E2-12-070 | 12 | 36 | 70 | 41 |
HSK100T-E2-16-085 | 16 | 40 | 85 | 56 |
HSK100T-E2-20-085 | 20 | 44 | 85 | 56 |
HSK100T-E2-25-085 | 25 | 50 | 85 | 56 |
HSK100T-E2-32-100 | 32 | 56 | 100 | 71 |
HSK100T-E2-40-100 | 40 | 63 | 100 | 71 |
