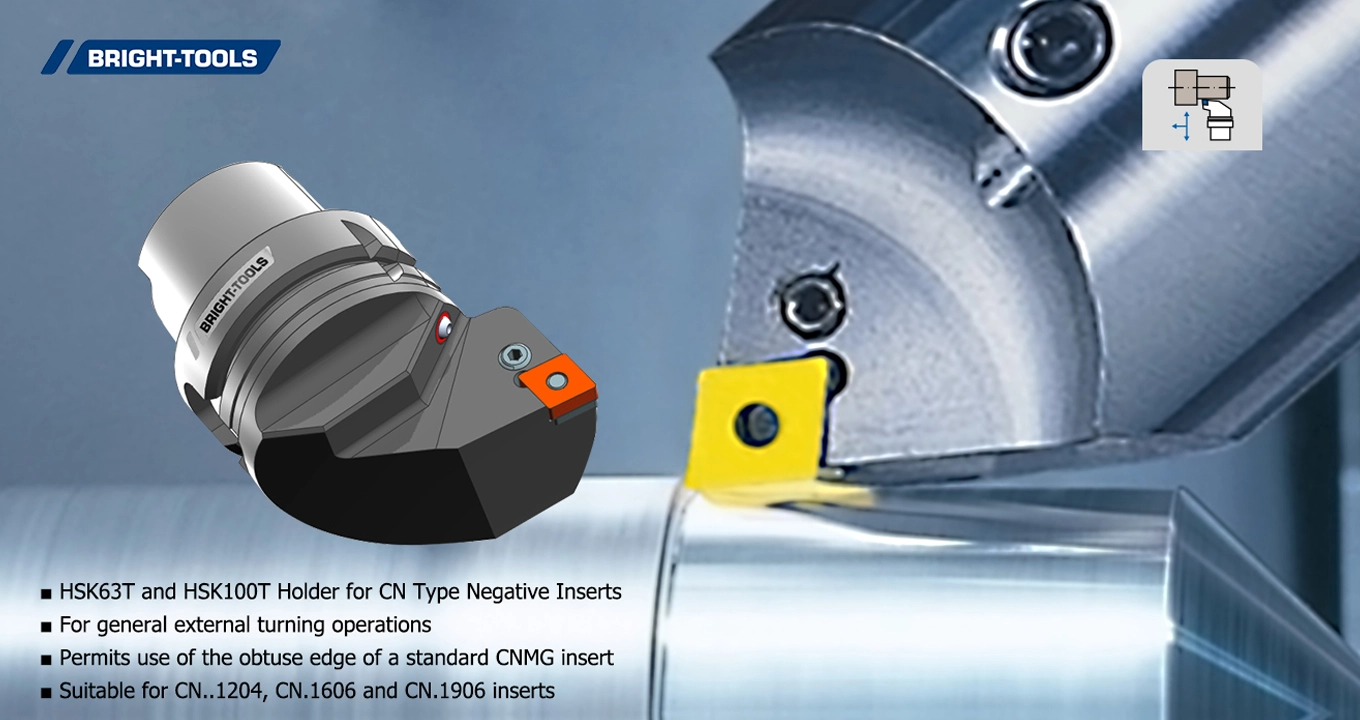

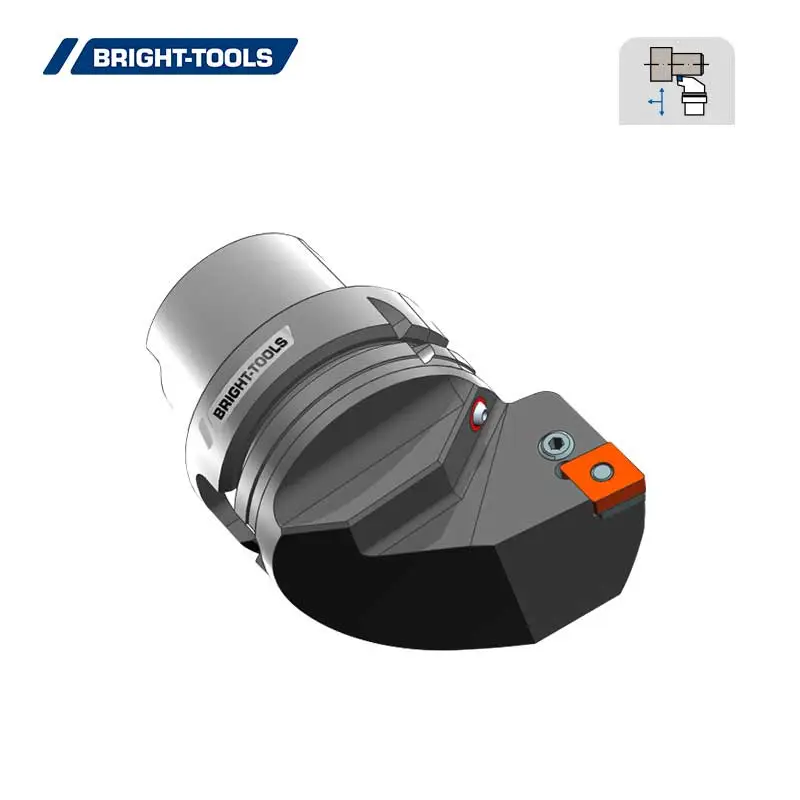

HSK63T and HSK100T Holder for CN Type Negative Inserts
For general external turning operations
Permits use of the obtuse edge of a standard CNMG insert
Pin Lock clamping
Suitable for CN..1204, CN.1606, and CN.1906 inserts
Insert clamping system: P
Insert shape code: C
Tool cutting-edge angle code: L
Insert clearance angle: N
The direction of cutting: Both R and L are available
Tool cutting edge angle: 95 deg.

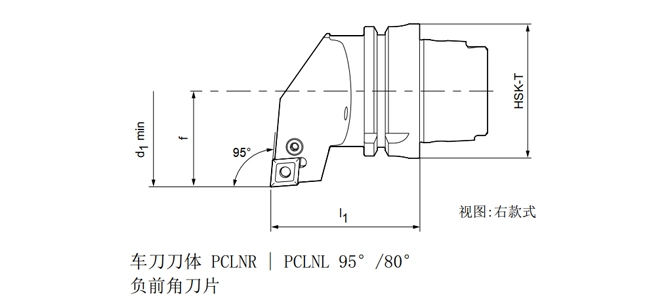

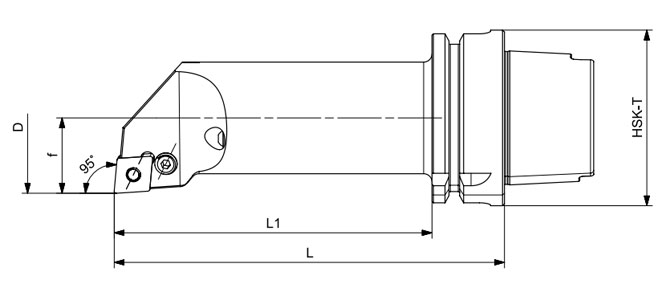

| Size | f | D | L | Direction | Inserts N. |
| HSK63T-PCLNR12-70-45 | 45 | 80 | 70 | R | CN..1204.. |
| HSK63T-PCLNL12-70-45 | 45 | 80 | 70 | L | CN..1204.. |
| HSK63T-PCLNR16-70-45 | 45 | 80 | 70 | R | CN..1606.. |
| HSK63T-PCLNL16-70-45 | 45 | 80 | 70 | L | CN..1606.. |
| HSK100T-PCLNR12-100-63 | 63 | 120 | 100 | R | CN..1204.. |
| HSK100T-PCLNL12-100-63 | 63 | 120 | 100 | L | CN..1204.. |
| HSK100T-PCLNR16-100-63 | 63 | 120 | 100 | R | CN..1606.. |
| HSK100T-PCLNL16-100-63 | 63 | 120 | 100 | L | CN..1606.. |
| HSK100T-PCLNR19-100-63 | 63 | 120 | 100 | R | CN..1906.. |
| HSK100T-PCLNL19-100-63 | 63 | 120 | 100 | L | CN..1906.. |
