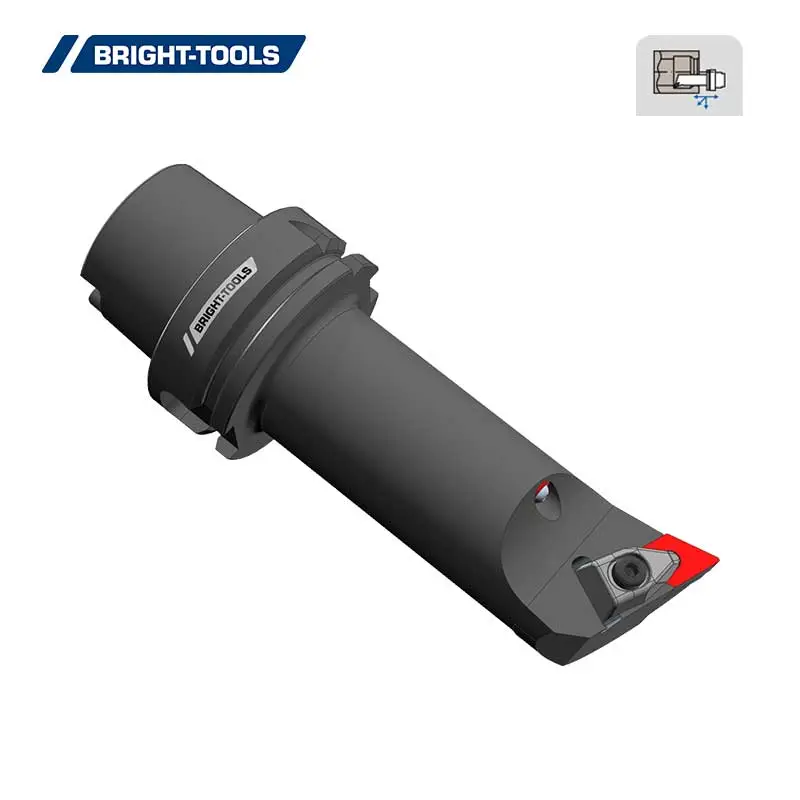

HSK-T Turning Tool DDQNR | DDQNL 107.5°/55°, Long

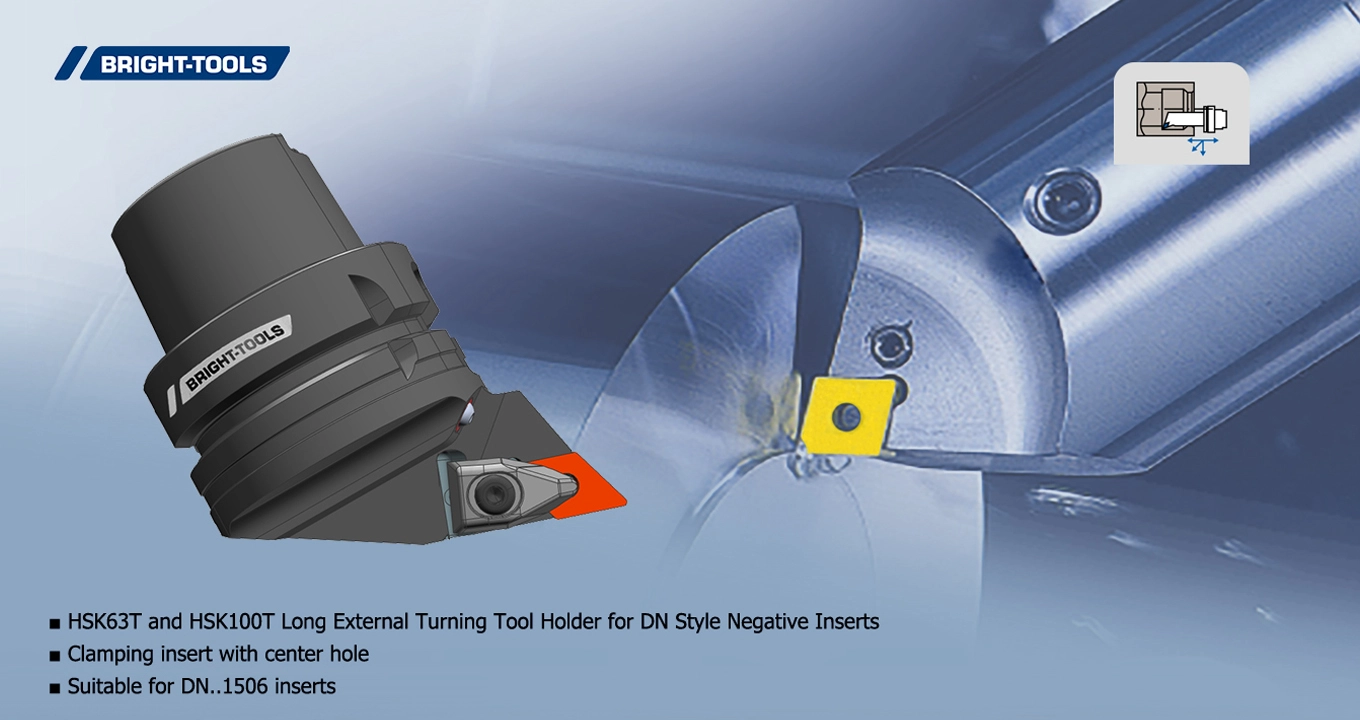

HSK63T and HSK100T Long External Turning Tool Holder for DN Style Negative Inserts

Clamping insert with center hole

Suitable for DN..1506 inserts


Insert clamping system: D

Insert shape code: D

Tool cutting edge angle code: Q

Insert clearance angle: N

The direction of cutting code: R and L

Tool cutting edge angle: 107.5 deg.


Buy HSK-T Turning Tool DDQNR | DDQNL 107.5°/55°, Long

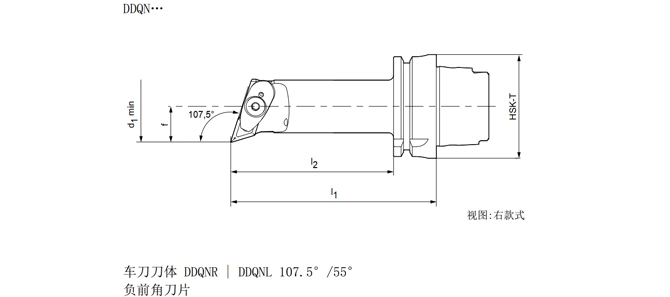

TECHNICAL DRAWING OF HSK-T TURNING TOOL DDQNR | DDQNL 107.5°/55°, LONG

Bright-Tools

Bright-Tools CNC Holder

SPECIFICATION OF HSK-T TURNING TOOL DDQNR | DDQNL 107.5°/55°, LONG

SPECIFICATION OF HSK-T TURNING TOOL DDQNR | DDQNL 107.5°/55°, LONG

SizefDLL1DirectionInserts N.
HSK63T-DDQNR15-140-272750140114RDN..1506..
HSK63T-DDQNL15-140-272750140114LDN..1506..
HSK63T-DDQNR15-180-272750180154RDN..1506..
HSK63T-DDQNL15-180-272750180154LDN..1506..
HSK100T-DDQNR15-150-272750150121RDN..1506..
HSK100T-DDQNL15-150-272750150121LDN..1506..
HSK100T-DDQNR15-200-272750200171RDN..1506..
HSK100T-DDQNL15-200-272750200171LDN..1506..
HSK100T-DDQNR15-150-353563150121RDN..1506..
HSK100T-DDQNL15-150-353563150121LDN..1506..
HSK100T-DDQNR15-200-353563200171RDN..1506..
HSK100T-DDQNL15-200-353563200171LDN..1506..
