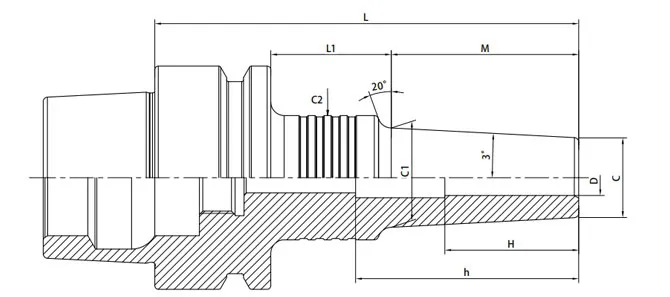

Size | D | C | L | M | L1 | C1 | C2 | H | h |
HSK50E-SFSB6-95-M42 | 6 | 10 | 95 | 42 | 27 | 14.4 | 25 | 18 | 77 |
HSK50E-SFSB6-120-M67 | 6 | 10 | 120 | 67 | 27 | 17 | 25 | 18 | 102 |
HSK50E-SFSB6-150-M97 | 6 | 10 | 150 | 97 | 27 | 20.2 | 32 | 18 | 135 |
HSK50E-SFSB8-95-M42 | 8 | 13 | 95 | 42 | 27 | 17.4 | 32 | 24 | 77 |
HSK50E-SFSB8-120-M67 | 8 | 13 | 120 | 67 | 27 | 20 | 32 | 24 | 105 |
HSK50E-SFSB8-150-M97 | 8 | 13 | 150 | 97 | 27 | 23.2 | 32 | 24 | 132 |
HSK50E-SFSB10-95-M42 | 10 | 16 | 95 | 42 | 27 | 20.4 | 32 | 30 | 80 |
HSK50E-SFSB10-120-M67 | 10 | 16 | 120 | 67 | 27 | 23 | 32 | 30 | 105 |
HSK50E-SFSB10-150-M97 | 10 | 16 | 150 | 97 | 27 | 26.2 | 32 | 30 | 135 |
HSK50E-SFSB12-95-M42 | 12 | 19 | 95 | 42 | 27 | 23.4 | 32 | 30 | 64 |
HSK50E-SFSB12-120-M67 | 12 | 19 | 120 | 67 | 27 | 26 | 32 | 30 | 64 |
HSK50E-SFSB12-150-M97 | 12 | 19 | 150 | 97 | 27 | 29.2 | 32 | 30 | 135 |
HSK50E-SFSB16-95-M42 | 16 | 24 | 95 | 42 | 27 | 28.4 | 42 | 32 | 81 |
HSK50E-SFSB16-120-M67 | 16 | 24 | 120 | 67 | 27 | 31 | 42 | 32 | 81 |
HSK50E-SFSB20-95-M42 | 20 | 29 | 95 | 42 | 27 | 33.4 | 42 | 40 | 82 |
