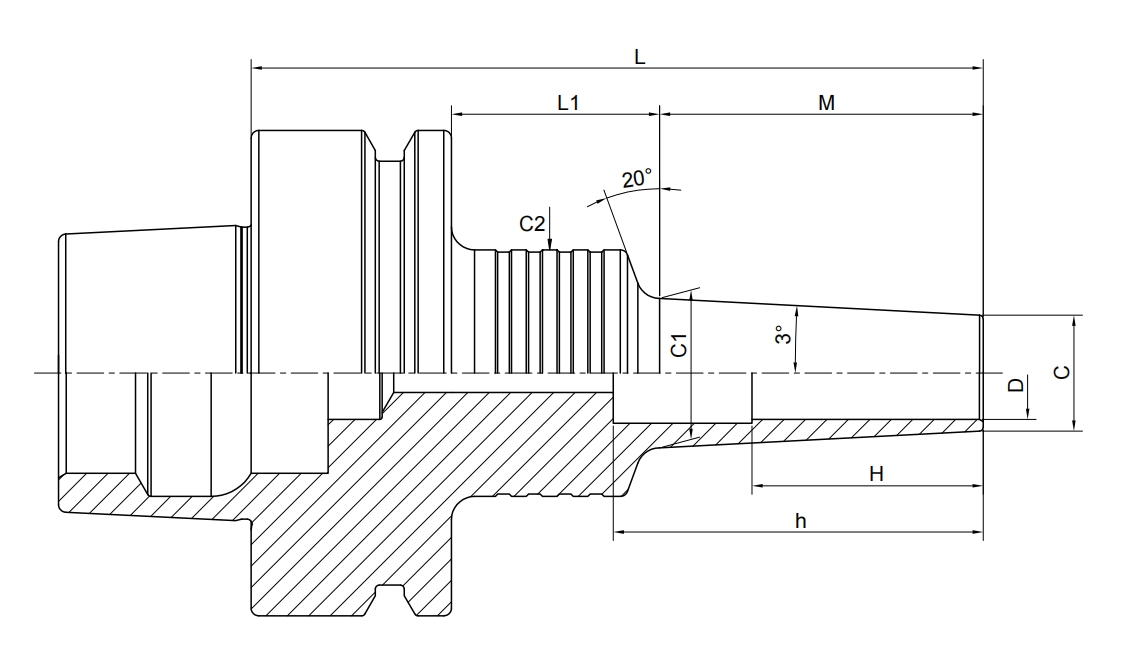

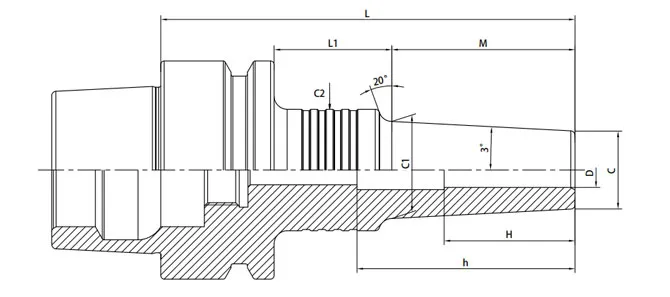

Size | D | C | L | M | L1 | C1 | C2 | H | h |
HSK50E-SFRB6-95-M42 | 6 | 14 | 95 | 42 | 27 | 18.4 | 32 | 18 | 80 |
HSK50E-SFRB8-95-M42 | 8 | 18 | 95 | 42 | 27 | 22.4 | 32 | 24 | 77 |
HSK50E-SFRB8-120-M67 | 8 | 18 | 120 | 67 | 27 | 25 | 32 | 24 | 105 |
HSK50E-SFRB10-95-M42 | 10 | 22 | 95 | 42 | 27 | 26.4 | 32 | 30 | 64 |
HSK50E-SFRB10-120-M67 | 10 | 22 | 120 | 67 | 27 | 29 | 42 | 30 | 107 |
HSK50E-SFRB12-95-M42 | 12 | 26 | 95 | 42 | 27 | 30.4 | 42 | 30 | 82 |
HSK50E-SFRB12-120-M67 | 12 | 26 | 120 | 67 | 27 | 33 | 42 | 30 | 64 |
HSK50E-SFRB16-75-M22 | 16 | 32 | 75 | 22 | 27 | 34.3 | 42 | 32 | 62 |
