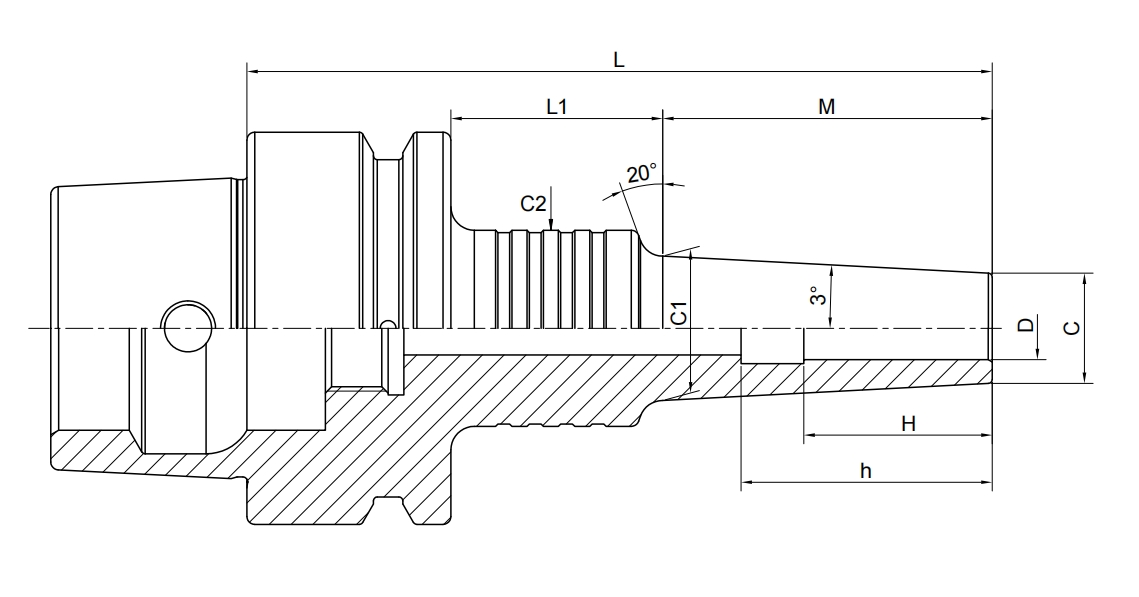

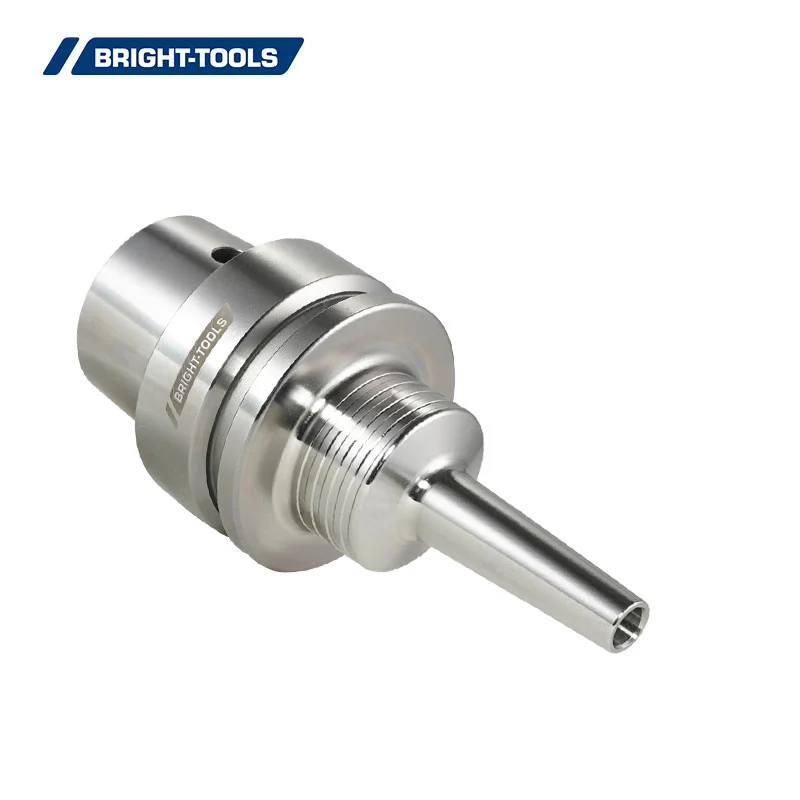

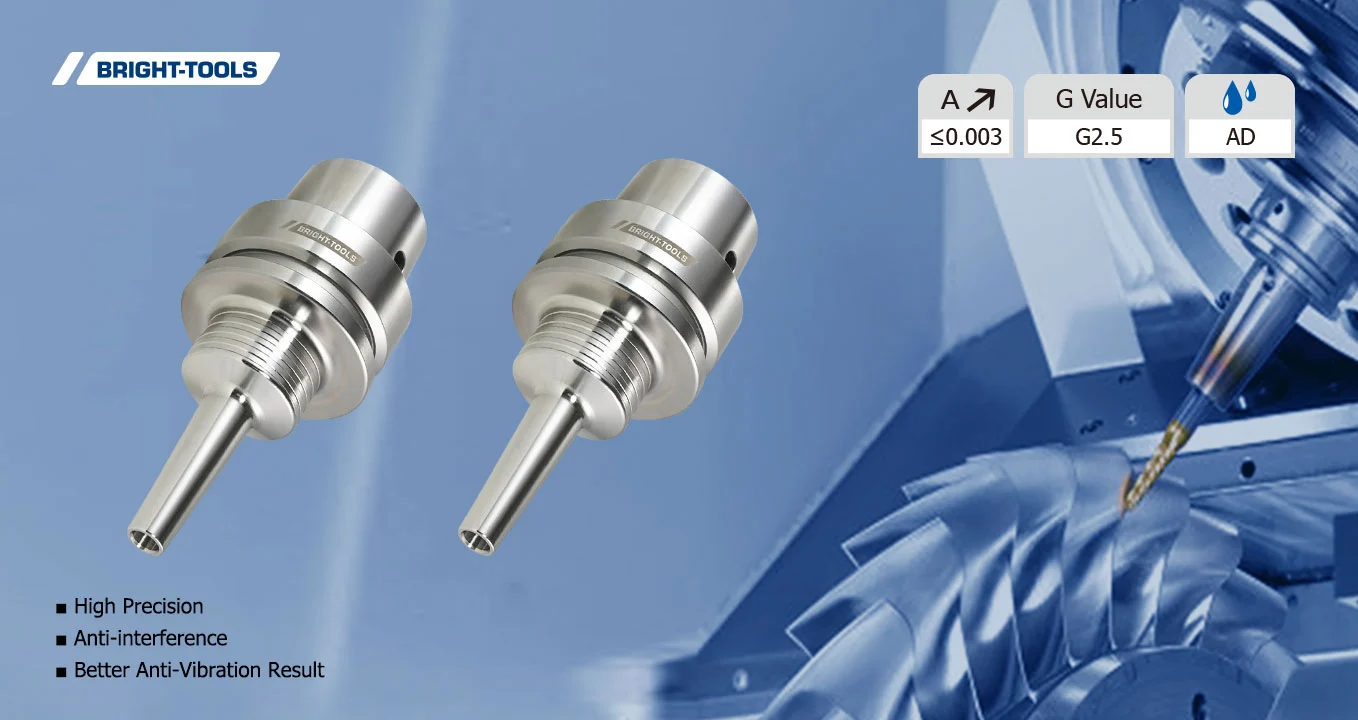

Size | D | C | L | M | L1 | C1 | C2 | H | h |
HSK25E-SFRA3-35 | 3 | 7.5 | 35 | 17 | 8 | 9.3 | 18 | 9 | 29 |
HSK25E-SFRA4-35 | 4 | 10 | 35 | 17 | 8 | 11.8 | 18 | 12 | 29 |
HSK25E-SFRA6-35 | 6 | 12 | 35 | 17 | 8 | 13.8 | 18 | 18 | 26 |
Size | D | C | L | M | L1 | C1 | C2 | H | h |
HSK32E-SFRA3-50-M22 | 3 | 7.5 | 50 | 22 | 8 | 9.8 | 20 | 9 | 42 |
HSK32E-SFRA3-70-M42 | 3 | 7.5 | 70 | 42 | 8 | 11.9 | 20 | 9 | 62 |
HSK32E-SFRA3-85-M42 | 3 | 7.5 | 85 | 42 | 23 | 11.9 | 25 | 9 | 69 |
HSK32E-SFRA4-50-M22 | 4 | 10 | 50 | 22 | 8 | 12.3 | 20 | 12 | 35 |
HSK32E-SFRA4-70-M42 | 4 | 10 | 70 | 42 | 8 | 14.4 | 20 | 12 | 54 |
HSK32E-SFRA4-85-M42 | 4 | 10 | 85 | 42 | 23 | 14.4 | 25 | 12 | 69 |
HSK32E-SFRA6-50-M22 | 6 | 12 | 50 | 22 | 8 | 14.3 | 26 | 18 | 39 |
HSK32E-SFRA6-70-M42 | 6 | 12 | 70 | 42 | 8 | 16.4 | 26 | 18 | 54 |
HSK32E-SFRA6-85-M42 | 6 | 12 | 85 | 42 | 23 | 16.4 | 25 | 18 | 69 |
HSK32E-SFRA8-50-M22 | 8 | 14 | 50 | 22 | 8 | 16.3 | 26 | 20 | 39 |
HSK32E-SFRA8-85-M42 | 8 | 14 | 85 | 42 | 23 | 18.4 | 25 | 24 | 49 |
HSK32E-SFRA10-55-M22 | 10 | 16 | 55 | 22 | 13 | 18.3 | 26 | 25 | 44 |
HSK32E-SFRA12-55-M22 | 12 | 20 | 55 | 22 | 13 | 22.3 | 26 | 25 | 44 |
HSK32E-SFRA16-55-M35 | 16 | 26 | 55 | 35 | - | - | - | 32 | 44 |
Size | D | C | L | M | L1 | C1 | C2 | H | h |
HSK40E-SFRA3-50-M22 | 3 | 7.5 | 50 | 22 | 8 | 9.8 | 20 | 9 | 42 |
HSK40E-SFRA3-70-M42 | 3 | 7.5 | 70 | 42 | 8 | 11.9 | 20 | 9 | 62 |
HSK40E-SFRA3-85-M42 | 3 | 7.5 | 85 | 42 | 23 | 11.9 | 25 | 9 | 69 |
HSK40E-SFRA3-110-M67 | 3 | 7.5 | 110 | 67 | 23 | 14.5 | 25 | 9 | 94 |
HSK40E-SFRA4-50-M22 | 4 | 10 | 50 | 22 | 8 | 12.3 | 20 | 12 | 42 |
HSK40E-SFRA4-70-M42 | 4 | 10 | 70 | 42 | 8 | 14.4 | 20 | 12 | 62 |
HSK40E-SFRA4-85-M42 | 4 | 10 | 85 | 42 | 23 | 14.4 | 25 | 12 | 69 |
HSK40E-SFRA4-110-M67 | 4 | 10 | 110 | 67 | 23 | 17 | 25 | 12 | 94 |
HSK40E-SFRA6-50-M22 | 6 | 12 | 50 | 22 | 8 | 14.3 | 26 | 18 | 39 |
HSK40E-SFRA6-70-M42 | 6 | 12 | 70 | 42 | 8 | 16.4 | 26 | 18 | 54 |
HSK40E-SFRA6-85-M42 | 6 | 12 | 85 | 42 | 23 | 16.4 | 25 | 18 | 69 |
HSK40E-SFRA6-110-M67 | 6 | 12 | 110 | 67 | 23 | 19 | 25 | 18 | 94 |
HSK40E-SFRA8-50-M22 | 8 | 14 | 50 | 22 | 8 | 16.3 | 26 | 20 | 39 |
HSK40E-SFRA8-85-M42 | 8 | 14 | 85 | 42 | 23 | 18.4 | 25 | 24 | 69 |
HSK40E-SFRA8-100-M42 | 8 | 14 | 100 | 42 | 38 | 18.4 | 25 | 24 | 84 |
HSK40E-SFRA10-55-M22 | 10 | 16 | 55 | 22 | 13 | 18.3 | 26 | 25 | 44 |
HSK40E-SFRA10-85-M42 | 10 | 16 | 85 | 42 | 23 | 20.4 | 25 | 30 | 64 |
HSK40E-SFRA10-100-M42 | 10 | 16 | 100 | 42 | 38 | 20.4 | 25 | 30 | 64 |
HSK40E-SFRA12-55-M22 | 12 | 20 | 55 | 22 | 13 | 22.3 | 30 | 25 | 44 |
HSK40E-SFRA12-85-M42 | 12 | 20 | 85 | 42 | 23 | 24.4 | 32 | 30 | 74 |
HSK40E-SFRA16-55-M22 | 16 | 26 | 55 | 22 | 13 | 28.3 | 34 | 32 | 44 |
HSK40E-SFRA20-60-M40 | 20 | 32 | 60 | 40 | - | 34 | - | 38 | 49 |
Size | D | C | L | M | L1 | C1 | C2 | H | h |
HSK50E-SFRA3-75-M22 | 3 | 7.5 | 75 | 22 | 27 | 9.8 | 25 | 9 | 61 |
HSK50E-SFRA3-95-M42 | 3 | 7.5 | 95 | 42 | 27 | 11.9 | 25 | 9 | 81 |
HSK50E-SFRA3-120-M67 | 3 | 7.5 | 120 | 67 | 27 | 14.5 | 25 | 9 | 106 |
HSK50E-SFRA3-150-M97 | 3 | 7.5 | 150 | 97 | 27 | 17.7 | 25 | 9 | 136 |
HSK50E-SFRA4-75-M22 | 4 | 10 | 75 | 22 | 27 | 12.3 | 25 | 12 | 61 |
HSK50E-SFRA4-95-M42 | 4 | 10 | 95 | 42 | 27 | 14.4 | 25 | 12 | 81 |
HSK50E-SFRA4-120-M67 | 4 | 10 | 120 | 67 | 27 | 17 | 25 | 12 | 106 |
HSK50E-SFRA4-150-M97 | 4 | 10 | 150 | 97 | 27 | 20.2 | 25 | 12 | 135 |
HSK50E-SFRA6-60-M22 | 6 | 12 | 60 | 22 | 12 | 14.3 | 26 | 18 | 44 |
HSK50E-SFRA6-75-M22 | 6 | 12 | 75 | 22 | 27 | 14.3 | 25 | 18 | 61 |
HSK50E-SFRA6-95-M42 | 6 | 12 | 95 | 42 | 27 | 16.4 | 25 | 18 | 81 |
HSK50E-SFRA6-120-M67 | 6 | 12 | 120 | 67 | 27 | 19 | 25 | 18 | 106 |
HSK50E-SFRA8-60-M22 | 8 | 14 | 60 | 22 | 12 | 16.3 | 26 | 20 | 44 |
HSK50E-SFRA8-75-M22 | 8 | 14 | 75 | 22 | 27 | 16.3 | 25 | 24 | 61 |
HSK50E-SFRA8-95-M42 | 8 | 14 | 95 | 42 | 27 | 18.4 | 25 | 24 | 81 |
HSK50E-SFRA10-60-M22 | 10 | 16 | 60 | 22 | 12 | 18.3 | 26 | 25 | 44 |
HSK50E-SFRA10-75-M22 | 10 | 16 | 75 | 22 | 27 | 18.3 | 25 | 30 | 60 |
HSK50E-SFRA12-60-M22 | 12 | 20 | 60 | 22 | 12 | 22.3 | 26 | 25 | 44 |
HSK50E-SFRA12-75-M22 | 12 | 20 | 75 | 22 | 27 | 22.3 | 25 | 30 | 62 |
HSK50E-SFRA16-60-M22 | 16 | 26 | 60 | 22 | 12 | 28.3 | 34 | 32 | 44 |
HSK50E-SFRA20-65-M22 | 20 | 32 | 65 | 22 | 17 | 34.3 | 40 | 38 | 49 |
