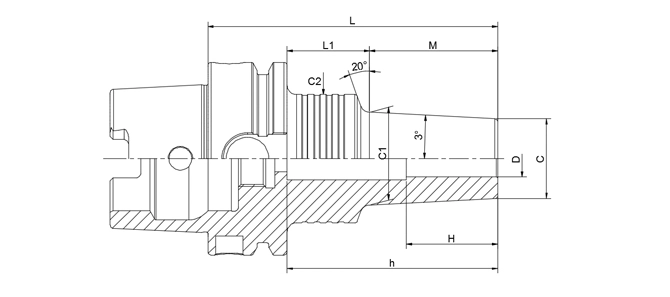

Size | D | C | L | M | L1 | C1 | C2 | H | h |
HSK40A-SFSA3-65-M22 | 3 | 6 | 65 | 22 | 23 | 8.3 | 25 | 9 | 44 |
HSK40A-SFSA3-85-M42 | 3 | 6 | 85 | 42 | 23 | 10.4 | 25 | 9 | 64 |
HSK40A-SFSA3-100-M42 | 3 | 6 | 100 | 42 | 38 | 10.4 | 25 | 9 | 78 |
HSK40A-SFSA4-65-M22 | 4 | 7 | 65 | 22 | 23 | 9.3 | 25 | 12 | 44 |
HSK40A-SFSA4-85-M42 | 4 | 7 | 85 | 42 | 23 | 11.4 | 25 | 12 | 64 |
HSK40A-SFSA4-100-M42 | 4 | 7 | 100 | 42 | 38 | 11.4 | 25 | 12 | 78 |
HSK40A-SFSA6-65-M22 | 6 | 9 | 65 | 22 | 23 | 11.3 | 25 | 18 | 44 |
HSK40A-SFSA6-85-M42 | 6 | 9 | 85 | 42 | 23 | 13.4 | 25 | 18 | 64 |
HSK40A-SFSA6-100-M42 | 6 | 9 | 100 | 42 | 38 | 13.4 | 25 | 18 | 78 |
HSK40A-SFSA8-65-M22 | 8 | 11 | 65 | 22 | 23 | 13.3 | 25 | 24 | 44 |
HSK40A-SFSA8-85-M42 | 8 | 11 | 85 | 42 | 23 | 15.4 | 25 | 24 | 64 |
HSK40A-SFSA8-100-M42 | 8 | 11 | 100 | 42 | 38 | 15.4 | 25 | 24 | 78 |
HSK40A-SFSA10-65-M22 | 10 | 13 | 65 | 22 | 23 | 15.3 | 25 | 30 | 44 |
HSK40A-SFSA10-85-M42 | 10 | 13 | 85 | 42 | 23 | 17.4 | 25 | 30 | 64 |
HSK40A-SFSA10-100-M42 | 10 | 13 | 100 | 42 | 38 | 17.4 | 25 | 30 | 78 |
HSK40A-SFSA12-65-M22 | 12 | 15 | 65 | 22 | 23 | 17.3 | 25 | 30 | 44 |
HSK40A-SFSA12-90-M42 | 12 | 15 | 90 | 42 | 28 | 19.4 | 32 | 30 | 68 |
