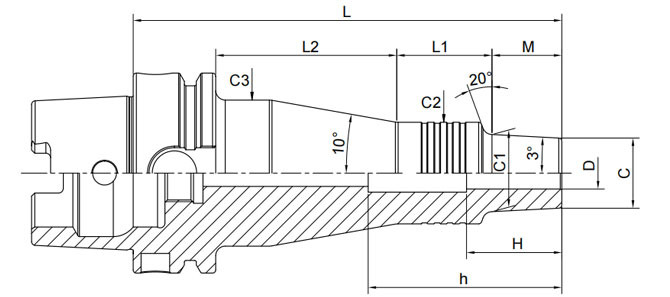

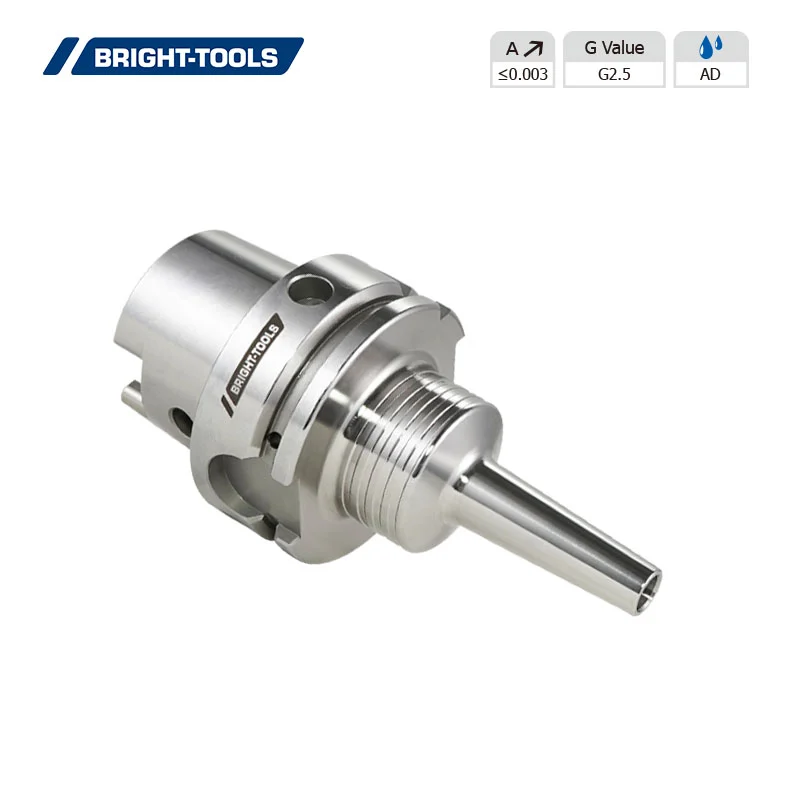

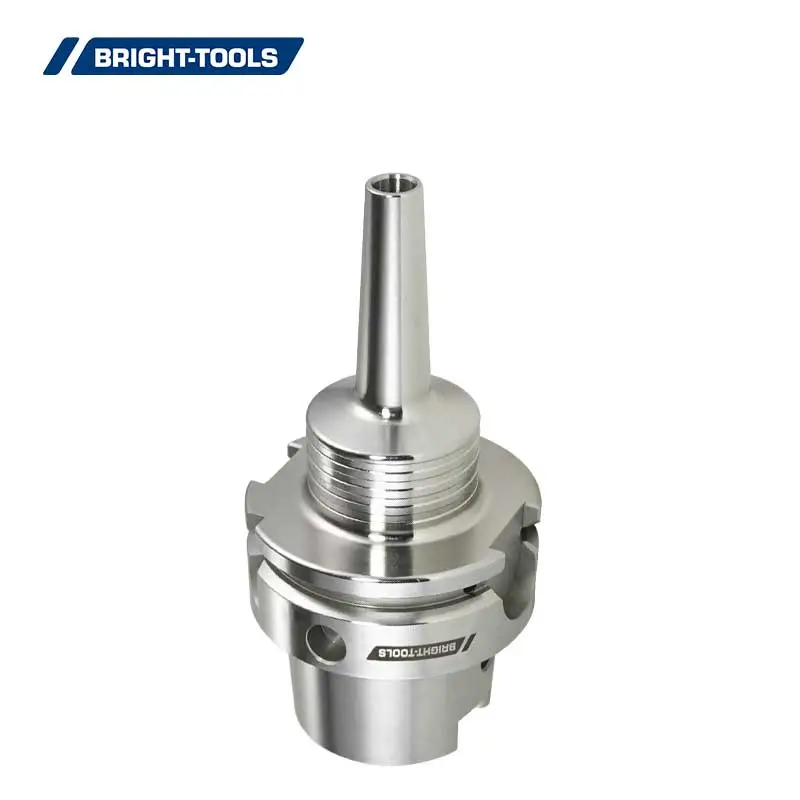

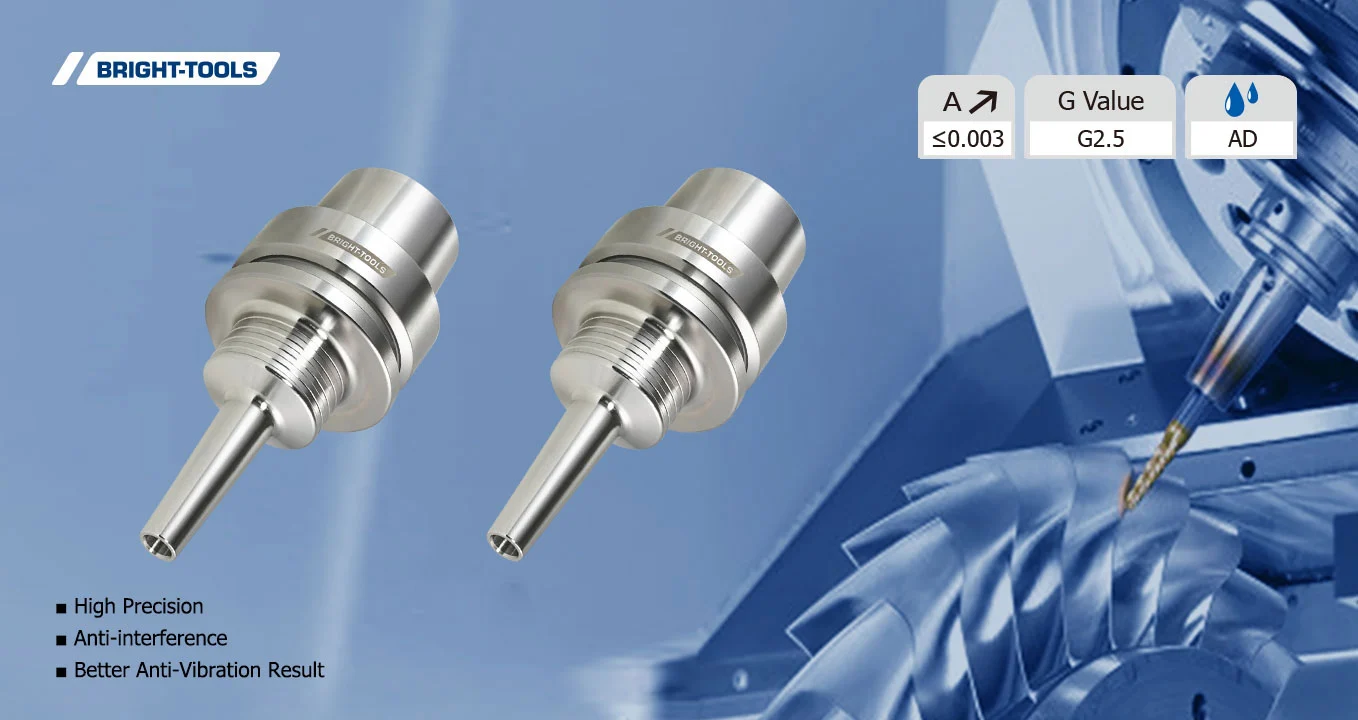

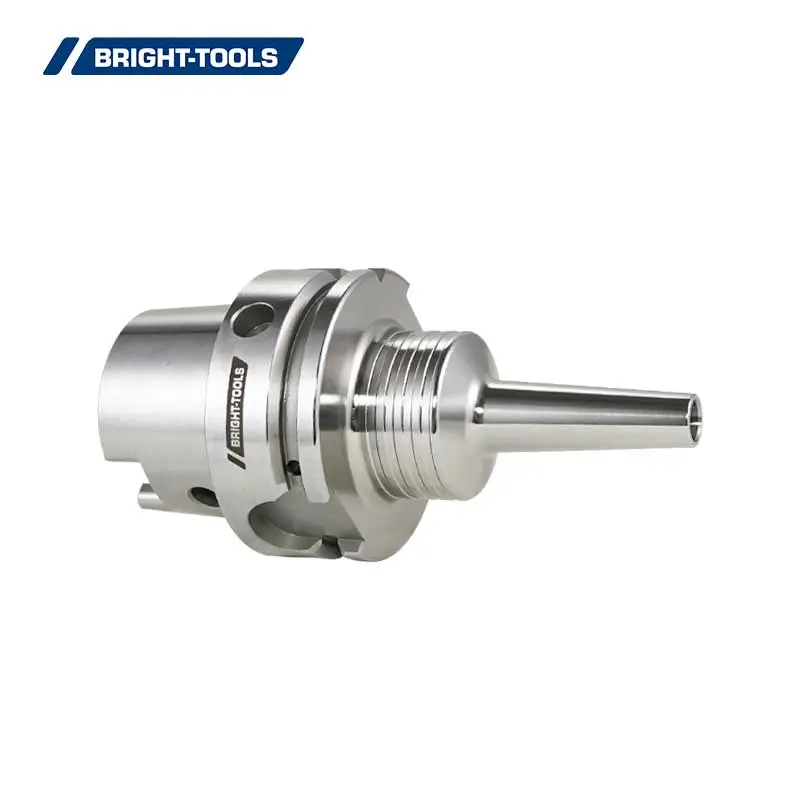

Size | D | C | L | M | L1 | C1 | C2 | H | h |
HSK40A-SFRA3-65-M22 | 3 | 7.5 | 65 | 22 | 23 | 9.8 | 25 | 9 | 44 |
HSK40A-SFRA3-85-M42 | 3 | 7.5 | 85 | 42 | 23 | 11.9 | 25 | 9 | 64 |
HSK40A-SFRA4-65-M22 | 4 | 10 | 65 | 22 | 23 | 12.3 | 25 | 12 | 44 |
HSK40A-SFRA4-85-M42 | 4 | 10 | 85 | 42 | 23 | 14.4 | 25 | 12 | 64 |
HSK40A-SFRA6-65-M22 | 6 | 12 | 65 | 22 | 23 | 14.3 | 25 | 18 | 44 |
HSK40A-SFRA6-85-M42 | 6 | 12 | 85 | 42 | 23 | 16.4 | 25 | 18 | 64 |
HSK40A-SFRA8-65-M22 | 8 | 14 | 65 | 22 | 23 | 16.3 | 25 | 24 | 44 |
HSK40A-SFRA8-85-M42 | 8 | 14 | 85 | 42 | 23 | 18.4 | 25 | 24 | 64 |
HSK40A-SFRA10-65-M22 | 10 | 16 | 65 | 22 | 23 | 18.3 | 25 | 30 | 44 |
HSK40A-SFRA10-90-M42 | 10 | 16 | 90 | 42 | 28 | 20.4 | 32 | 30 | 60 |
HSK40A-SFRA12-65-M22 | 12 | 20 | 65 | 22 | 23 | 22.3 | 25 | 30 | 44 |
HSK40A-SFRA16-65-M22 | 16 | 26 | 65 | 22 | 23 | 28.3 | 34 | 32 | 43 |
HSK40A-SFRA20-70-M50 | 20 | 32 | 70 | 50 | - | 34 | - | 38 | 48 |
Size | D | C | L | M | L1 | C1 | C2 | H | h |
HSK50A-SFRA3-75-M22 | 3 | 7.5 | 75 | 22 | 27 | 9.8 | 25 | 9 | 49 |
HSK50A-SFRA3-95-M42 | 3 | 7.5 | 95 | 42 | 27 | 11.9 | 25 | 9 | 69 |
HSK50A-SFRA3-125-M42 | 3 | 7.5 | 125 | 42 | 57 | 11.9 | 25 | 9 | 100 |
HSK50A-SFRA4-75-M22 | 4 | 10 | 75 | 22 | 27 | 12.3 | 25 | 12 | 49 |
HSK50A-SFRA4-95-M42 | 4 | 10 | 95 | 42 | 27 | 14.4 | 25 | 12 | 69 |
HSK50A-SFRA4-125-M42 | 4 | 10 | 125 | 42 | 57 | 14.4 | 25 | 12 | 99 |
Size | D | C | L | M | L1 | C1 | C2 | H | h |
HSK63A-SFRA3-75-M22 | 3 | 7.5 | 75 | 22 | 27 | 9.8 | 25 | 9 | 50 |
HSK63A-SFRA3-95-M42 | 3 | 7.5 | 95 | 42 | 27 | 11.9 | 25 | 9 | 70 |
HSK63A-SFRA3-105-M22 | 3 | 7.5 | 105 | 22 | 57 | 9.8 | 26 | 9 | 80 |
HSK63A-SFRA3-120-M67 | 3 | 7.5 | 120 | 67 | 27 | 14.5 | 26 | 9 | 95 |
HSK63A-SFRA3-125-M42 | 3 | 7.5 | 125 | 42 | 57 | 11.9 | 26 | 9 | 100 |
HSK63A-SFRA3-150-M67 | 3 | 7.5 | 150 | 67 | 57 | 14.5 | 25 | 9 | 125 |
HSK63A-SFRA3-150-M97 | 3 | 7.5 | 150 | 97 | 27 | 17.7 | 25 | 9 | 125 |
HSK63A-SFRA3-180-M97 | 3 | 7.5 | 180 | 97 | 57 | 17.7 | 26 | 9 | 155 |
HSK63A-SFRA3-180-M127 | 3 | 7.5 | 180 | 127 | 27 | 20.8 | 36 | 9 | 155 |
HSK63A-SFRA3-210-M127 | 3 | 7.5 | 210 | 127 | 57 | 20.8 | 36 | 9 | 185 |
HSK63A-SFRA4-75-M22 | 4 | 10 | 75 | 22 | 27 | 12.3 | 25 | 12 | 50 |
HSK63A-SFRA4-95-M42 | 4 | 10 | 95 | 42 | 27 | 14.4 | 25 | 12 | 70 |
HSK63A-SFRA4-105-M22 | 4 | 10 | 105 | 22 | 57 | 12.3 | 26 | 12 | 80 |
HSK63A-SFRA4-120-M67 | 4 | 10 | 120 | 67 | 27 | 17 | 25 | 12 | 95 |
HSK63A-SFRA4-125-M42 | 4 | 10 | 125 | 42 | 57 | 14.4 | 26 | 12 | 100 |
HSK63A-SFRA4-150-M67 | 4 | 10 | 150 | 67 | 57 | 17 | 26 | 12 | 125 |
HSK63A-SFRA4-150-M97 | 4 | 10 | 150 | 97 | 27 | 20.2 | 25 | 12 | 125 |
HSK63A-SFRA4-180-M97 | 4 | 10 | 180 | 97 | 57 | 20.2 | 26 | 12 | 155 |
HSK63A-SFRA4-180-M127 | 4 | 10 | 180 | 127 | 27 | 23.3 | 36 | 12 | 155 |
HSK63A-SFRA4-210-M127 | 4 | 10 | 210 | 127 | 57 | 23.3 | 36 | 12 | 185 |
Size | D | C | L | M | L1 | C1 | C2 | H | h |
HSK100A-SFRA3-90-M22 | 3 | 7.5 | 90 | 22 | 39 | 9.8 | 26 | 9 | 60 |
HSK100A-SFRA3-110-M42 | 3 | 7.5 | 110 | 42 | 39 | 11.9 | 26 | 9 | 80 |
HSK100A-SFRA3-120-M22 | 3 | 7.5 | 120 | 22 | 69 | 9.8 | 25 | 9 | 90 |
HSK100A-SFRA3-135-M67 | 3 | 7.5 | 135 | 67 | 39 | 14.5 | 26 | 9 | 105 |
HSK100A-SFRA3-140-M42 | 3 | 7.5 | 140 | 42 | 69 | 11.9 | 26 | 9 | 110 |
HSK100A-SFRA3-165-M67 | 3 | 7.5 | 165 | 67 | 69 | 14.5 | 26 | 9 | 135 |
HSK100A-SFRA3-165-M97 | 3 | 7.5 | 165 | 97 | 39 | 17.7 | 26 | 9 | 135 |
HSK100A-SFRA3-195-M97 | 3 | 7.5 | 195 | 97 | 69 | 17.7 | 26 | 9 | 165 |
HSK100A-SFRA3-195-M127 | 3 | 7.5 | 195 | 127 | 39 | 20.8 | 36 | 9 | 165 |
HSK100A-SFRA3-225-M127 | 3 | 7.5 | 225 | 127 | 69 | 20.8 | 36 | 9 | 195 |
HSK100A-SFRA4-90-M22 | 4 | 10 | 90 | 22 | 39 | 12.3 | 26 | 12 | 60 |
HSK100A-SFRA4-110-M42 | 4 | 10 | 110 | 42 | 39 | 14.4 | 26 | 12 | 80 |
HSK100A-SFRA4-120-M22 | 4 | 10 | 120 | 22 | 69 | 12.3 | 26 | 12 | 90 |
HSK100A-SFRA4-135-M67 | 4 | 10 | 135 | 67 | 39 | 17 | 26 | 12 | 105 |
HSK100A-SFRA4-140-M42 | 4 | 10 | 140 | 42 | 69 | 14.4 | 26 | 12 | 110 |
HSK100A-SFRA4-165-M67 | 4 | 10 | 165 | 67 | 69 | 17 | 26 | 12 | 135 |
HSK100A-SFRA4-165-M97 | 4 | 10 | 165 | 97 | 39 | 20.2 | 26 | 12 | 135 |
HSK100A-SFRA4-195-M97 | 4 | 10 | 195 | 97 | 69 | 20.2 | 26 | 12 | 165 |
HSK100A-SFRA4-195-Ml 27 | 4 | 10 | 195 | 127 | 39 | 23.3 | 32 | 12 | 165 |
HSK100A-SFRA4-225-M127 | 4 | 10 | 225 | 127 | 69 | 23.3 | 36 | 12 | |
