Name: ER Sealed Nut
Brand: Shandong Jinjie Machinery Co., Ltd.

ER Sealed Nut

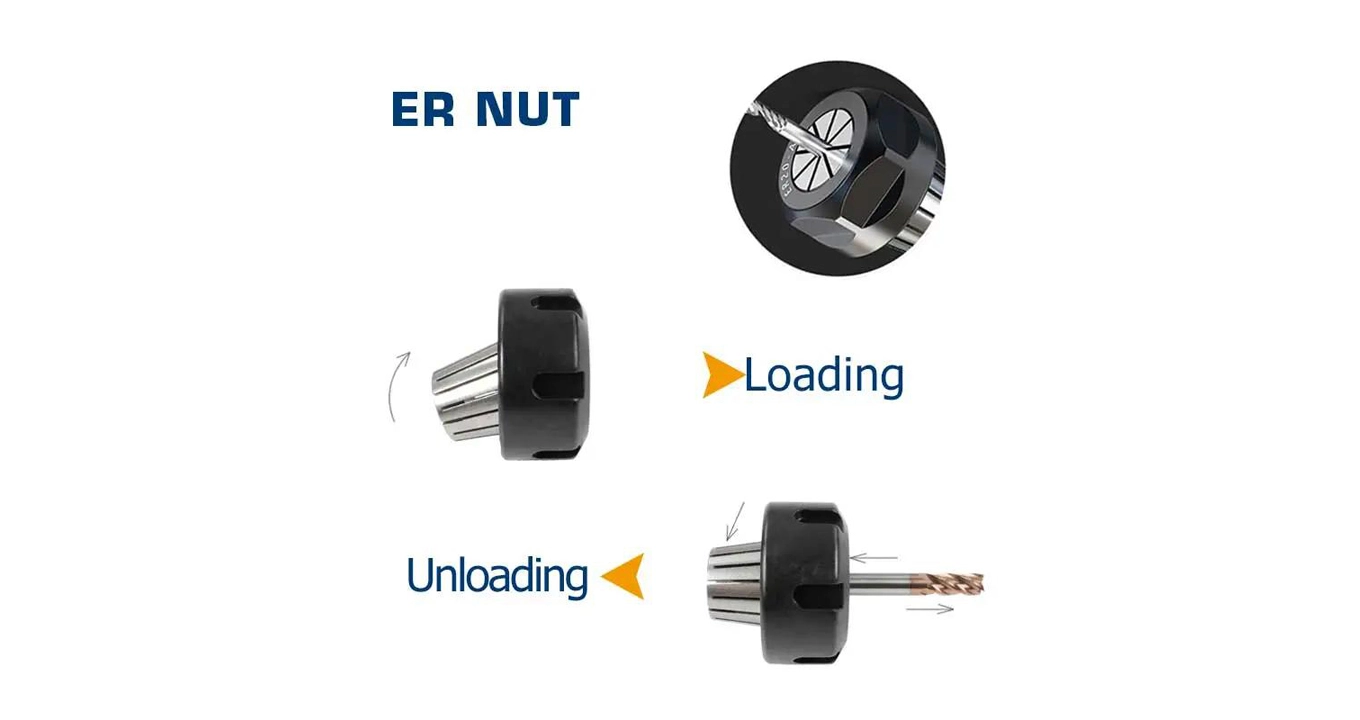

ER Nut is a type of clamping nut commonly used in precision machining applications. It is specifically designed to fit ER Collets, which hold cutting tools during machining operations. ER Nuts are typically made of high-quality steel, which provides durability and strength during use. ER Nuts feature a unique design that allows for the quick insertion and removal of cutting tools, making them ideal for use in CNC machines, milling machines, and other precision machining tools. They provide strong clamping force, ensuring the tool remains firmly in place during machining operations, reducing vibration and increasing machining efficiency. ER Nuts are available in various sizes, making them suitable for a wide range of machining applications.

Features

Nut is characterized by long process flow. Finish machining thread after overall quenching makes the critical dimensions more accurate and thread grade reaching grade 4H.

Buy ER Sealed Nut 

SPECIFICATION OF ER Sealed Nut

ER UM Nut
Size	D	d	L	M	Wt (kg)
ER16-UM	32	26	17.5	M22X1.5	0.05
ER20-UM	35	29	19	M25X1.5	0.1
ER25-UM	42	36	20	M32X1.5	0.14
ER32-UM	50	44	22.5	M40X1.5	0.2
ER40-UM	63	57	25.5	M50X1.5	0.3
ER50-UM	78	71	35.5	M64X2	0.5

ER Hex Nut
Size	D	d	L	M	Wt (kg)
ER11-A	19	17	11.3	M14X0.75	0.005
ER16-A	28	25	17.5	M22X1.5	0.01
ER20-A	34	30	19	M25X1.5	0.05

ER Mini Nut
Size	D	d	L	M	Wt (kg)
ER8-M	12	10	10	M10X0.75	0.005
ER11-M	16	12	12	M13X0.75	0.01
ER16-M	22	17.2	18	M19X1	0.05
ER20-M	28	22.5	19	M24X1	0.05
ER25-M	35	28.6	20	M30X1	0.08

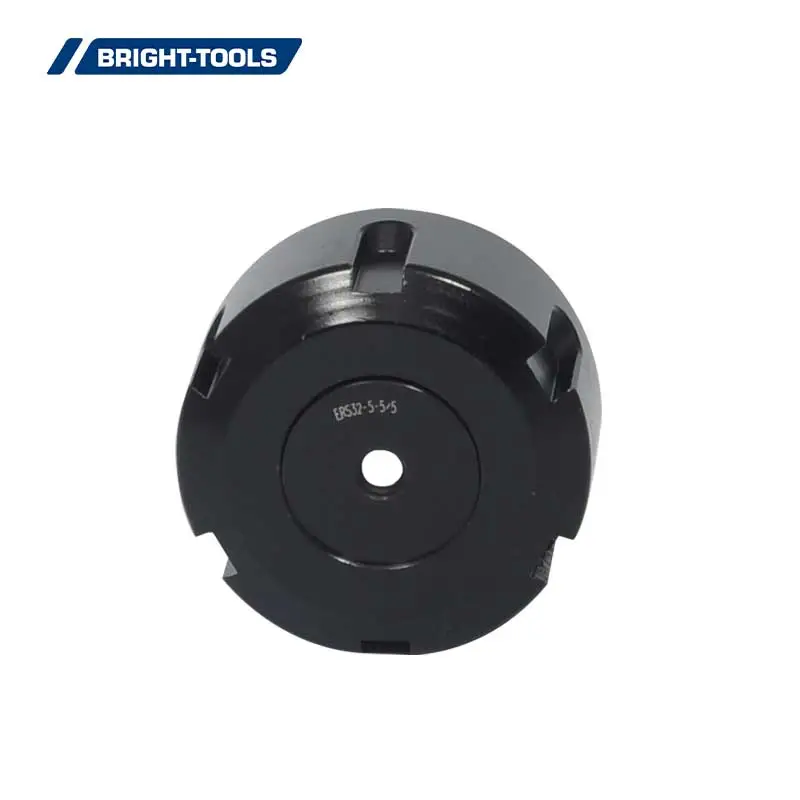

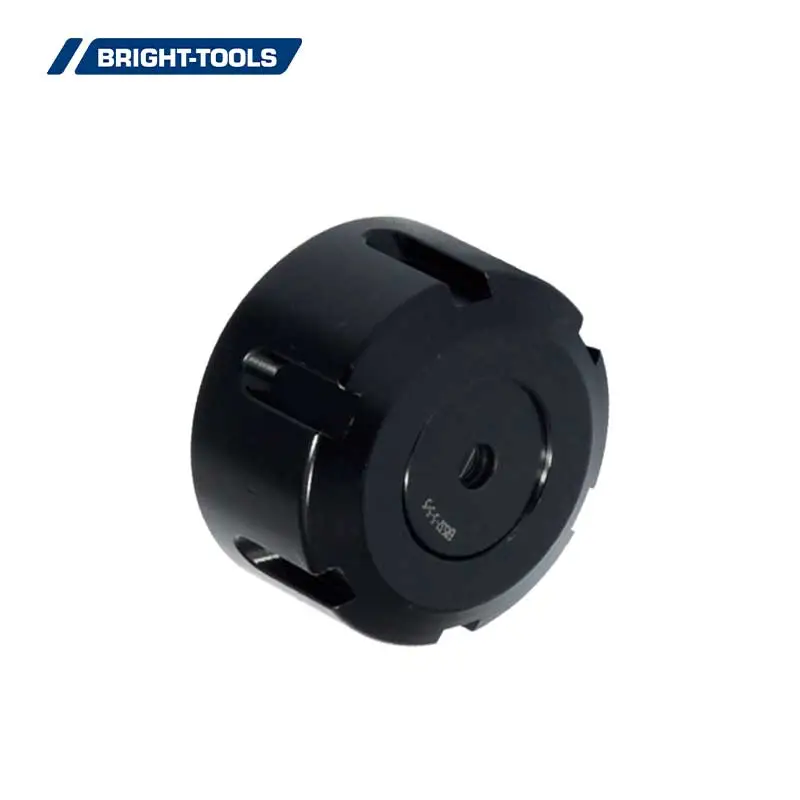

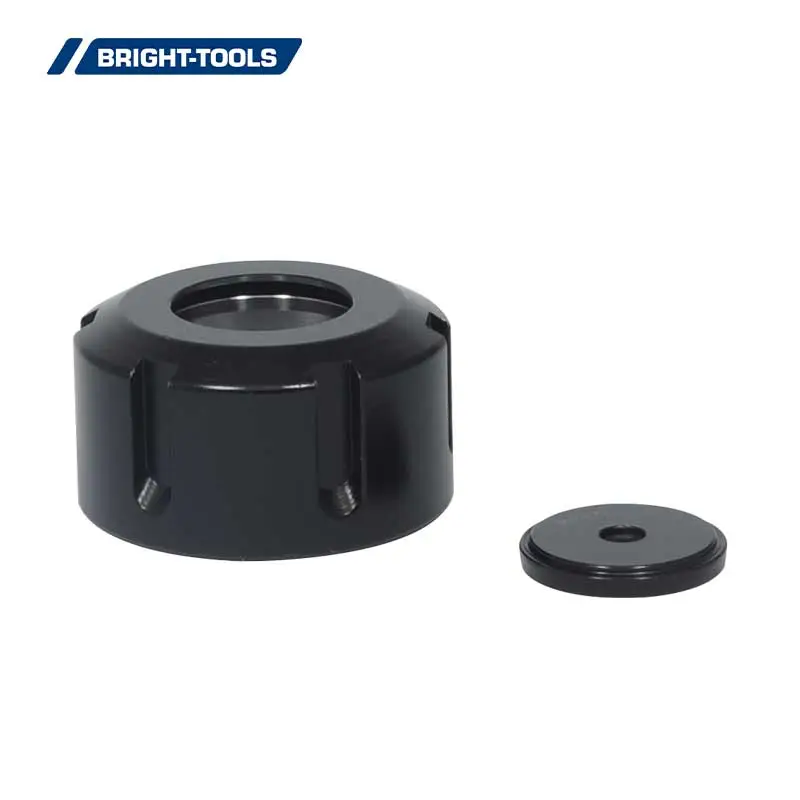

ER Sealed Nut
Size	D	d	L	M
ERS16	32	11	22.5	M22*1.5
ERS20	34	14	24	M25*1.5
ERS25	42	19	25	M32*1.5
ERS32	50	24	27.5	M40*1.5
ERS40	63	30	30.2	M50*1.5

Size	d	D
ERS16-1	1	13
ERS16-2	2	13
ERS16-3	3	13
ERS16-4	4	13
ERS16-5	5	13
ERS16-6	6	13
ERS16-7	7	13
ERS16-8	8	13
ERS16-9	9	13
ERS16-10	10	13
ERS20-1	1	16
ERS20-2	2	16
ERS20-3	3	16
ERS20-4	4	16
ERS20-5	5	16
ERS20-6	6	16
ERS20-7	7	16
ERS20-8	8	16
ERS20-9	9	16
ERS20-10	10	16
ERS20-11	11	16
ERS20-12	12	16
ERS20-13	13	16
ERS25-2	2	20.7
ERS25-3	3	20.7
ERS25-4	4	20.7
ERS25-5	5	20.7
ERS25-6	6	20.7
ERS25-7	7	20.7
ERS25-8	8	20.7
ERS25-9	9	20.7
ERS25-10	10	20.7
ERS25-11	11	20.7
ERS25-12	12	20.7
ERS25-13	13	20.7
ERS25-14	14	20.7
ERS25-15	15	20.7
ERS25-16	16	20.7
ERS32-2	2	27
ERS32-3	3	27
ERS32-4	4	27
ERS32-5	5	27
ERS32-6	6	27
ERS32-7	7	27
ERS32-8	8	27
ERS32-9	9	27
ERS32-10	10	27
ERS32-11	11	27
ERS32-12	12	27
ERS32-13	13	27
ERS32-14	14	27
ERS32-15	15	27
ERS32-16	16	27
ERS32-17	17	27
ERS32-18	18	27
ERS32-19	19	27
ERS32-20	20	27
ERS40-3	3	33.5
ERS40-4	4	33.5
ERS40-5	5	33.5
ERS40-6	6	33.5
ERS40-7	7	33.5
ERS40-8	8	33.5
ERS40-9	9	33.5
ERS40-10	10	33.5
ERS40-11	11	33.5
ERS40-12	12	33.5
ERS40-13	13	33.5
ERS40-14	14	33.5
ERS40-15	15	33.5
ERS40-16	16	33.5
ERS40-17	17	33.5
ERS40-18	18	33.5
ERS40-19	19	33.5
ERS40-20	20	33.5
ERS40-21	21	33.5
ERS40-22	22	33.5
ERS40-23	23	33.5
ERS40-24	24	33.5
ERS40-25	25	33.5
ERS40-26	26	33.5

Size	D	L	M
ER11MS	16	12	M13*0.75
ER16MS	22	17	M19*1.0
ER20MS	28	19	M24*1.0
ER25MS	35	20	M30*1.0

Size	D	L	M
GER16	27	19	TM22*1.5
GER20	30	22	TM26*1.5
GER25	40	25.9	TM32*1.5
GER32	48	24.5	TM40*1.5

ER Sealed Nut

Features

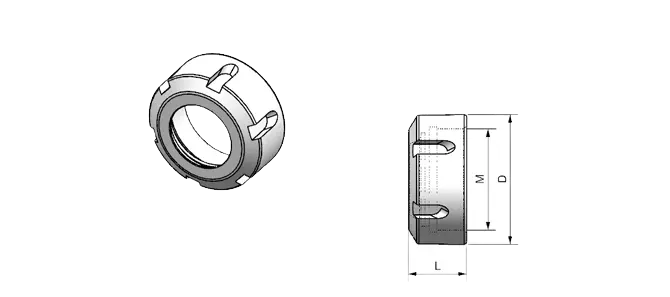

TECHNICAL DRAWING OF ER Sealed Nut
