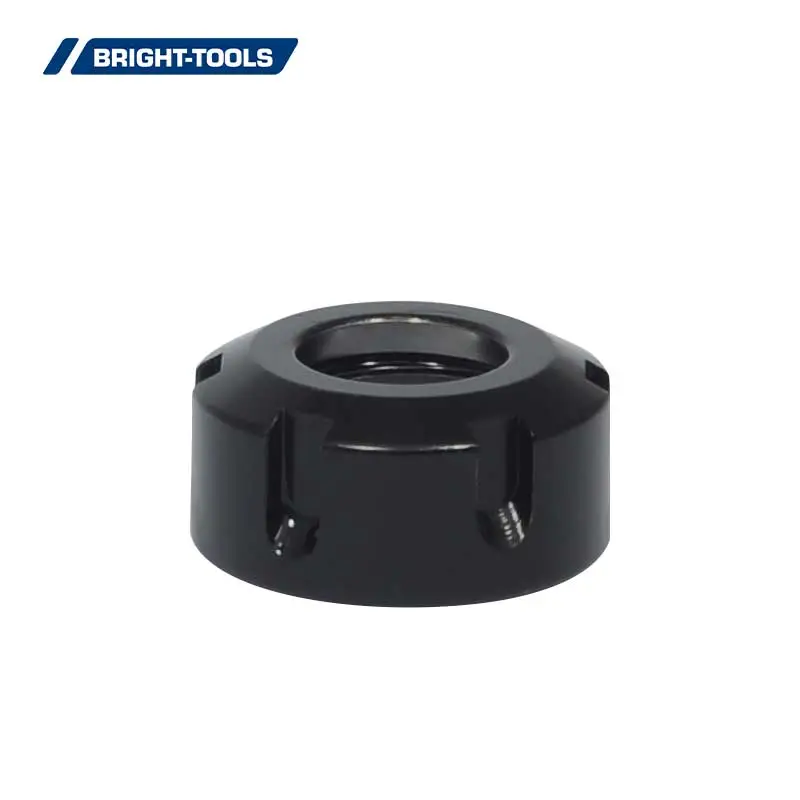

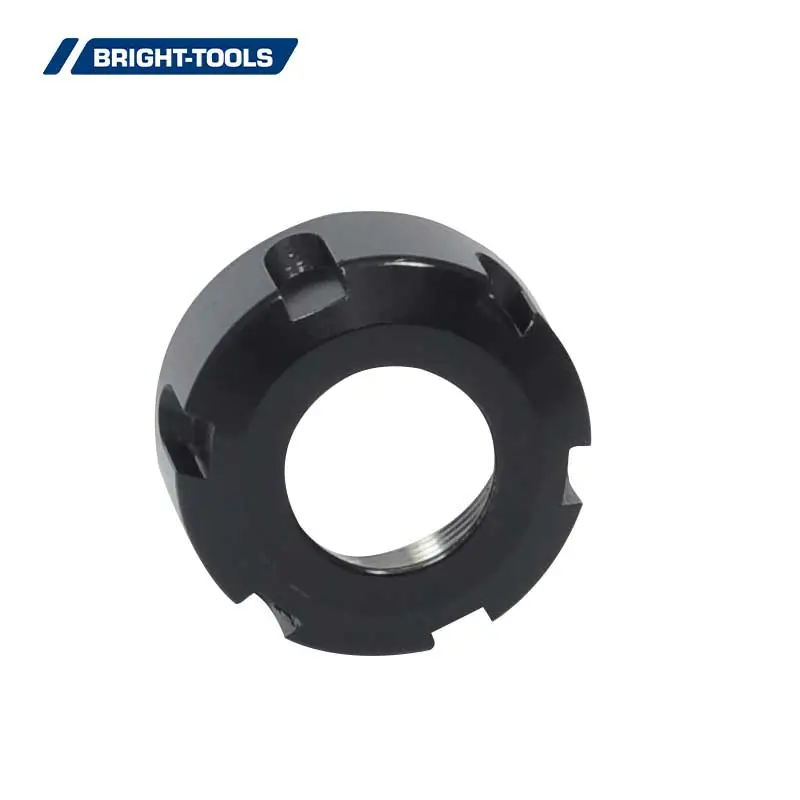

ER Nut-UM
Feature: Nut is characterized by long process flow. Finish machining thread after overall quenching makes the critical dimensions more accurate and thread grade reaching grade 4H.

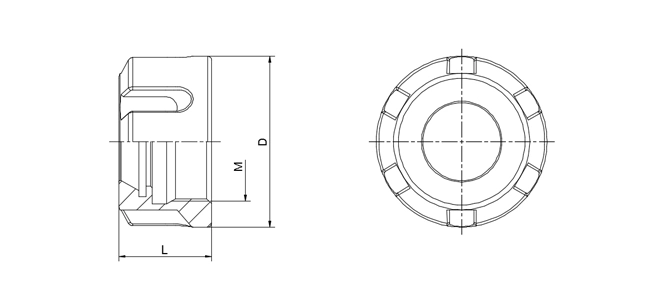

Size | D | d | L | M | Wt (kg) |
ER16-UM | 32 | 26 | 17.5 | M22X1.5 | 0.05 |
ER20-UM | 35 | 29 | 19 | M25X1.5 | 0.1 |
ER25-UM | 42 | 36 | 20 | M32X1.5 | 0.14 |
ER32-UM | 50 | 44 | 22.5 | M40X1.5 | 0.2 |
ER40-UM | 63 | 57 | 25.5 | M50X1.5 | 0.3 |
ER50-UM | 78 | 71 | 35.5 | M64X2 | 0.5 |
