cat 50 tool holders DIN2080 Power Milling Chuck

DIN2080 Power Milling Chuck

NT milling chuck is suitable for drilling and heavy cutting, High clamping force increases productivity and extends tool life.

1. Triple seal to prevent iron filings and coolant pollution.

2. Contains ball bearings to reduce frictional resistance and parts loss during locking.

3. High beating accuracy, 3 times the diameter beating 5-8u.

Buy DIN2080 Power Milling Chuck

TECHNICAL DRAWING OF DIN2080 POWER MILLING CHUCK

Power Milling Chuck

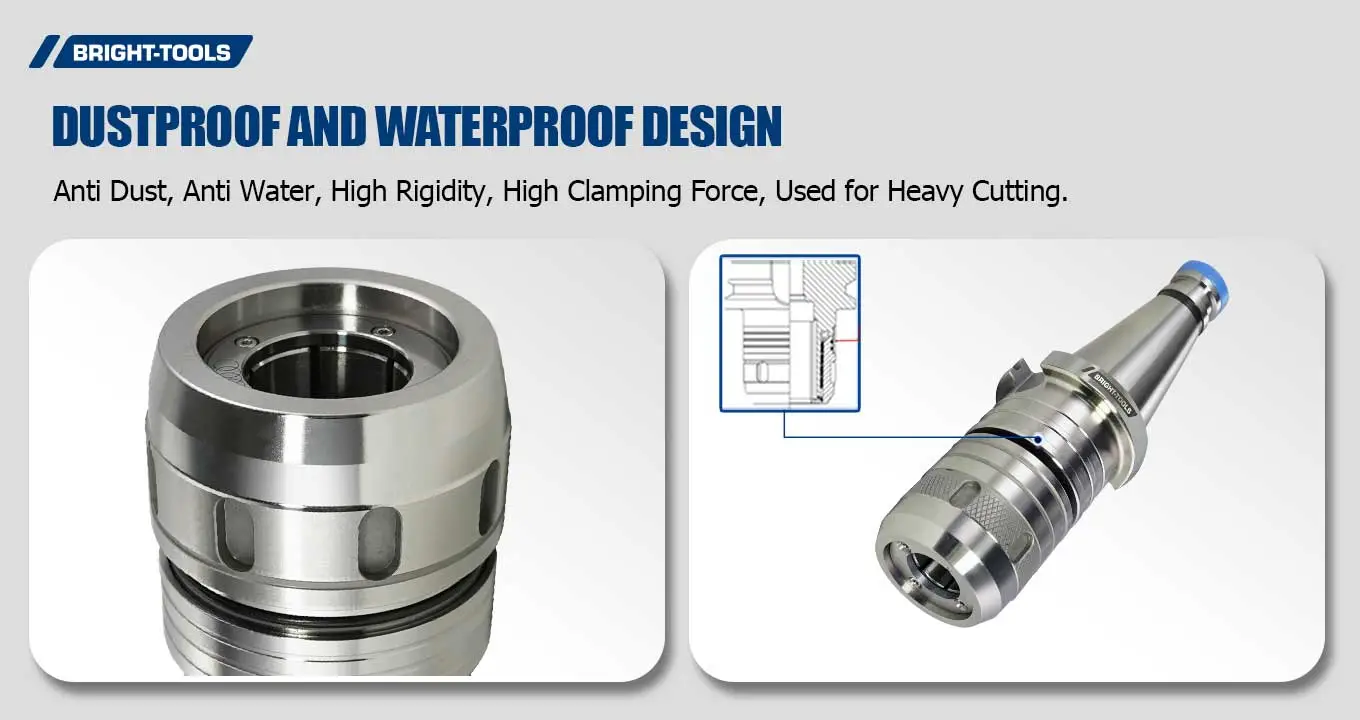

Dustproof And Waterproof Design

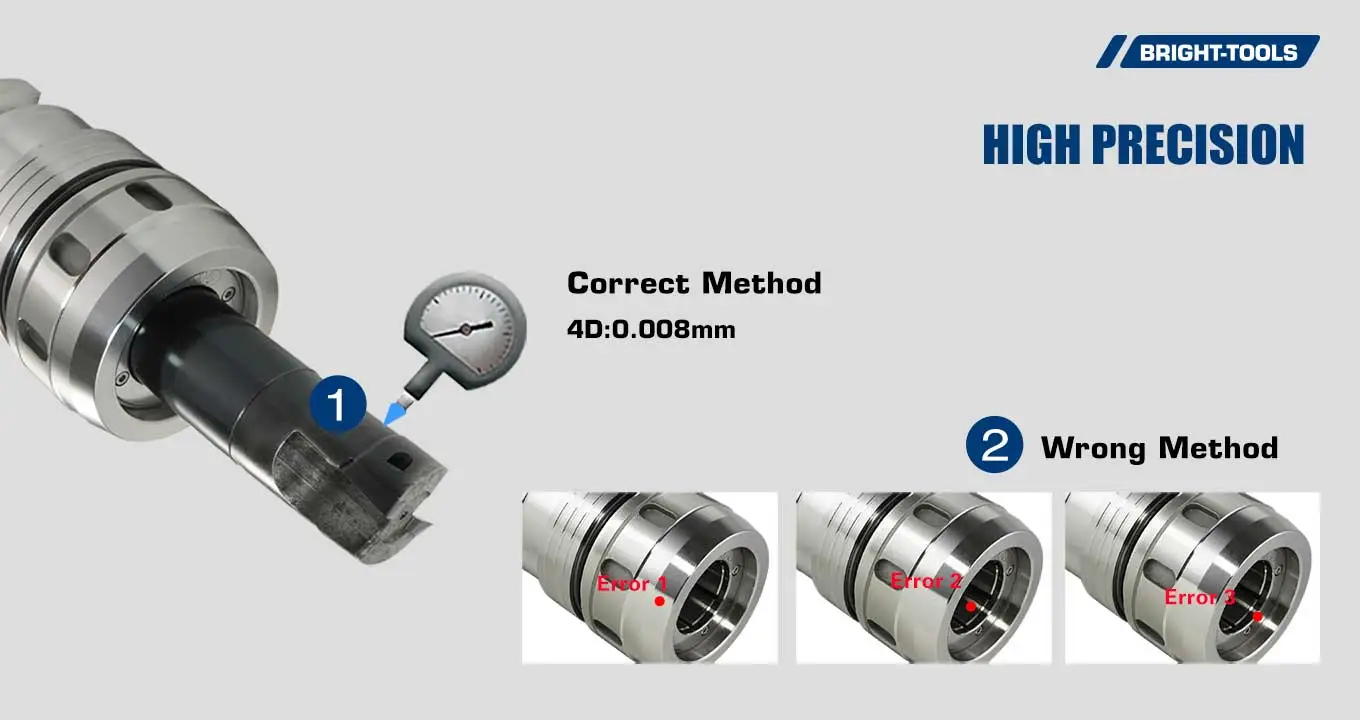

High Precision

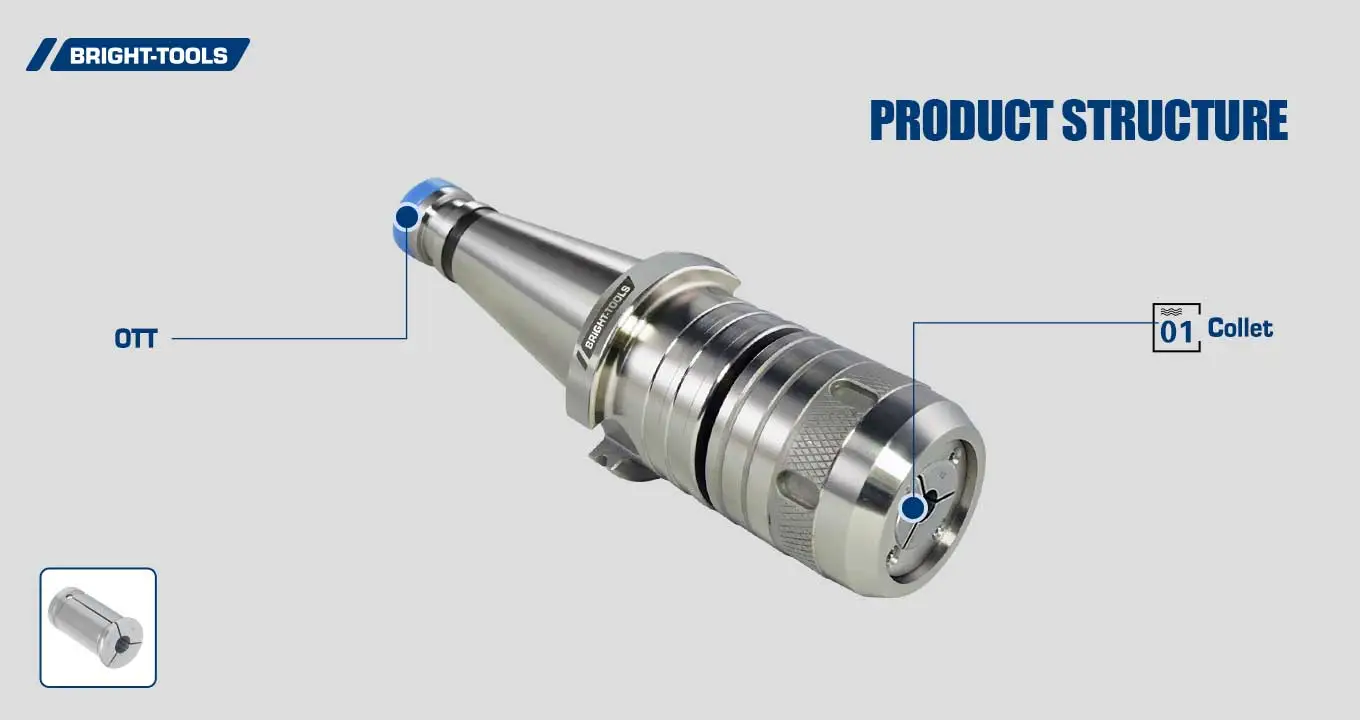

Product Structure

High Concentricity Of Nt Tool Holders

Dustproof And Waterproof Design Of Nt 40 Tool Holder

High Precision Of Din 2080

Product Structure Of Cnc Tool Holder

SPECIFICATION OF DIN2080 POWER MILLING CHUCK

SPECIFICATION OF DIN2080 POWER MILLING CHUCK

SizedDLCapacityMWt (kg)
NT40-HC25-105(OTT)25591053-20; 25M16
NT40-HC32-105(OTT)32721053-25; 32M16







NT50-HC32-110(OTT)32721103-25; 32M24
NT50-HC42-120(OTT)42991203-32; 42M24
