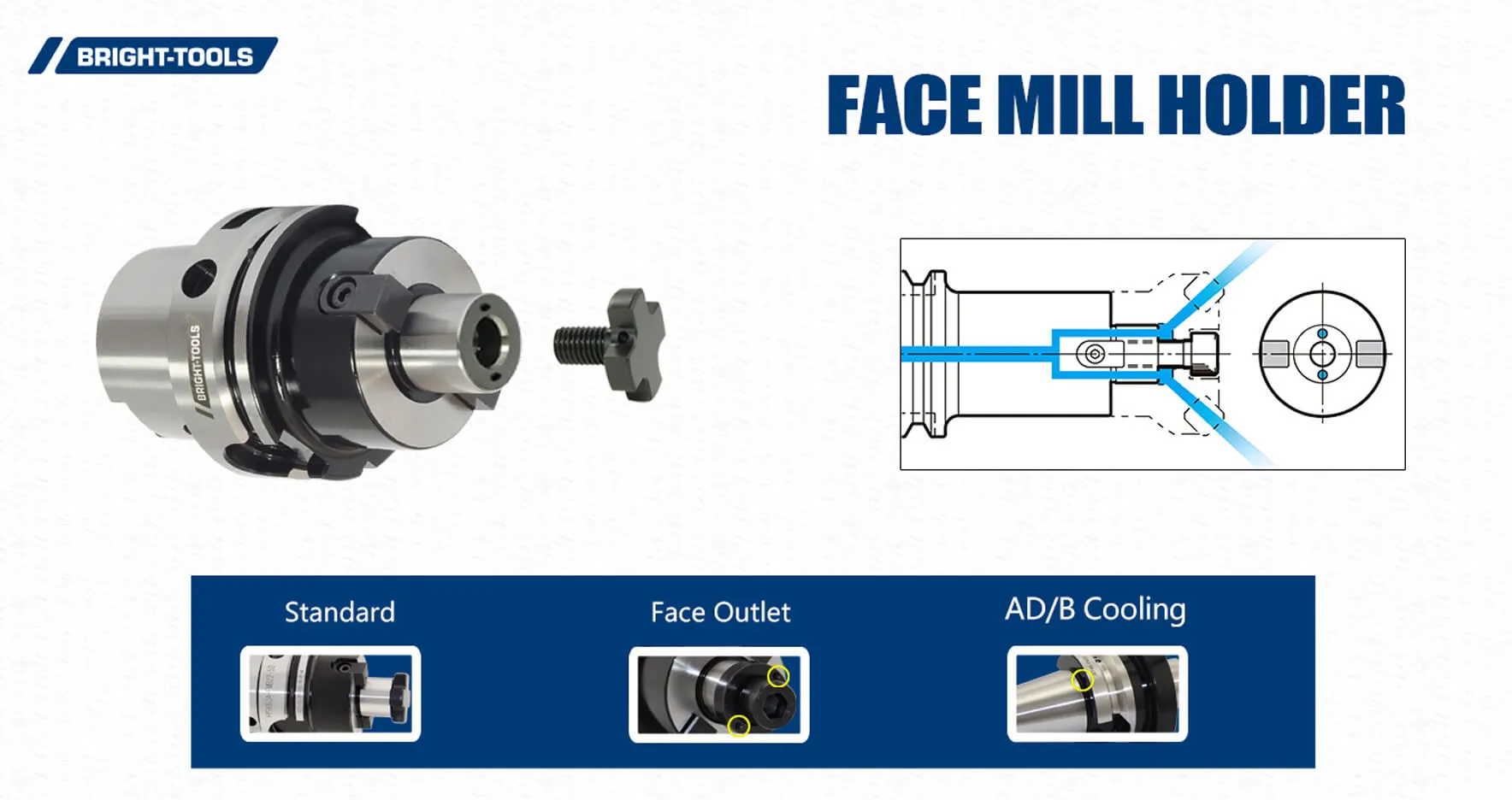

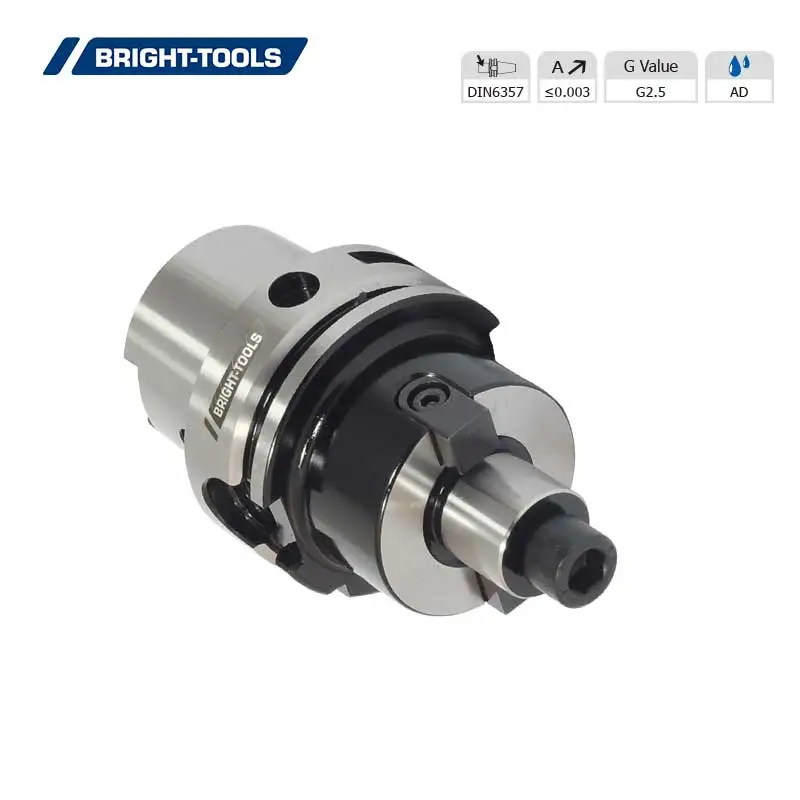

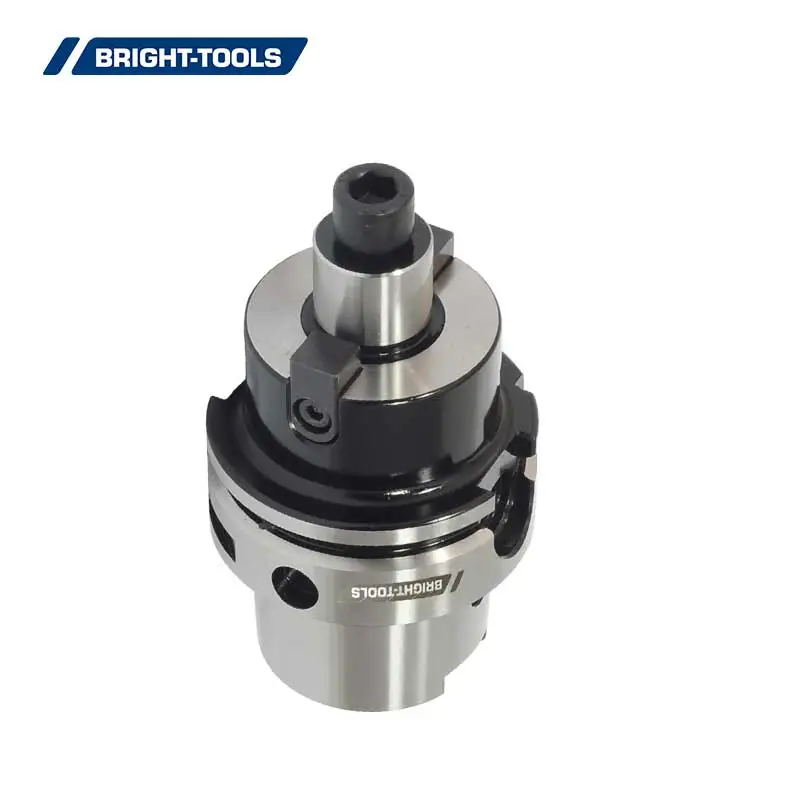

DIN 69893 Face Mill Holder
HSKA-FMB face milling tool holder is a kind of tool holder specially used for face milling cutters.

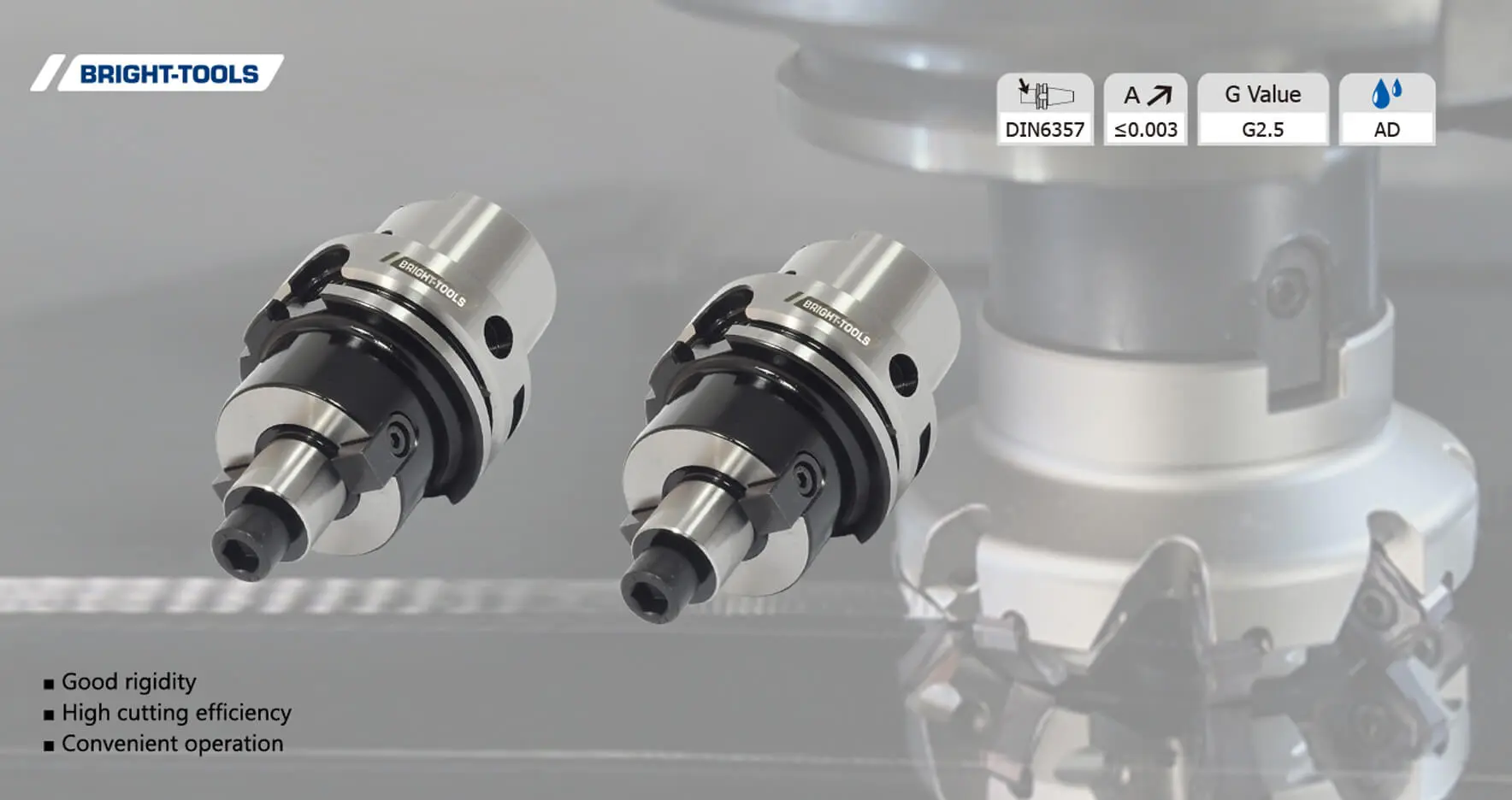

1. Good rigidity.
2. High cutting efficiency.
3. Convenient operation.

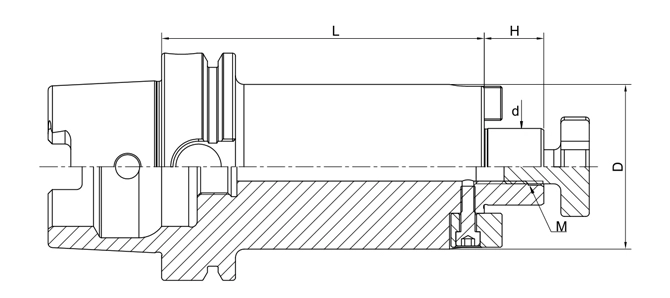

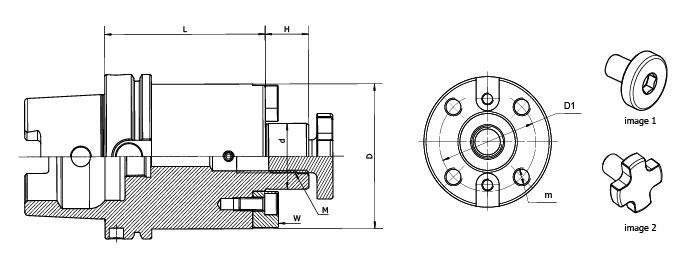

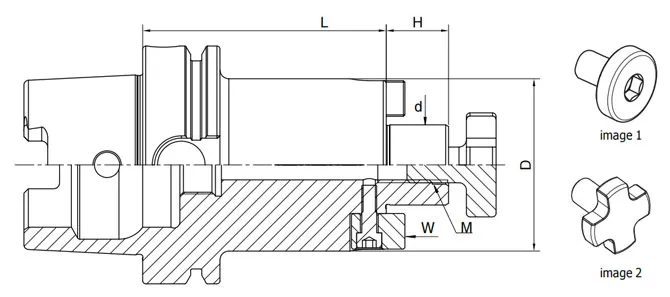

Size | d | D | H | L | M |
HSK50A-FMB16-50 | 16 | 38 | 17 | 50 | M8 |
HSK50A-FMB22-60 | 22 | 48 | 19 | 60 | M10 |
HSK50A-FMB27-60 | 27 | 58 | 21 | 60 | M12 |
HSK50A-FMB32-60 | 32 | 78 | 24 | 60 | M16 |
HSK63A-FMB16-50 | 16 | 38 | 17 | 50 | M8 |
HSK63A-FMB22-50 | 22 | 48 | 19 | 50 | M10 |
HSK63A-FMB27-60 | 27 | 58 | 21 | 60 | M12 |
HSK63A-FMB32-60 | 32 | 78 | 24 | 60 | M16 |
HSK63A-FMB40-60 | 40 | 88 | 27 | 60 | M20 |
HSK63A-FMB16-100 | 16 | 38 | 17 | 100 | M8 |
HSK63A-FMB22-100 | 22 | 48 | 19 | 100 | M10 |
HSK63A-FMB27-100 | 27 | 58 | 21 | 100 | M12 |
HSK63A-FMB32-100 | 32 | 78 | 24 | 100 | M16 |
HSK63A-FMB40-100 | 40 | 88 | 27 | 100 | M20 |
HSK63A-FMB16-160 | 16 | 38 | 17 | 160 | M8 |
HSK63A-FMB22-160 | 22 | 48 | 19 | 160 | M10 |
HSK63A-FMB27-160 | 27 | 58 | 21 | 160 | M12 |
HSK63A-FMB32-160 | 32 | 78 | 24 | 160 | M16 |
HSK63A-FMB40-160 | 40 | 88 | 27 | 160 | M20 |
HSK63A-FMB16-200 | 16 | 38 | 17 | 200 | M8 |
HSK63A-FMB22-200 | 22 | 48 | 19 | 200 | M10 |
HSK63A-FMB27-200 | 27 | 58 | 21 | 200 | M12 |
HSK63A-FMB32-200 | 32 | 78 | 24 | 200 | M16 |
HSK63A-FMB40-200 | 40 | 88 | 27 | 200 | M20 |
HSK80A-FMB22-50 | 22 | 48 | 19 | 50 | M10 |
HSK80A-FMB27-50 | 27 | 58 | 21 | 50 | M12 |
HSK80A-FMB32-60 | 32 | 78 | 24 | 60 | M16 |
HSK80A-FMB40-60 | 40 | 88 | 27 | 60 | M20 |
HSK100A-FMB22-50 | 22 | 48 | 19 | 50 | M10 |
HSK100A-FMB27-50 | 27 | 58 | 21 | 50 | M12 |
HSK100A-FMB32-60 | 32 | 78 | 24 | 60 | M16 |
HSK100A-FMB40-60 | 40 | 88 | 27 | 60 | M20 |
HSK100A-FMB60-70 | 60 | 129 | 25 | 70 | M30 |
HSK100A-FMB22-100 | 22 | 48 | 19 | 100 | M10 |
HSK100A-FMB27-100 | 27 | 58 | 21 | 100 | M12 |
HSK100A-FMB32-100 | 32 | 78 | 24 | 100 | M16 |
HSK100A-FMB40-100 | 40 | 88 | 27 | 100 | M20 |
HSK100A-FMB22-160 | 22 | 48 | 19 | 160 | M10 |
HSK100A-FMB27-160 | 27 | 58 | 21 | 160 | M12 |
HSK100A-FMB32-160 | 32 | 78 | 24 | 160 | M16 |
HSK100A-FMB40-160 | 40 | 88 | 27 | 160 | M20 |
HSK100A-FMB22-200 | 22 | 48 | 19 | 200 | M10 |
HSK100A-FMB27-200 | 27 | 58 | 21 | 200 | M12 |
HSK100A-FMB32-200 | 32 | 78 | 24 | 200 | M16 |
HSK100A-FMB40-200 | 40 | 88 | 27 | 200 | M20 |
HSK100A-FMB22-250 | 22 | 48 | 19 | 250 | M10 |
HSK100A-FMB27-250 | 27 | 58 | 21 | 250 | M12 |
HSK100A-FMB32-250 | 32 | 78 | 24 | 250 | M16 |
HSK100A-FMB40-250 | 40 | 88 | 27 | 250 | M20 |
HSK100A-FMB22-300 | 22 | 48 | 19 | 300 | M10 |
HSK100A-FMB27-300 | 27 | 58 | 21 | 300 | M12 |
HSK100A-FMB32-300 | 32 | 78 | 24 | 300 | M16 |
HSK100A-FMB40-300 | 40 | 88 | 27 | 300 | M20 |
