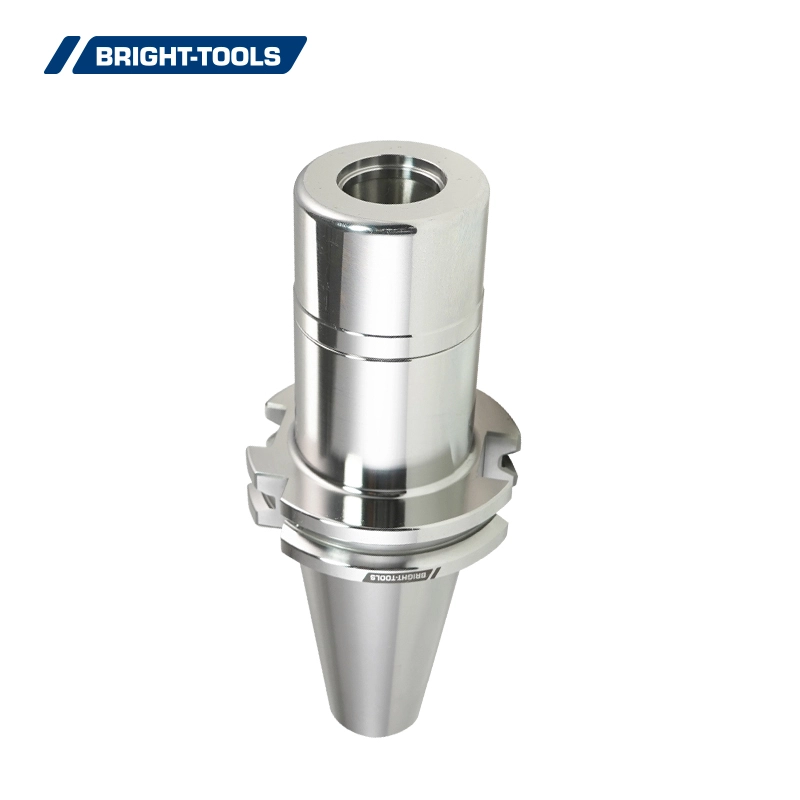

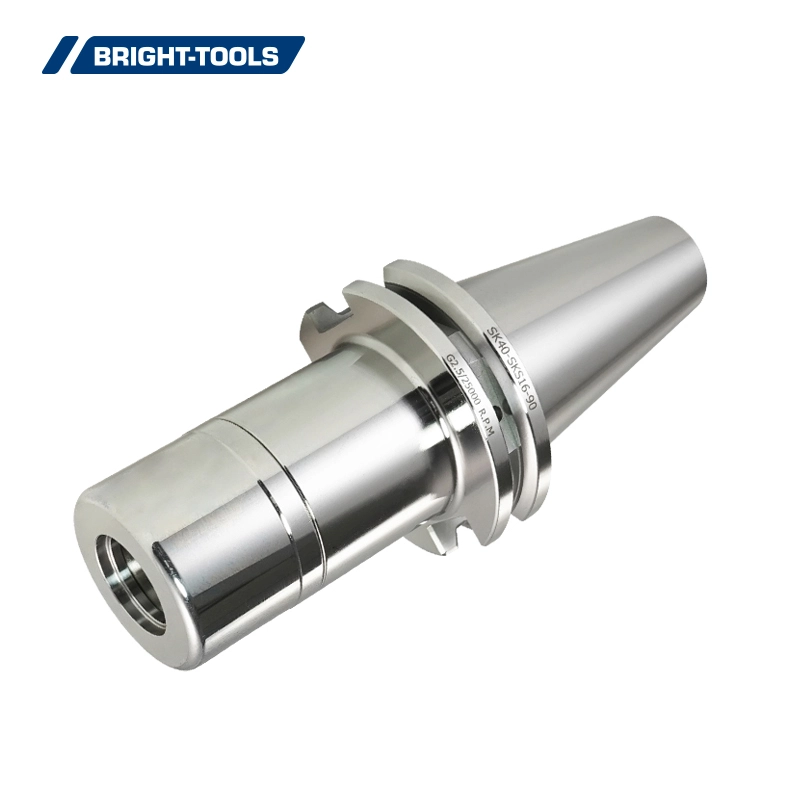

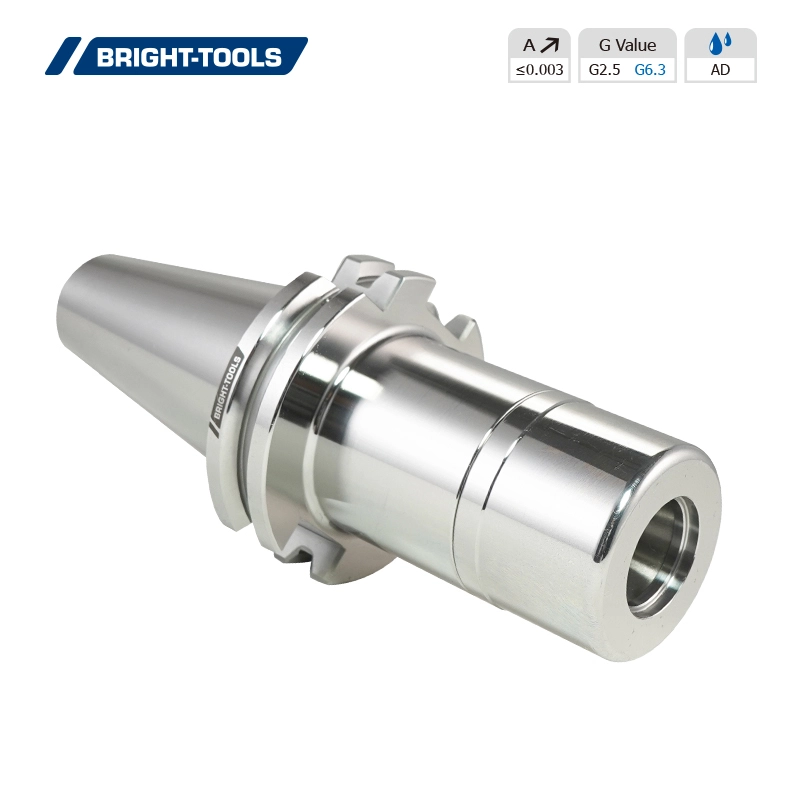

SK-SKS Collet Chuck is very good at for high speed processing especially for electronic workpiece processing.

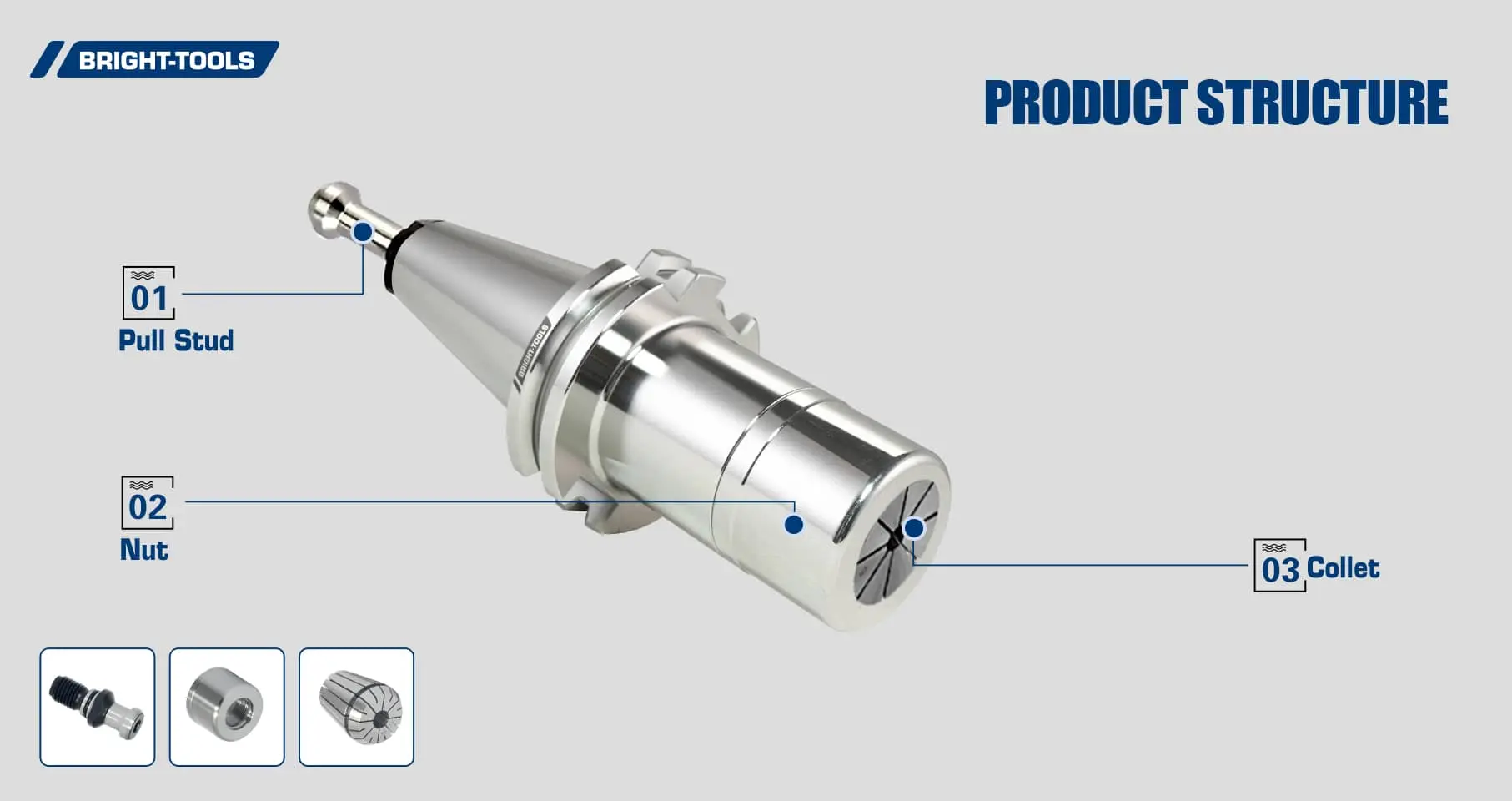

1. The nut is designed in a full round, with small wind resistance and low noise, G2.5/25000 RPM ensure stable high-speed processing.
2. The collet adopts a unilateral 4° design, which bring higher repeat clamping accuracy.
3. Slim body compared with ER collets, has stronger air avoidance.

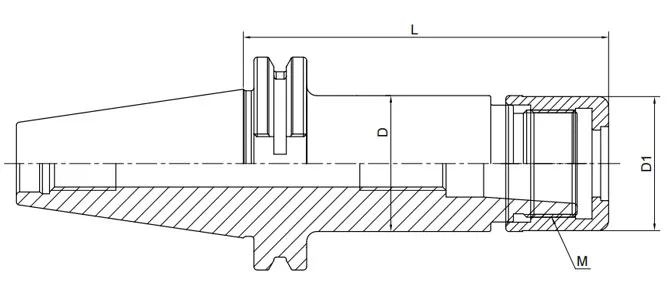

| Size | D | D1 | L | Capacity | M |
| SK40-SKS10-60 | 27.5 | 27.1 | 60 | 2-10 | M21.5*1 |
| SK40-SKS16-60 | 40.6 | 40 | 60 | 3-16 | M32*1.5 |
| SK40-SKS10-90 | 27.5 | 27.1 | 90 | 2-10 | M21.5*1 |
| SK40-SKS16-90 | 40.6 | 40 | 90 | 3-16 | M32*1.5 |
| SK40-SKS10-120 | 27.5 | 27.1 | 120 | 2-10 | M21.5*1 |
| SK40-SKS16-120 | 40.6 | 40 | 120 | 3-16 | M32*1.5 |
| SK50-SKS10-105 | 27.5 | 27.1 | 105 | 2-10 | M21.5*1 |
| SK50-SKS16-105 | 40.6 | 40 | 105 | 3-16 | M32*1.5 |
| SK50-SKS10-135 | 27.5 | 27.1 | 135 | 2-10 | M21.5*1 |
| SK50-SKS16-135 | 40.6 | 40 | 135 | 3-16 | M32*1.5 |
| SK50-SKS10-165 | 27.5 | 27.1 | 165 | 2-10 | M21.5*1 |
| SK50-SKS16-165 | 40.6 | 40 | 165 | 3-16 | M32*1.5 |
