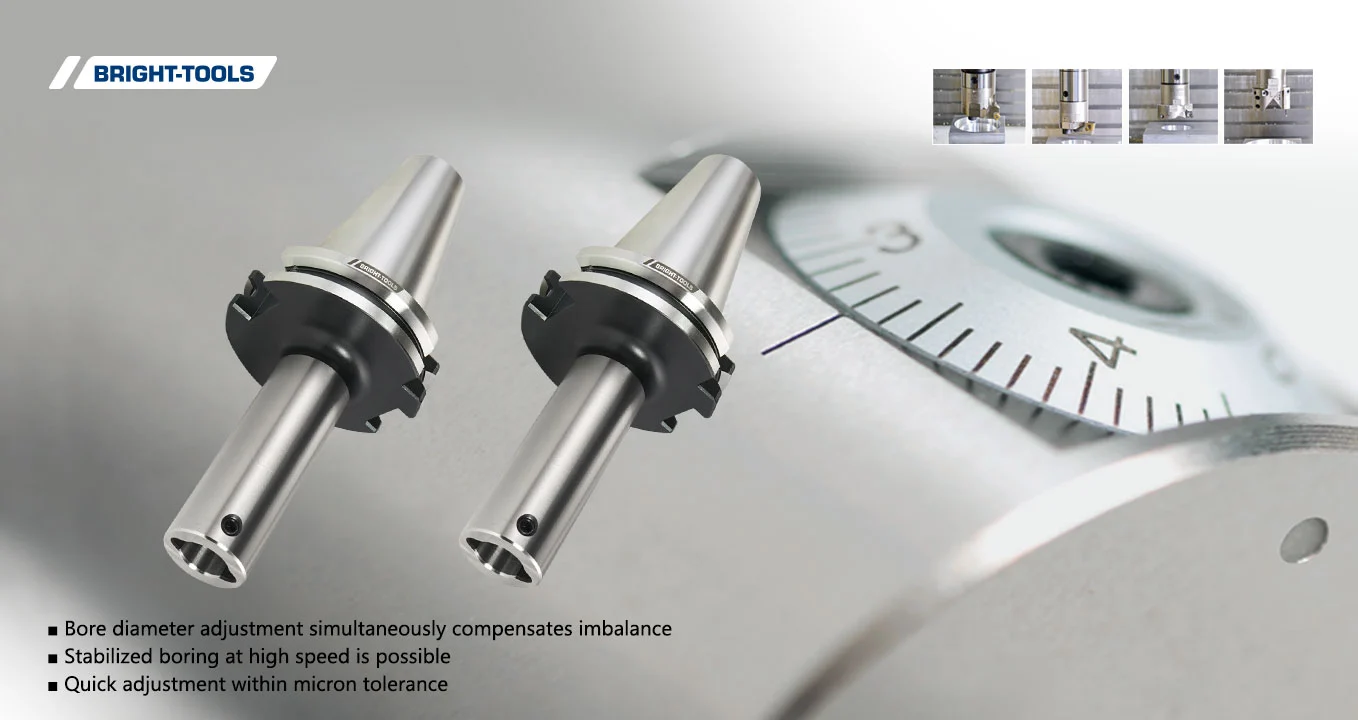

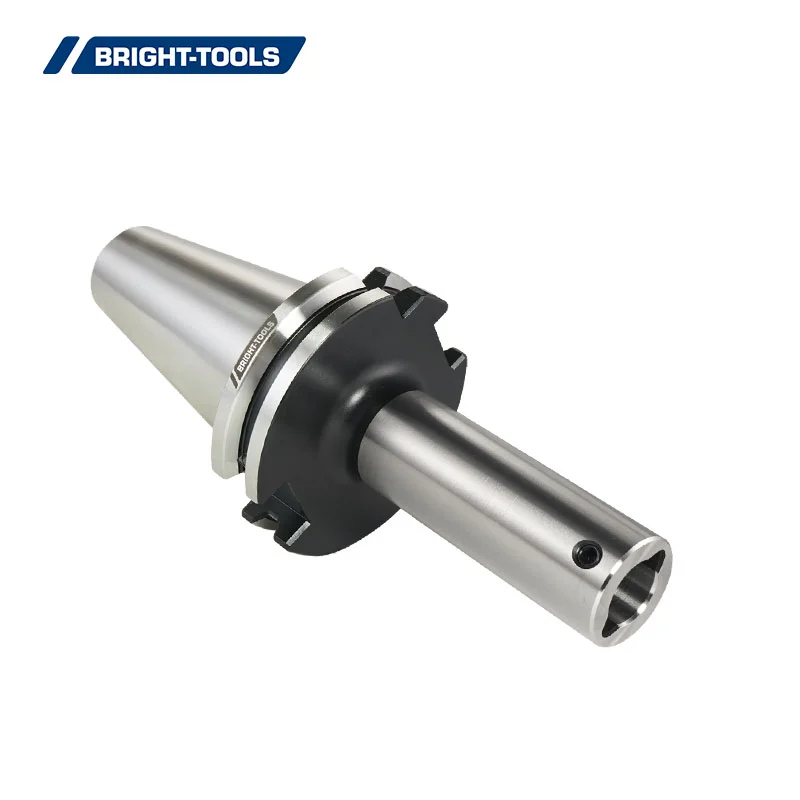

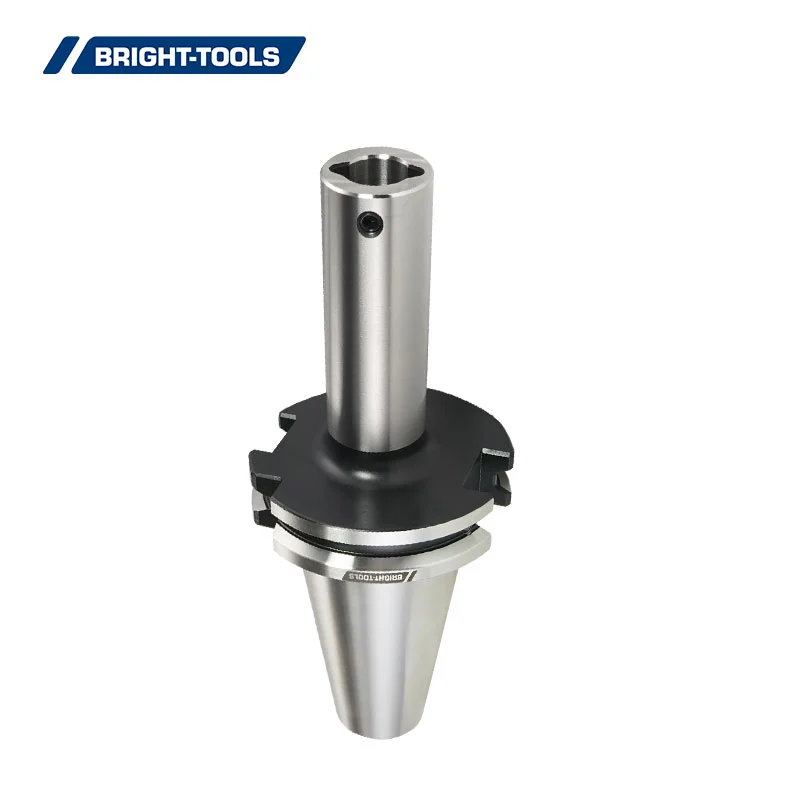

DIN 69871 Boring Tool Holder
DIN 69871 Boring Tool Holder Exceeds industry standards for taper accuracy and concentricity
One offset axial tapered locking screws maximize rigidity and allow fast tool changes
Use extensions to increase boring depth

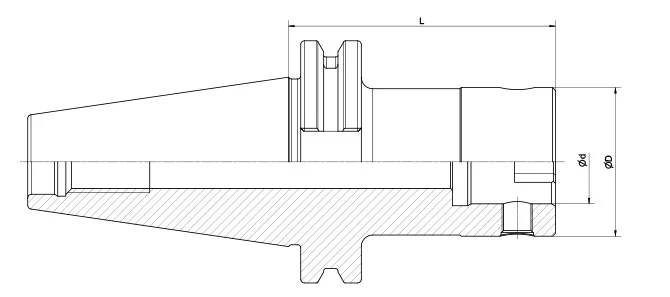

Size | CK No. | D | d | L |
SK30-CK1-70 | CK1 | 19 | 11 | 70 |
SK30-CK2-70 | CK2 | 24 | 14 | 70 |
SK30-CK3-75 | CK3 | 31 | 18 | 75 |
SK30-CK4-50 | CK4 | 39 | 22 | 50 |
SK30-CK5-50 | CK5 | 50 | 28 | 50 |
SK30-CK6-60 | CK6 | 64 | 36 | 60 |
SK40-CK1-70 | CK1 | 19 | 11 | 70 |
SK40-CK1-100 | CK1 | 19 | 11 | 100 |
SK40-CK2-50 | CK2 | 24 | 14 | 50 |
SK40-CK2-100 | CK2 | 24 | 14 | 100 |
SK40-CK3-50 | CK3 | 31 | 18 | 50 |
SK40-CK3-100 | CK3 | 31 | 18 | 100 |
SK40-CK3-135T | CK3 | 31 | 18 | 135 |
SK40-CK3-165T | CK3 | 31 | 18 | 165 |
SK40-CK4-50 | 39 | 22 | 20 | |
SK40-CK4-100 | CK4 | 39 | 22 | 100 |
SK40-CK4-150T | CK4 | 39 | 22 | 150 |
SK40-CK5-80 | CK5 | 50 | 28 | 50 |
SK40-CK5-100 | CK5 | 50 | 28 | 100 |
SK40-CK5-150 | CK5 | 50 | 28 | 150 |
SK40-CK5-180 | CK5 | 50 | 28 | 180 |
SK40-CK6-90 | CK6 | 64 | 36 | 90 |
SK40-CK6-150 | CK6 | 64 | 36 | 150 |
SK40-CK6-180 | CK6 | 64 | 36 | 180 |
SK40-CK7-100 | CK7 | 90 | 46 | 100 |
SK50-CK1-80 | CK1 | 19 | 11 | 80 |
SK50-CK2-80 | CK2 | 24 | 14 | 80 |
SK50-CK2-105 | CK2 | 24 | 14 | 105 |
SK50-CK2-135T | CK2 | 24 | 14 | 135 |
SK50-CK2-165T | CK2 | 24 | 14 | 165 |
SK50-CK3-85 | CK3 | 31 | 18 | 85 |
SK50-CK3-110 | CK3 | 31 | 18 | 110 |
SK50-CK3-140T | CK3 | 31 | 18 | 140 |
SK50-CK3-170T | CK3 | 31 | 18 | 170 |
SK50-CK4-70 | CK4 | 39 | 22 | 70 |
SK50-CK4-100 | CK4 | 39 | 22 | 100 |
SK50-CK4-160T | CK4 | 39 | 22 | 160 |
SK50-CK4-200T | CK4 | 39 | 22 | 200 |
SK50-CK5-90 | CK5 | 50 | 28 | 90 |
SK50-CK5-160 | CK5 | 50 | 28 | 160 |
SK50-CK5-210t | CK5 | 50 | 28 | 210 |
SK50-CK5-250t | CK5 | 50 | 28 | 250 |
SK50-CK6-85 | CK6 | 64 | 36 | 85 |
SK50-CK6-160 | CK6 | 64 | 36 | 160 |
SK50-CK6-200 | CK6 | 64 | 36 | 200 |
SK50-CK6-250 | CK6 | 64 | 36 | 250 |
SK50-CK6-300t | CK6 | 64 | 36 | 300 |
SK50-CK7-85 | CK7 | 90 | 46 | 85 |
SK50-CK7-150 | CK7 | 90 | 46 | 150 |
SK50-CK7-210 | CK7 | 90 | 46 | 210 |
SK50-CK7-250 | CK7 | 90 | 46 | 250 |
SK50-CK7-300 | CK7 | 90 | 46 | 300 |
SK50-CK7-350 | CK7 | 90 | 46 | 350 |
