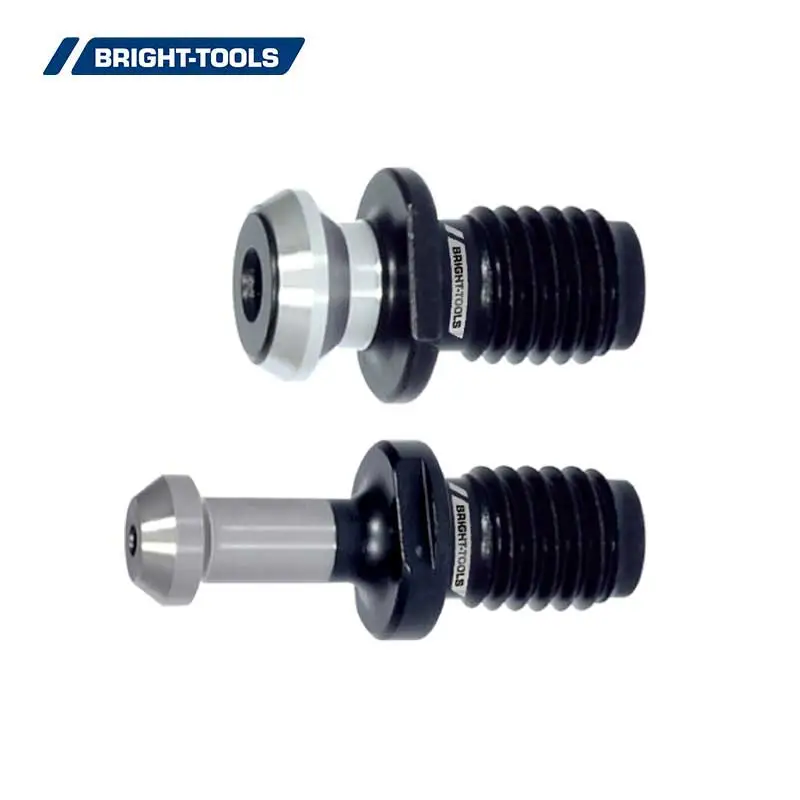

CAT Pull Stud
Used for ANSI B5.5 spindle

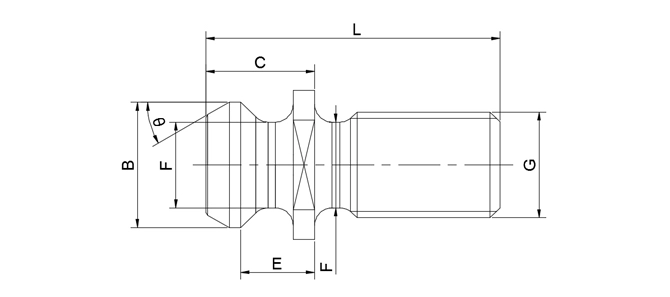

Size | Type | G | θ | L | B | C | E | F |
CAT40-A | A | 5/8"-11 | 45 | 1.5 | 0.74 | 0.64 | 0.44 | |
CAT50-A | A | 1"-8 | 45 | 2.3 | 1.14 | 1 | 0.7 | 0.82 |
Size | Type | G | θ | L | B | C | E | F |
BT-CAT40-45C | B | 5/8"-11 | 45 | 2.25 | 0.59 | 1.266 | 0.99 | 0.394 |
BT-CAT40-45C | B | 5/8"-11 | 45 | 2.25 | 0.59 | 1.266 | 0.99 | 0.394 |
BT-CAT50-90C | B | 1"-8 | 45 | 3.094 | 0.906 | 1.771 | 1.378 | 0.669 |
BT-CAT50-90C | B | 1"-8 | 90 | 3.094 | 0.906 | 1.771 | 1.378 | 0.669 |
