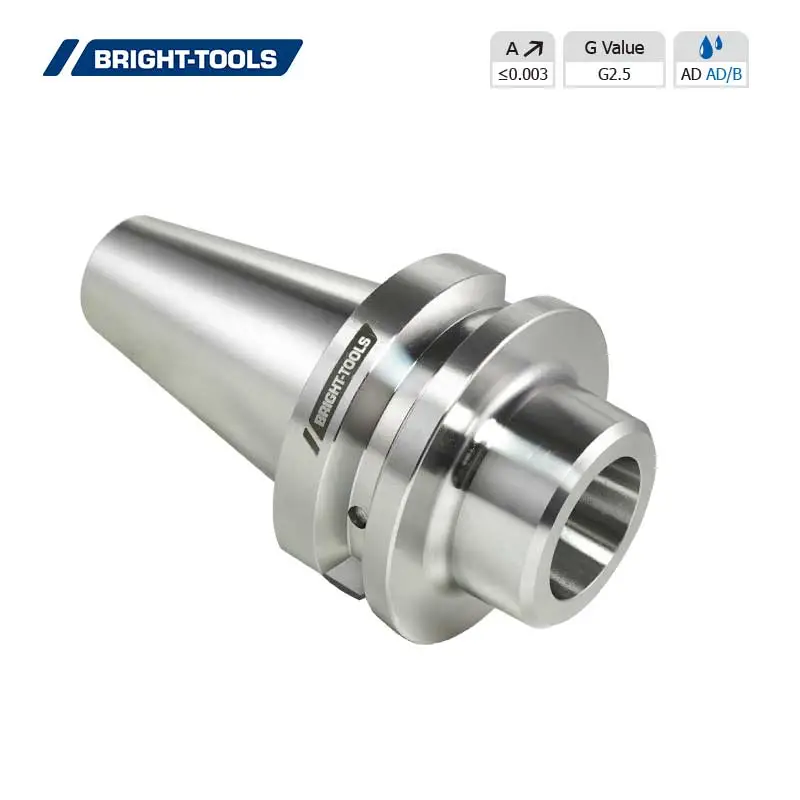

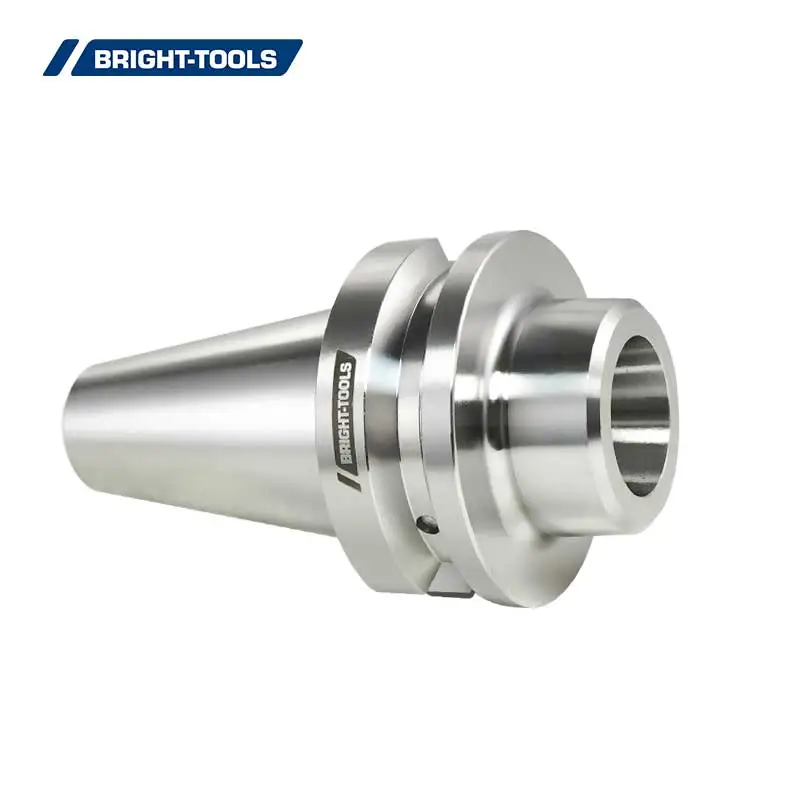

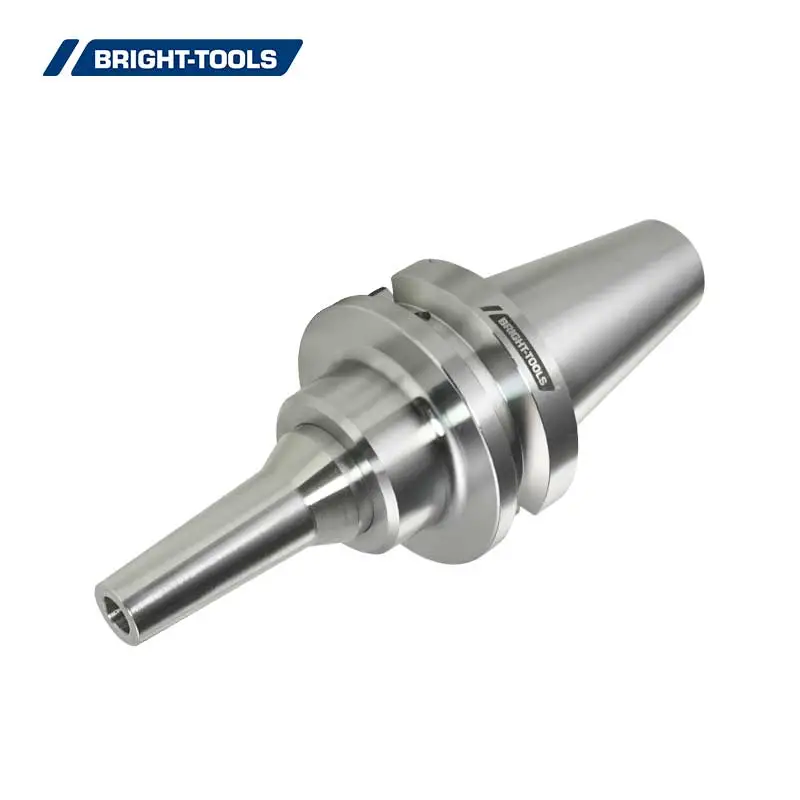

2 Piece BT Slim Shrink Fit Chuck
2 Piece BT Slim Shrink Fit Chuck
Versatile and economical and high runout accuracy
Compact with easy-shrink fitting
kinds of combination space and money saving

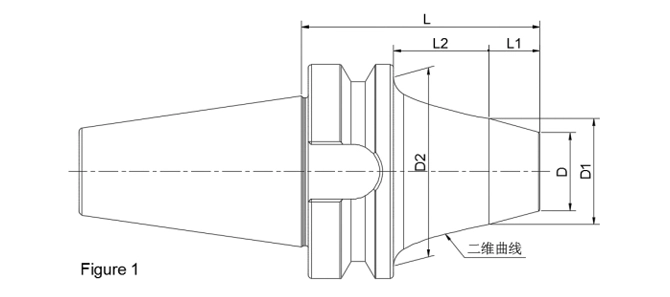

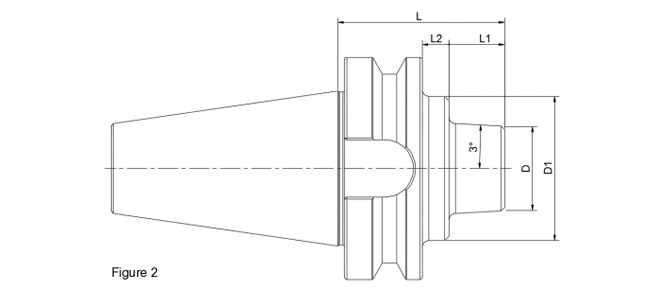

Size | D | D1 | D2 | L | L1 | L2 | Figure |
BT30-TSF06-35 | 19 | - | 34 | 35 | 13 | - | 1 |
BT30-TSF08-35 | 23 | - | 34 | 35 | 13 | - | 1 |
BT30-TSF12-35 | 38 | - | - | 35 | 13 | - | 2 |
BT40-TSF08-40 | 23 | - | 53 | 40 | 13 | - | 1 |
BT40-TSF12-45 | 38 | - | - | 45 | 18 | - | 2 |
BT40-TSF12-75 | 38 | - | - | 75 | 48 | - | 2 |
BT40-TSF12-135 | 41 | - | - | 135 | 108 | - | 2 |
BT50-TSF12-75 | 38 | 65 | - | 75 | 25 | 12 | 2 |
BT50-TSF12-105 | 41 | 66 | - | 105 | 55 | 12 | 2 |
BT50-TSF12-135 | 41 | 67 | - | 135 | 85 | 12 | 2 |
