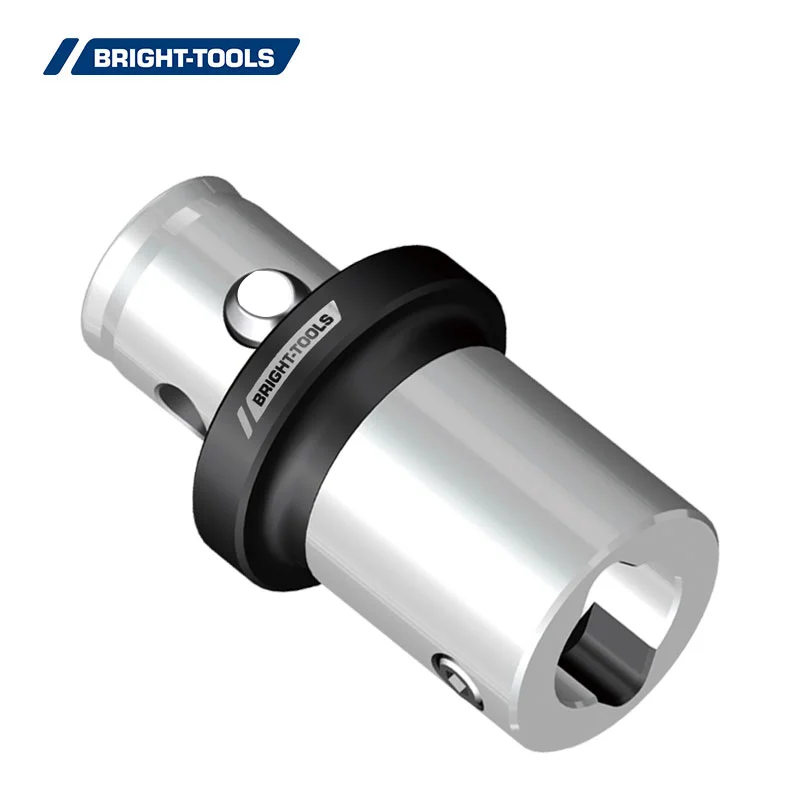

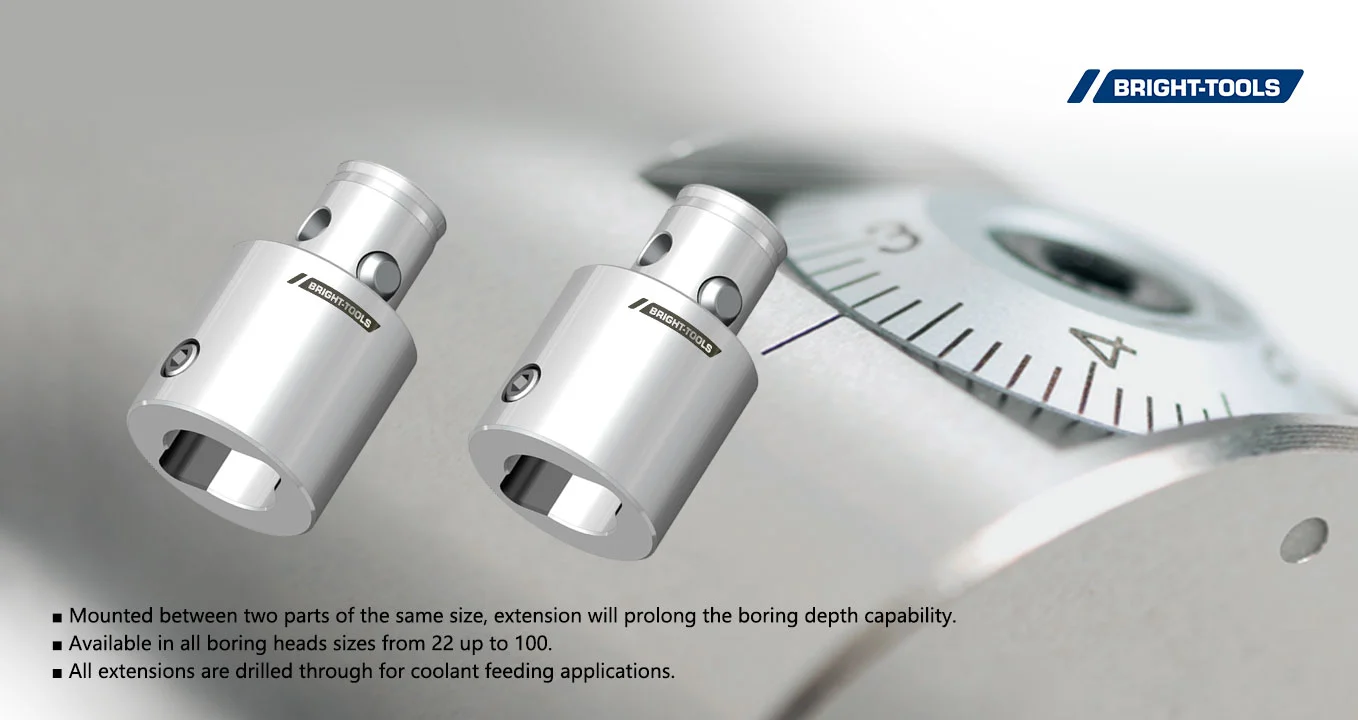

Boring Tool Holder Reducer
Reducers allow different boring heads to be used with the same toolholder/extension combination
To connect with small size boring head

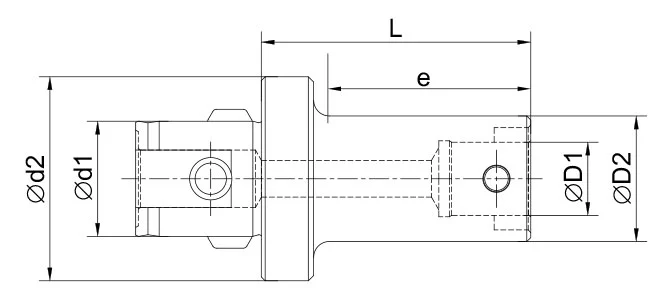

Size | CK No. | d1 | d2 | D1 | D2 | L | e |
CK2-1-36 | CK2 | 14 | 24 | 11 | 19 | 36 | 30 |
CK3-1-41 | CK3 | 18 | 31 | 11 | 19 | 41 | 30 |
CK3-2-37 | CK3 | 18 | 31 | 14 | 24 | 37 | 25 |
CK4-1-58 | CK4 | 22 | 39 | 11 | 19 | 58 | 40 |
CK4-2-50 | CK4 | 22 | 39 | 14 | 24 | 50 | 36 |
CK4-3-50 | CK4 | 22 | 39 | 18 | 31 | 50 | 37 |
CK5-1-60 | CK5 | 28 | 50 | 11 | 19 | 60 | 40 |
CK5-2-54 | CK5 | 28 | 50 | 14 | 24 | 54 | 35 |
CK5-2-74 | CK5 | 28 | 50 | 14 | 24 | 74 | 55 |
CK5-3-47 | CK5 | 28 | 50 | 18 | 31 | 47 | 29 |
CK5-3-72 | CK5 | 28 | 50 | 18 | 31 | 72 | 54 |
CK5-4-42 | CK5 | 28 | 50 | 22 | 39 | 42 | 25 |
CK5-4-67 | CK5 | 28 | 50 | 22 | 39 | 67 | 50 |
CK6-1-70 | CK6 | 36 | 64 | 11 | 19 | 70 | 40 |
CK6-2-63 | CK6 | 36 | 64 | 14 | 24 | 63 | 45 |
CK6-2-93 | CK6 | 36 | 64 | 14 | 24 | 93 | 75 |
CK6-3-56 | CK6 | 36 | 64 | 18 | 31 | 56 | 39 |
CK6-3-96 | CK6 | 36 | 64 | 18 | 31 | 96 | 79 |
CK6-4-51 | CK6 | 36 | 64 | 22 | 39 | 51 | 35 |
CK6-4-101 | CK6 | 36 | 64 | 22 | 39 | 101 | 85 |
CK6-5-41 | CK6 | 36 | 64 | 28 | 52 | 41 | 25 |
CK6-5-91 | CK6 | 36 | 64 | 28 | 52 | 91 | 75 |
BST-CK6 | CK6 | 50 | 95 | 36 | 64 | 100 | 60 |
